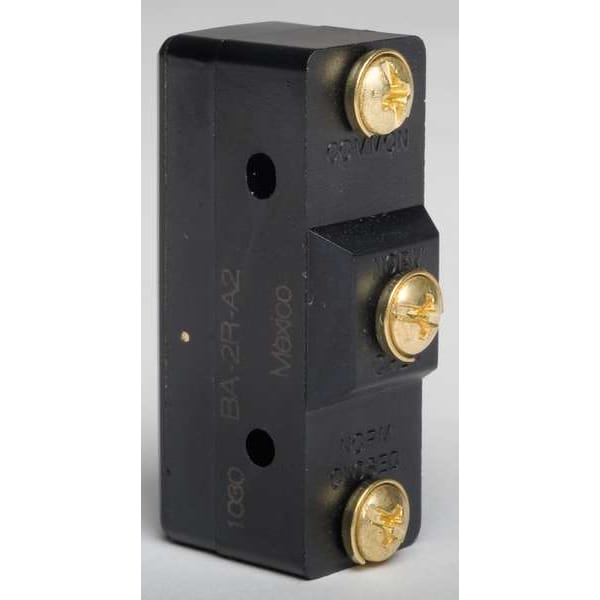

Interruptor de acción rápida industrial, pin, actuador de émbolo, SPDT, capacidad de contacto de 15A @ 480V CA
| Item | Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Plunger, Pin |
| AC Contact Rating - Snap Action Switch | 15 A @ 480 V |
| DC Contact Rating - Snap Action Switch | 15 A @ 240 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Height - Snap Action Switch | 0.95 in |
| Width - Snap Action Switch | 1.94 in |
| Depth - Snap Action Switch | 0.07 in |
| Contact Form | 1NO/1NC |
| Depth | 0.069 in |
| Mounting Dimension - Snap Action Switch | 1 in (Centers) |
| Max. Pretravel | 0.015 in |
| Housing Material | Phenolic |
| Terminal Type | Screw |
| Differential Travel | 0.0004 to 0.0020 in |
| Actuator Length | 1.94 in |
| Type of Actuator | Pin Plunger |
| Standards | CE, CSA, ENEC, UKCA, UL Listed |
| Voltage Rating | 125/250/480VAC |
| Operating Force | 9 to 13 oz |
| Electrical Connection - Snap Action Switch | Screw |
| Series | BZ |
| Operating Temp. Range | -67 Degrees to 257 Degrees F |
| Release Force | 4 ozf |
| Watertight - Snap Action Switch | No |
| Current Rating | 15a |
| Length | 1.94 in |
| Mounting Dimension | 1.00" Centers |
| Over Travel | 0.005 in |
| Height | 0.95 in |
| AC Contact Rating | 15 A @ 125 to 480 V |
| DC Contact Rating | 0.25 A @ 250 V, 0.5 A @ 125 V |
| Roller Diameter | Not Applicable |
| Roller Position | Not Applicable |
| Lever Actuator Length | Not Applicable |
| Operating Force - Minimum | 9 ozf |
| Body Width | 1.94 in |
| Pretravel | 0.015 in |
| Overall Depth | 0.07 in |
| Overall Width | 1.94 in |
| Differential Travel - Minimum | 0 in |
| Roller Material | Not Applicable |
| Operating Temperature - Minimum | -67 deg F |
| Body Height | 0.95 in |
| Body Material | Phenolic |
| Overtravel | 0.005 in |
| Body Depth | 0.07 in |
| Electrical Connection | Screw |
| Mounting Hole Diameter | 1/8 in |
| Actuator Style | Plunger |
| Center Mounting Hole Distance | 1 in |
| Differential Travel - Maximum | 0.002 in |
| Overall Height | 0.95 in |
| Roller Adjustability | Not Applicable |
| Operating Temperature - Maximum | 185 deg F |
| Operating Force - Maximum | 13 ozf |
| Package Quantity | 1 |
