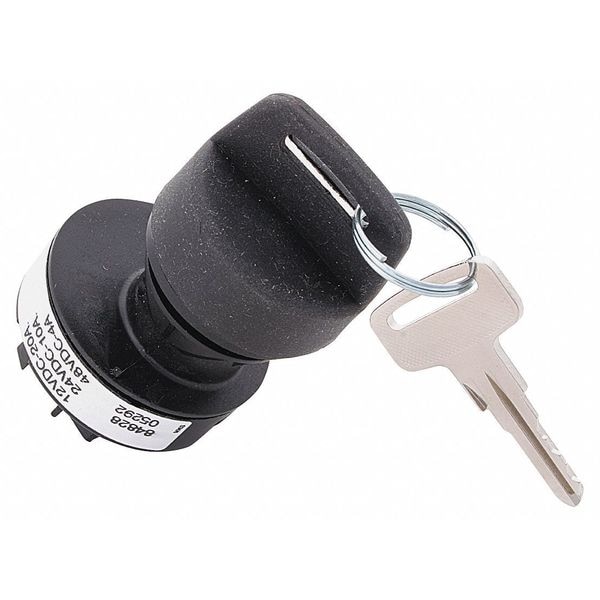

Interruptor de llave Encendido-Apagado-(Encendido) 20A 12V CC con terminales de conexión rápida
| Item | Key Switch |
|---|---|
| Stem Dia. and Thread Size | M22 x 1-1/2 in |
| DC Contact Rating | 10 A @ 24 V, 20 A @ 12 V, 4 A @ 48 V |
| Stem Length | Variable |
| Terminals | Screw |
| Switch Function | Off/On/Start |
| Mounting Hole | 0.87 in dia |
| Key Type | Flat |
| Number of Connections | 3 |
| Type | Panel Mount |
| For Use With | Screw |
| Series | Key and Ignition Switches |
| Key Code | 6,896 |
| Key Switch Type | Flat |
| Terminal Connection Type | Screw Terminals |
| Stem Diameter | 22 mm |
| Switch Function Configuration | On, Off/On |
| Switch Action | Maintained, Momentary |
| Stem Thread Size | 1 1/2 in |
| Panel Cutout Diameter | 22 mm |
| Number of Positions | 3 |
| Package Quantity | 1 |
