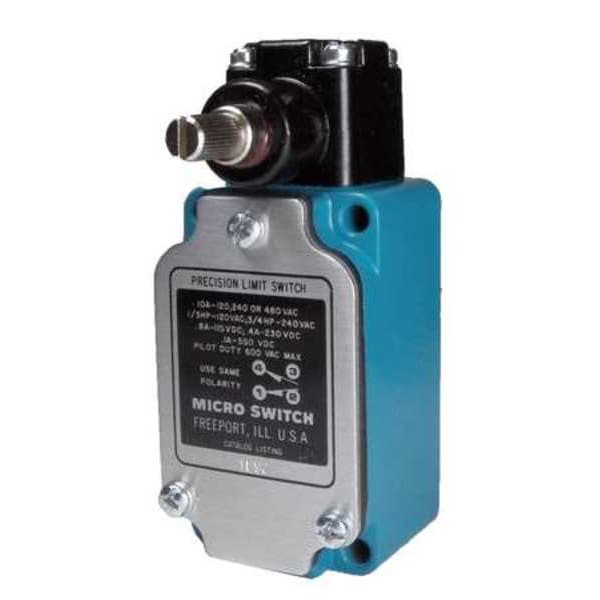

Interruptor de límite, sin palanca, rotativo, 1NC/1NO, 10A @ 480V CA, Ubicación del actuador: Lateral
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | No Lever, Rotary |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 10 A @ 480 V |
| DC Contact Rating - Limit Switch | Not Rated |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Mounting Hole Pattern - Limit Switch | 4 Hole (Rectangular) |
| Body Width - Limit Switch | 1.19 in |
| Boot Sealed Actuator - Limit Switch | No |
| Basic Actuator Style (Limit Switch) | Rotary |
| Electrical Connection | Screw Terminals |
| Operating Force | 3.0 in-lb |
| Amps | 10 |
| Series | LS |
| Mounting Hole - Limit Switch | (4) 0.19 in dia |
| AC Contact Rating | 10 A @ 480 V |
| Movement | Maintained, Rotary |
| NEMA Rating | 1, 13, 3, 4, 6 |
| Body Depth - Limit Switch | 1.13 in |
| Body Style (Limit Switch) | Miniature |
| Voltage Rating | 480VAC |
| Actuator Style (Limit Switch) | Rotary, No Lever |
| Contact Form | SPDT, 1NC, 1NO |
| Limit Switch Style | General Purpose Limit Switch |
| Actuator Location | Side |
| Number of Poles | 1 |
| IP Rating | No IP Rating |
| Mounting Hole Spacing - Limit Switch | 2.31 in x 1.19 in |
| Actuator Location (Limit Switch) | Side |
| Operating Temp. Range | -20 to 160 deg F |
| Contact Form - Limit Switch | 1NO, 1NC |
| Stem Thread - Limit Switch | No Stem |
| Travel | Differential Travel 4 Degrees , Maximum Pretravel 5 Degrees , Minimum Over Travel 30 Degrees |
| Height | 4.05 in |
| Actuator Style | Rotary Head, No Lever |
| Width | 1.19 in |
| Standards | CSA, UL |
| Wiring Entry | 1/2 in NPT |
| Body Height - Limit Switch | 2.7 in |
| Depth | 1.13 in |
| DC Contact Rating | Not Rated |
| Body Material | Zinc Die Cast |
| Boot Sealed Actuator (Limit Switch) | No |
| Arm Material | Not Applicable |
| Roller Width | Not Applicable |
| Actuator Length | Not Applicable |
| Roller Material | Not Applicable |
| Arm Width | Not Applicable |
| Differential Travel | 4 Degrees |
| Arm Depth | Not Applicable |
| Mounting Hole Horizontal Center to Center Distance | 60 mm |
| Mounting Hole Vertical Center to Center Distance | 30 mm |
| Body Height | 2.7 in |
| Operating Temperature - Maximum | 160 deg F |
| Lamp Type | Not Applicable |
| Operating Force - Minimum | Not Applicable |
| Body Depth | 1.13 in |
| Number of Mounting Holes | 4 |
| Mounting Hole Diameter | 0.19 in |
| Operating Temperature - Minimum | -20 deg F |
| Hazardous Location Specification | Not Applicable |
| Total Travel | Not Applicable |
| Operating Torque - Maximum | 3 in-lb |
| Roller Position | Not Applicable |
| Roller Diameter | Not Applicable |
| NEMA Enclosure Rating | 4, 13, 1, 6, 3 |
| Roller Adjustability | Not Applicable |
| Overall Depth | 2.3 in |
| Arm Length - Minimum | Not Applicable |
| Mounting Style | Surface |
| Body Configuration | Non Plug-In |
| Overall Width | 1.57 in |
| Arm Length - Maximum | Not Applicable |
| Plunger Adjustability | Not Applicable |
| Body Width | 1.57 in |
| Reset Travel | Not Applicable |
| Overtravel | 30 Degrees |
| Includes Actuator | No Actuator Included |
| Boot Sealed Actuator | No Boot Included |
| Operating Torque - Minimum | Not Applicable |
| Operating Force - Maximum | Not Applicable |
| Wireless Network Interface | Not Applicable |
| Action | Maintained |
| Pretravel | 5 Degrees |
| Arm Adjustability | Not Applicable |
| Package Quantity | 1 |
