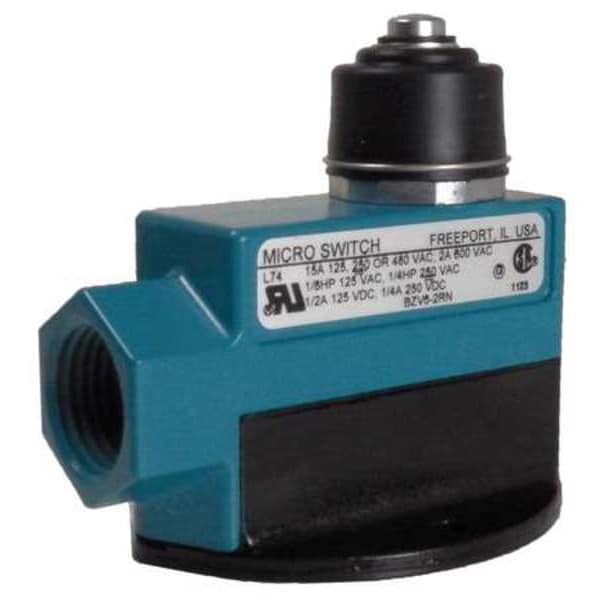

Interruptor de límite, émbolo, 1NC/1NO, 15A @ 600V CA, Ubicación del actuador: Superior
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 15 A @ 600 V |
| DC Contact Rating - Limit Switch | 2 A @ 250 V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Flange |
| Actuator Style | Plunger, Boot Sealed |
| Body Material | Zinc Die Cast |
| Actuator Location (Limit Switch) | Top |
| Actuator Location | Top |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Horizontal) |
| Electrical Connection | Screw Terminals |
| DC Contact Rating | 2 A @ 250 V |
| NEMA Rating | 1, 3, 4 |
| Series | BZ |
| Body Style (Limit Switch) | Miniature |
| Depth | 3.04 in |
| Number of Poles | 1 |
| Mounting Hole - Limit Switch | (2) 0.17 in dia |
| Height | 2-1/2 in |
| IP Rating | 66 |
| Actuator Length | 0.97 in |
| Width | 1 in |
| Boot Sealed Actuator (Limit Switch) | Yes |
| Voltage Rating | 600VAC/250VDC |
| Mounting Hole Spacing - Limit Switch | 1.63 in |
| Wiring Entry | 1/2 in NPT |
| Boot Sealed Actuator - Limit Switch | Yes |
| Body Height - Limit Switch | 1-3/4 in |
| Operating Force | 9 oz to 24 oz |
| Contact Form | SPDT, 1NC, 1NO |
| Body Width - Limit Switch | 3.04 in |
| Body Depth - Limit Switch | 1 in |
| Operating Temp. Range | -25 to 160 deg F |
| Travel | Differential Travel 0.0004 in to 0.0020 in, Maximum Pretravel 0.078 in, Minimum Over Travel 0.219 in |
| Limit Switch Style | General Purpose Limit Switch |
| Actuator Length - Limit Switch | 0.97 in |
| Stem Thread - Limit Switch | No Stem |
| Contact Form - Limit Switch | 1NO, 1NC |
| Basic Actuator Style (Limit Switch) | Plunger |
| Amps | 15 Ind./2 Ind./0.5 Res./0.25 Res |
| Actuator Style (Limit Switch) | Plunger |
| Standards | CSA, UL |
| AC Contact Rating | 15 A @ 600 V |
| Movement | Release Force 0.25 lb min |
| Arm Width | Not Applicable |
| Differential Travel | 0.002 in |
| Roller Width | Not Applicable |
| Arm Material | Not Applicable |
| Roller Material | Not Applicable |
| Arm Depth | Not Applicable |
| Action | Not Applicable |
| Arm Adjustability | Not Applicable |
| Mounting Hole Horizontal Center to Center Distance | 41 mm |
| Body Height | 1-3/4 in |
| Roller Adjustability | Not Applicable |
| Operating Temperature - Maximum | 160 deg F |
| Arm Length - Minimum | Not Applicable |
| NEMA Enclosure Rating | 4, 1, 3 |
| Overall Depth | 1 in |
| Body Depth | 1 in |
| Arm Length - Maximum | Not Applicable |
| Operating Force - Maximum | 24 ozf |
| Mounting Style | Flange |
| Includes Actuator | Not Applicable |
| Body Configuration | Non Plug-In |
| Reset Travel | Not Applicable |
| Number of Mounting Holes | 2 |
| Operating Force - Minimum | 9 ozf |
| Operating Temperature - Minimum | -25 deg F |
| Roller Position | Not Applicable |
| Wireless Network Interface | Not Applicable |
| Total Travel | Not Applicable |
| Boot Sealed Actuator | Boot Included |
| Lamp Type | Not Applicable |
| Overtravel | 0.22 in |
| Body Width | 3.04 in |
| Mounting Hole Vertical Center to Center Distance | Not Applicable |
| Overall Width | 3.04 in |
| Hazardous Location Specification | Not Applicable |
| Operating Torque - Minimum | Not Applicable |
| Mounting Hole Diameter | 0.17 in |
| Plunger Adjustability | Not Applicable |
| Roller Diameter | Not Applicable |
| Operating Torque - Maximum | Not Applicable |
| Directional Movement | Not Applicable |
| Pretravel | 0.08 in |
| Package Quantity | 1 |
