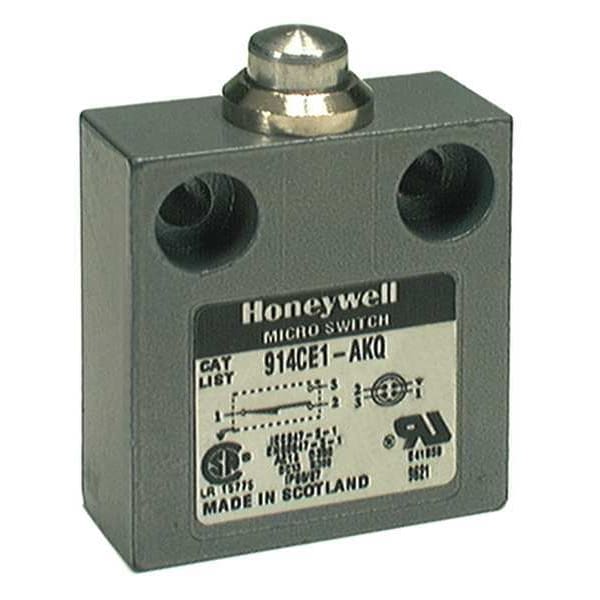

Interruptor de límite, vástago, 1NC/1NO, 5A @ 240V CA, Ubicación del actuador: Superior
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 5 A @ 240 V |
| DC Contact Rating - Limit Switch | Not Rated |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Actuator Length | 0.62 in |
| Actuator Location (Limit Switch) | Top |
| Contact Form - Limit Switch | 1NO, 1NC |
| IP Rating | 66, 67, 68 |
| Limit Switch Style | General Purpose Limit Switch |
| Body Material | Zinc Die Cast |
| Basic Actuator Style (Limit Switch) | Plunger |
| AC Contact Rating | 5 A @ 240 V |
| Voltage Rating | 240VAC |
| Standards | CE, CSA. IEC947-5-1, EN60947-5-1, UL |
| Body Style (Limit Switch) | Miniature |
| Body Width - Limit Switch | 1.58 in |
| Contact Form | SPDT, 1NC, 1NO |
| Number of Poles | 1 |
| Body Depth - Limit Switch | 0.63 in |
| Operating Force | 2.65 in-lb |
| Series | 914CE |
| Actuator Location | Top |
| Stem Thread - Limit Switch | No Stem |
| Actuator Length - Limit Switch | 0.62 in |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Horizontal) |
| Travel | Differential Travel 0.004 in, Maximum Pretravel 0.04 in +/- 0.02 in, Minimum Over Travel 0.118 in |
| Boot Sealed Actuator (Limit Switch) | No |
| Height | 1.93 in |
| DC Contact Rating | Not Rated |
| Electrical Connection | 6 ft Cable |
| Amps | 5 |
| Boot Sealed Actuator - Limit Switch | No |
| Mounting Hole Spacing - Limit Switch | 0.98 in |
| Movement | Release Force 0.99 lb max |
| Mounting Hole - Limit Switch | (2) 0.20 in dia |
| Actuator Style | Plunger |
| Width | 1.58 in |
| Operating Temp. Range | 35 to 160 deg F |
| Depth | 0.63 in |
| Actuator Style (Limit Switch) | Plunger |
| Body Height - Limit Switch | 1.73 in |
| NEMA Rating | 1, 13, 2, 3, 3R, 4, 6, 6P |
| Roller Width | Not Applicable |
| Roller Material | Not Applicable |
| Arm Width | Not Applicable |
| Arm Material | Not Applicable |
| Differential Travel | 0.004 in |
| Arm Depth | Not Applicable |
| Operating Temperature - Maximum | 221 deg F |
| Operating Torque - Maximum | 2.65 in-lb |
| Body Height | 1.73 in |
| Overtravel | 0.12 in |
| Wireless Network Interface | Not Applicable |
| Mounting Style | Surface |
| Operating Force - Maximum | Not Applicable |
| Body Configuration | Non Plug-In |
| Total Travel | Not Applicable |
| Operating Force - Minimum | Not Applicable |
| Body Width | 1.57 in |
| Action | Not Applicable |
| Number of Mounting Holes | 2 |
| Arm Length - Minimum | Not Applicable |
| Arm Adjustability | Not Applicable |
| Lamp Type | Not Applicable |
| Roller Diameter | Not Applicable |
| Roller Position | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| Pretravel | 0.04 in +/- 0.02 in |
| Arm Length - Maximum | Not Applicable |
| Plunger Adjustability | Not Applicable |
| NEMA Enclosure Rating | 4, 13, 1, 6, 6P, 3, 2, 3R |
| Reset Travel | Not Applicable |
| Mounting Hole Vertical Center to Center Distance | Not Applicable |
| Roller Adjustability | Not Applicable |
| Directional Movement | Not Applicable |
| Operating Torque - Minimum | Not Applicable |
| Operating Temperature - Minimum | 32 deg F |
| Boot Sealed Actuator | No Boot Included |
| Body Depth | 0.63 in |
| Includes Actuator | Not Applicable |
| Mounting Hole Horizontal Center to Center Distance | 25 mm |
| Mounting Hole Diameter | 0.2 in |
| Package Quantity | 1 |
