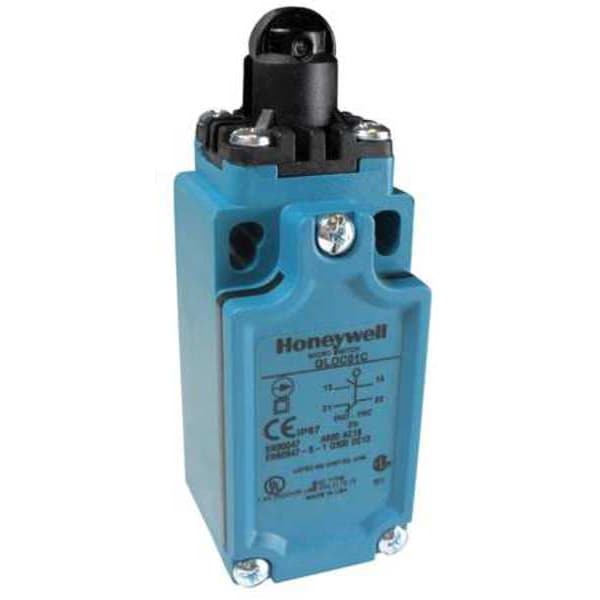

Interruptor de límite, émbolo, rodillo, 1NC/1NO, 10A @ 600V AC, Ubicación del actuador: Superior
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger, Roller |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 10 A @ 600 V |
| DC Contact Rating - Limit Switch | 10 A @ 250 V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Contact Form | SPDT, 1NC, 1NO |
| Mounting Hole Spacing - Limit Switch | 2.36 in x 1.18 in |
| Actuator Location (Limit Switch) | Top |
| Boot Sealed Actuator - Limit Switch | No |
| Body Style (Limit Switch) | Miniature |
| Body Depth - Limit Switch | 1.18 in |
| Number of Poles | 1 |
| IP Rating | 66, 67 |
| NEMA Rating | 1, 12, 13, 4X |
| Height | 2.16 in |
| AC Contact Rating | 10 A @ 600 V |
| Actuator Style | Plunger |
| Stem Thread - Limit Switch | No Stem |
| Electrical Connection | Screw Terminals |
| Amps | 10 |
| Roller Dia. | 12.4 mm |
| DC Contact Rating | 10 A @ 250 V |
| Boot Sealed Actuator (Limit Switch) | No |
| Actuator Style (Limit Switch) | Plunger, Roller |
| Body Material | plastic |
| Actuator Length | 1.89 in |
| Mounting Hole Pattern - Limit Switch | 4 Hole (Rectangular) |
| Actuator Location | Top |
| Roller Width | 4.7 mm |
| Limit Switch Style | General Purpose Limit Switch |
| Body Width - Limit Switch | 1.2 in |
| Voltage Rating | 600VAC/250VDC |
| Body Height - Limit Switch | 2.17 in |
| Width | 1.2 in |
| Mounting Hole - Limit Switch | (4) 0.21 in dia |
| Movement | Linear |
| Depth | 1.18 in |
| Contact Form - Limit Switch | 1NO, 1NC |
| Wiring Entry | 1/2 in NPT |
| Travel | Differential Travel 0.035 in, Maximum Pretravel 0.12 in, Minimum Over Travel 0.118 in |
| Operating Temp. Range | -40 to 185 deg F |
| Roller Material | Plastic |
| Operating Force | 3.6 in-lb |
| Standards | CCC. IEC 947-5-1, CE, CSA, EN60947-5-1, UL, UL508; UL746-C |
| Actuator Length - Limit Switch | 1.89 in |
| Basic Actuator Style (Limit Switch) | Plunger |
| Series | GLD/GLS |
| Differential Travel | 0.04 in |
| Arm Width | Not Applicable |
| Connection Type | Threaded Entry |
| Arm Material | Not Applicable |
| Arm Depth | Not Applicable |
| Connection Size | 1/2 in NPT |
| Operating Temperature - min | -40 deg F |
| Head/Operator | Push Roller |
| Differential-Travel - Travel To Reset | 0.035 in (0.89mm) DT |
| Head Action | Spring Return, Standard |
| Rating - NEMA | NEMA 4X |
| Over-Travel/Total-Travel | 0.118 in (3mm) OT |
| Operating Temperature - max | 185 deg F |
| Pre-Travel - Travel To Operate | 0.12 in (3mm) PT |
| Electrical Rating - VAC/DC | 10A 600Vac (Vdc Rated) |
| Current Rating - nominal | 10A |
| Poles/Contacts | SPDT 1NO 1NC |
| Action | Not Applicable |
| Body Configuration | Non Plug-In |
| Total Travel | Not Applicable |
| Overall Depth | 1.28 in |
| Arm Adjustability | Not Applicable |
| Operating Torque - Minimum | Not Applicable |
| Plunger Adjustability | Not Applicable |
| Number of Mounting Holes | 4 |
| Includes Actuator | Not Applicable |
| Operating Temperature - Maximum | 185 deg F |
| Reset Travel | Not Applicable |
| Body Height | 2.17 in |
| Mounting Hole Horizontal Center to Center Distance | 30 mm |
| Mounting Hole Diameter | 0.21 in |
| Overall Width | 1.2 in |
| Mounting Hole Vertical Center to Center Distance | 60 mm |
| Overtravel | 0.12 in |
| Arm Length - Minimum | Not Applicable |
| Body Depth | 1.28 in |
| Mounting Style | Surface |
| Directional Movement | Linear |
| Arm Length - Maximum | Not Applicable |
| Operating Temperature - Minimum | -40 deg F |
| Roller Adjustability | Not Applicable |
| Operating Force - Minimum | Not Applicable |
| Lamp Type | Not Applicable |
| Roller Diameter | 0.48 in |
| Operating Torque - Maximum | 3.6 in-lb |
| Boot Sealed Actuator | No Boot Included |
| Hazardous Location Specification | Not Applicable |
| Pretravel | 0.12 in |
| Body Width | 1.2 in |
| Operating Force - Maximum | Not Applicable |
| NEMA Enclosure Rating | 4, 13, 1, 12 |
| Roller Position | Not Applicable |
| Wireless Network Interface | Not Applicable |
| Package Quantity | 1 |
