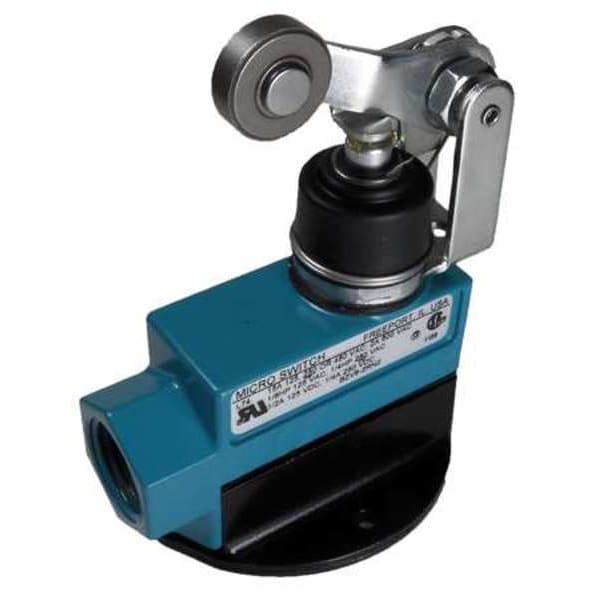

Interruptor de límite, émbolo, palanca de rodillo, 2NC/2NP, 10A @ 240V AC, ubicación del actuador: parte superior.
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger, Roller Lever |
| Contact Form- Switches | 2NC/2NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 10 A @ 240 V |
| DC Contact Rating - Limit Switch | 10 A @ 240 V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Flange |
| Movement | CW |
| Operating Force | 10 oz to 30 oz |
| Roller Material | Steel |
| Width | 1 in |
| Basic Actuator Style (Limit Switch) | Plunger |
| Roller Width | 1/4 in |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Horizontal) |
| Actuator Length - Limit Switch | 0.91 in |
| Mounting Hole Spacing - Limit Switch | 1.63 in |
| Mounting Hole - Limit Switch | (2) 0.17 in dia |
| Body Height - Limit Switch | 2.3 in |
| IP Rating | 66 |
| Depth | 3.04 in |
| Operating Temp. Range | -25 to 160 deg F |
| NEMA Rating | 1, 3, 4 |
| Stem Thread - Limit Switch | No Stem |
| Standards | CSA, UL |
| Arm Material | Steel |
| Boot Sealed Actuator - Limit Switch | Yes |
| Actuator Length | 0.91 in |
| Series | DTV6 |
| Voltage Rating | 240VAC/DC |
| Actuator Style (Limit Switch) | Plunger, Roller Lever |
| Limit Switch Style | General Purpose Limit Switch |
| Actuator Style | Horizontal Roller Lever, Boot Sealed |
| Travel | Differential Travel 0.165 in, Maximum Pretravel 0.266 in, Minimum Over Travel 0.219 in |
| Body Depth - Limit Switch | 3.04 in |
| Amps | 10 Ind/0.3A Res./0.15 Res. |
| Contact Form | 2NO, 2NC, DPDT |
| Actuator Location (Limit Switch) | Top |
| Boot Sealed Actuator (Limit Switch) | Yes |
| Electrical Connection | Screw Terminals |
| AC Contact Rating | 10 A @ 240 V |
| Body Material | Zinc Die Cast |
| Wiring Entry | 1/2 in NPT |
| Height | 2-1/2 in |
| Contact Form - Limit Switch | 2NO, 2NC |
| DC Contact Rating | 10 A @ 240 V |
| Body Width - Limit Switch | 1 in |
| Actuator Location | Top |
| Body Style (Limit Switch) | Miniature |
| Number of Poles | 2 |
| Roller Dia. | 3/4 in |
| Connection Type | Threaded Entry |
| Arm Width | Not Applicable |
| Differential Travel | 0.17 in |
| Arm Depth | Not Applicable |
| Operating Temperature - min | -25 deg F |
| Body Construction | Die Cast Zinc |
| Head/Operator | Top Push Roller Lever |
| Type | Limit Switch |
| Over-Travel/Total-Travel | 0.219 in (5.56mm) OT |
| Poles/Contacts | DPDT 2NO 2NC |
| Electrical Rating - VAC/DC | 10A 250VAC (VDC Rated) |
| Connection Size | 1/2 in NPT |
| Head Action | Spring Return, Standard |
| Operator Configuration | Adjustable |
| Rating - NEMA | NEMA 4 |
| Differential-Travel - Travel To Reset | 0.165 in (4.19mm) DT |
| Operating Temperature - max | 160 deg F |
| Pre-Travel - Travel To Operate | 0.266 in (6.76mm) PT |
| Current Rating - nominal | 10A |
| Reset Travel | Not Applicable |
| Arm Adjustability | Not Applicable |
| Body Depth | 3.04 in |
| Wireless Network Interface | Not Applicable |
| Arm Length - Maximum | Not Applicable |
| Operating Torque - Maximum | Not Applicable |
| Includes Actuator | Not Applicable |
| Operating Temperature - Maximum | 160 deg F |
| Arm Length - Minimum | Not Applicable |
| Boot Sealed Actuator | Boot Included |
| Action | Not Applicable |
| Body Width | 1 in |
| Mounting Hole Vertical Center to Center Distance | Not Applicable |
| Directional Movement | CW |
| Mounting Hole Horizontal Center to Center Distance | 41 mm |
| Roller Position | Not Applicable |
| Lamp Type | Not Applicable |
| Overtravel | 0.22 in |
| Body Configuration | Non Plug-In |
| Operating Force - Maximum | 30 ozf |
| Mounting Hole Diameter | 0.17 in |
| Plunger Adjustability | Not Applicable |
| Number of Mounting Holes | 2 |
| Operating Torque - Minimum | Not Applicable |
| Operating Temperature - Minimum | -25 deg F |
| Pretravel | 0.27 in |
| Operating Force - Minimum | 10 ozf |
| Roller Diameter | 3/4 in |
| Body Height | 2.3 in |
| NEMA Enclosure Rating | 4, 1, 3 |
| Hazardous Location Specification | Not Applicable |
| Total Travel | Not Applicable |
| Mounting Style | Flange |
| Roller Adjustability | Adjustable |
| Package Quantity | 1 |
