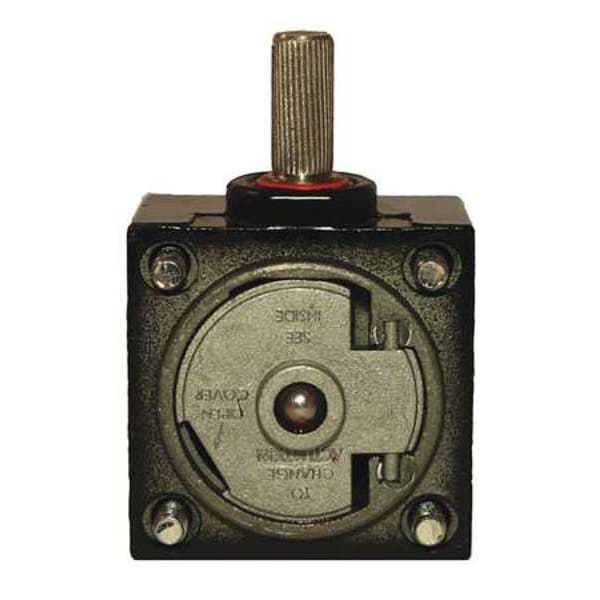

Reemplazo del cabezal giratorio del interruptor de límite para la serie LSR.
| Item | Limit Switch Head |
|---|---|
| Actuator Style | Rotary Lever |
| Actuator Location | Side |
| Actuator Length | Not Specified |
| Contact Form | Not Applicable |
| For Use With | HDLS LSR Switches |
| NEMA Rating | 1, 3, 4, 4X, 6, 6P |
| Movement | CCW, CW |
| Operating Force | Not Applicable |
| Amps | Not Applicable |
| Travel | Differential Travel 7 Degrees max, Overtravel 60 Degrees min, Pretravel 15 Degrees max |
| IP Rating | Not Rated |
| Operating Temp. | 30 to 250 deg F |
| Description/Special Features | Low Torque Head |
| Standards | RoHS |
| Voltage Rating | 600V AC / 250V DC |
| Arm Depth | Not Applicable |
| Arm Width | Not Applicable |
| Differential Travel | 7 Degrees |
| Features | Low Torque Head |
| Arm Length - Minimum | Not Applicable |
| Arm Length - Maximum | Not Applicable |
| Operating Temperature - Maximum | 250 deg F |
| Operating Torque | 1.7 in-lb |
| Compatible with Brand | Honeywell |
| Pretravel | 15 Degrees |
| Directional Movement | CCW, CW |
| Reset Travel | Not Applicable |
| Roller Diameter | Not Applicable |
| Total Travel | Not Applicable |
| Roller Material | Not Applicable |
| Roller Adjustability | Not Applicable |
| Operating Temperature - Minimum | 30 deg F |
| Action | Not Applicable |
| NEMA Enclosure Rating | 1, 3, 4, 4X, 6, 6P |
| Arm Material | Not Applicable |
| Overtravel | 60 Degrees |
| Roller Position | Not Applicable |
| Compatible with Series | HDLS, LSR |
| Series | HDLS |
| Roller Width | Not Applicable |
| Compatible with Manufacturer Model Number | 2B, 3K, 4L, 5A, 6B, 7L, 8A, LSR 1A |
| Arm Adjustability | Not Applicable |
| Plunger Adjustability | Not Applicable |
| Compatible Manufacturer Part Number | 2B, 3K, 4L, 5A, 6B, 7L, 8A, LSR 1A |
| Compatible Manufacturer Model Number | 2B, 3K, 4L, 5A, 6B, 7L, 8A, LSR 1A |
| Package Quantity | 1 |
