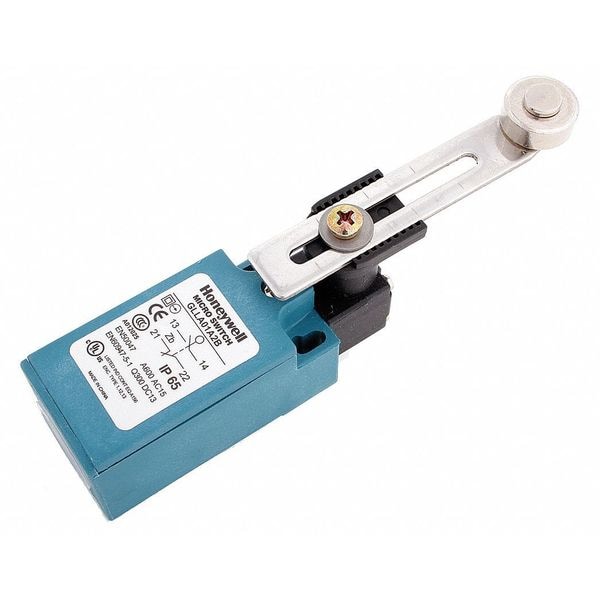

Interruptor de límite, palanca de rodillo, rotativo, 1 contacto normalmente cerrado/1 contacto normalmente abierto, 10 amperios a 300V CA, ubicación del actuador: lateral
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | Roller Lever, Rotary |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 10 A @ 300 V |
| DC Contact Rating - Limit Switch | 10 A @ 250 V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Horizontal) |
| NEMA Rating | 1, 12, 13 |
| Basic Actuator Style (Limit Switch) | Rotary |
| Wiring Entry | 1/2 in NPT |
| Boot Sealed Actuator - Limit Switch | No |
| Stem Thread - Limit Switch | No Stem |
| Body Width - Limit Switch | 1.2 in |
| Width | 1.2 in |
| Boot Sealed Actuator (Limit Switch) | No |
| Body Style (Limit Switch) | Miniature |
| Movement | CCW, CW |
| Electrical Connection | Screw Terminals |
| Actuator Length | 0.79" to 2.56" |
| Body Depth - Limit Switch | 1.22 in |
| Operating Force | 1.06 in-lb |
| Actuator Location (Limit Switch) | Side |
| DC Contact Rating | 10 A @ 250 V |
| Amps | 10 |
| Height | 1.22 in |
| Contact Form - Limit Switch | 1NO, 1NC |
| Operating Temp. Range | 14 to 176 deg F |
| Actuator Style (Limit Switch) | Rotary, Roller Lever |
| Voltage Rating | 300VAC/250VDC |
| Actuator Style | Rotary Lever Arm |
| Limit Switch Style | General Purpose Limit Switch |
| Travel | Differential Travel 18 Degrees , Maximum Pretravel 30 Degrees , Minimum Over Travel 40 Degrees |
| Mounting Hole - Limit Switch | (2) 0.16 in dia |
| Number of Poles | 1 |
| Actuator Location | Side |
| Series | GLL/GLS |
| Depth | 3.84 in |
| Contact Form | SPDT, 1NC, 1NO |
| IP Rating | 65 |
| Arm Material | Metal |
| Actuator Length - Limit Switch | 0.79 in to 2.56 in |
| Body Height - Limit Switch | 2.44 in |
| Body Material | plastic |
| Mounting Hole Spacing - Limit Switch | 0.87 in |
| AC Contact Rating | 10 A @ 300 V |
| Standards | CCC, CE, cULus |
| Arm Width | Not Applicable |
| Roller Width | Not Applicable |
| Connection Type | Threaded Entry |
| Roller Material | Not Applicable |
| Differential Travel | 18 Degrees |
| Arm Depth | Not Applicable |
| Current Rating - nominal | 10A |
| Poles/Contacts | SPDT 1NO 1NC |
| Electrical Rating - VAC/DC | 10A 300 Vac 250 Vdc |
| Head Action | Spring Return, Standard |
| Connection Size | 1/2-14 NPT |
| Head/Operator | Side Rotary Roller Lever |
| Rating - NEMA | NEMA 1 |
| Operating Temperature - max | 176 deg F |
| Over-Travel/Total-Travel | 40 deg OT |
| Operator Configuration | Adjustable |
| Operating Temperature - min | 14 deg F |
| Pre-Travel - Travel To Operate | 30 deg PT |
| Differential-Travel - Travel To Reset | 18 deg DT |
| Mounting Hole Horizontal Center to Center Distance | 22 mm |
| Operating Temperature - Maximum | 176 deg F |
| Arm Length - Maximum | Not Applicable |
| Operating Force - Minimum | Not Applicable |
| Operating Torque - Maximum | 1.06 in-lb |
| Operating Torque - Minimum | Not Applicable |
| Includes Actuator | Not Applicable |
| Roller Adjustability | Not Applicable |
| Body Width | 1.2 in |
| Pretravel | 30 Degrees |
| Arm Length - Minimum | Not Applicable |
| Roller Diameter | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| NEMA Enclosure Rating | 13, 1, 12 |
| Wireless Network Interface | Not Applicable |
| Plunger Adjustability | Not Applicable |
| Number of Mounting Holes | 2 |
| Total Travel | Not Applicable |
| Mounting Hole Vertical Center to Center Distance | Not Applicable |
| Mounting Style | Surface |
| Reset Travel | Not Applicable |
| Body Height | 2.44 in |
| Overtravel | 40 Degrees |
| Body Depth | 1.22 in |
| Arm Adjustability | Not Applicable |
| Boot Sealed Actuator | No Boot Included |
| Lamp Type | Not Applicable |
| Directional Movement | CW, CCW |
| Mounting Hole Diameter | 0.17 in |
| Roller Position | Not Applicable |
| Operating Force - Maximum | Not Applicable |
| Operating Temperature - Minimum | 14 deg F |
| Body Configuration | Non Plug-In |
| Action | Not Applicable |
| Package Quantity | 1 |
