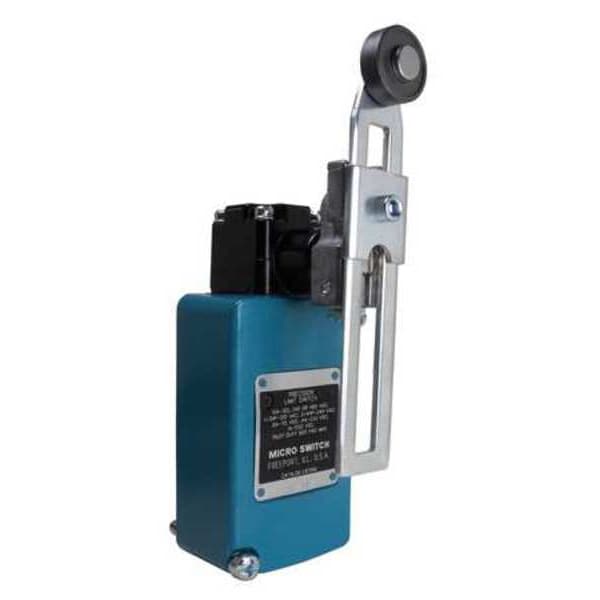

Interruptor de límite, palanca de rodillo, rotativo, 1NC/1NO, 10A @ 480V CA, Ubicación del actuador: Lateral
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | Roller Lever, Rotary |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 10 A @ 480 V |
| DC Contact Rating - Limit Switch | Not Rated |
| Body Style - Limit Switch | Standard |
| Mounting - Limit Switch | Surface |
| Standards | CSA, UL |
| Amps | 10 |
| Stem Thread - Limit Switch | No Stem |
| DC Contact Rating | Not Rated |
| Boot Sealed Actuator (Limit Switch) | No |
| Basic Actuator Style (Limit Switch) | Rotary |
| Mounting Hole - Limit Switch | (2) 0.22 in dia |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Diagonal) |
| Operating Force | 3.0 in-lb |
| Body Depth - Limit Switch | 1.6 in |
| NEMA Rating | 1, 13, 3, 4, 6 |
| Contact Form - Limit Switch | 1NO, 1NC |
| Body Style (Limit Switch) | Standard |
| Voltage Rating | 480VAC |
| Actuator Length - Limit Switch | 1.20 in to 3.50 in |
| Actuator Length | 1.20" to 3.50" |
| Actuator Location | Side |
| Boot Sealed Actuator - Limit Switch | No |
| Series | LS |
| Actuator Style (Limit Switch) | Rotary, Roller Lever |
| Actuator Location (Limit Switch) | Side |
| Mounting Hole Spacing - Limit Switch | 3.19 in x 1.48 in |
| Contact Form | 1NC, 1NO |
| IP Rating | No IP Rating |
| AC Contact Rating | 10 A @ 480 V |
| Body Height - Limit Switch | 3.05 in |
| Body Width - Limit Switch | 1.92 in |
| Travel | Differential Travel 12 Degrees max, Overtravel 30 Degrees min, Pretravel 20 Degrees max |
| Actuator Style | Rotary |
| Height | 3.05 in |
| Depth | 1.6 in |
| Movement | CCW, CW |
| Limit Switch Style | General Purpose Limit Switch |
| Electrical Connection | Screw Terminals |
| Roller Width | Not Applicable |
| Body Material | Metal |
| Roller Material | Not Applicable |
| Arm Material | Not Applicable |
| Differential Travel | 12 Degrees |
| Arm Width | Not Applicable |
| Arm Depth | Not Applicable |
| Rating - NEMA | NEMA 4,6 |
| Operating Temperature - min | -20 deg F |
| Operator Configuration | Adjustable |
| Poles/Contacts | SPDT 1NO 1NC |
| Type | General Purpose Plug-In Limit Switch Body |
| Head Action | Spring Return, Standard |
| Over-Travel/Total-Travel | 30 deg OT |
| Enclosure Listings | NEMA 1,3,4,6,13 |
| Head/Operator | Side Rotary Roller Lever |
| Differential-Travel - Travel To Reset | 12 deg DT |
| Operating Temperature - max | 160 deg F |
| Receptacle - not included | 18PA1 |
| Current Rating - nominal | 10A |
| Travel Direction | CCW, CW |
| Electrical Rating - VAC/DC | 10A 480VAC (VDC Rated) |
| Body Construction | Die Cast Zinc |
| Pre-Travel - Travel To Operate | 20 deg PT |
| Operating Force - Maximum | Not Applicable |
| Overtravel | 30 Degrees |
| Total Travel | Not Applicable |
| Boot Sealed Actuator | No Boot Included |
| Body Width | 1.92 in |
| Number of Mounting Holes | 2 |
| Directional Movement | CW, CCW |
| Mounting Hole Diameter | 0.22 in |
| Roller Position | Not Applicable |
| NEMA Enclosure Rating | 4, 13, 1, 6, 3 |
| Mounting Style | Surface |
| Operating Torque - Maximum | 3 in-lb |
| Operating Force - Minimum | Not Applicable |
| Body Height | 3.05 in |
| Pretravel | 20 Degrees |
| Operating Torque - Minimum | Not Applicable |
| Arm Length - Minimum | Not Applicable |
| Roller Diameter | Not Applicable |
| Body Configuration | Plug-In |
| Mounting Hole Horizontal Center to Center Distance | 38 mm |
| Hazardous Location Specification | Not Applicable |
| Wireless Network Interface | Not Applicable |
| Plunger Adjustability | Not Applicable |
| Body Depth | 1.6 in |
| Arm Length - Maximum | Not Applicable |
| Action | Not Applicable |
| Includes Actuator | Not Applicable |
| Lamp Type | Not Applicable |
| Arm Adjustability | Not Applicable |
| Mounting Hole Vertical Center to Center Distance | 81 mm |
| Roller Adjustability | Not Applicable |
| Reset Travel | Not Applicable |
| Package Quantity | 1 |
