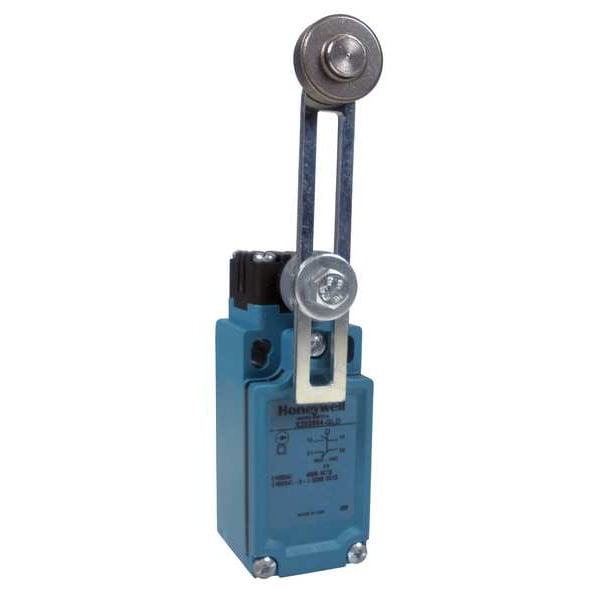

Interruptor de límite, palanca de rodillo, rotativo, 1 contacto normal cerrado/1 contacto normal abierto, 10 amperios a 600 voltios de corriente alterna, ubicación del actuador: lateral.
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | Roller Lever, Rotary |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 10 A @ 600 V |
| DC Contact Rating - Limit Switch | 10 A @ 250 V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Basic Actuator Style (Limit Switch) | Rotary |
| Movement | CCW, CW |
| Roller Material | Steel |
| Height | 2.16 in |
| Roller Width | 1/4 in |
| Actuator Location (Limit Switch) | Side |
| Body Width - Limit Switch | 1.2 in |
| Electrical Connection | Screw Terminals |
| Operating Force | 1.1 in-lb |
| Contact Form | SPDT, 1NC, 1NO |
| Roller Dia. | 3/4 in |
| DC Contact Rating | 10 A @ 250 V |
| AC Contact Rating | 10 A @ 600 V |
| Depth | 1.18 in |
| Actuator Location | Side |
| Number of Poles | 1 |
| Arm Material | Steel |
| Body Height - Limit Switch | 2.17 in |
| Body Material | plastic |
| Standards | CCC. IEC 947-5-1, CE, CSA, EN60947-5-1, UL, UL508; UL746-C |
| Boot Sealed Actuator (Limit Switch) | No |
| Limit Switch Style | General Purpose Limit Switch |
| Body Depth - Limit Switch | 1.18 in |
| Mounting Hole Spacing - Limit Switch | 2.36 in x 1.18 in |
| IP Rating | 66, 67 |
| Width | 1.2 in |
| Voltage Rating | 600VAC/250VDC |
| Wiring Entry | 1/2 in NPT |
| Travel | Differential Travel 11.5 Degrees , Maximum Pretravel 26 Degrees , Minimum Over Travel 49 Degrees |
| Series | GLD/GLS |
| Body Style (Limit Switch) | Miniature |
| Actuator Length | 1.34" to 3.11" |
| Actuator Style (Limit Switch) | Rotary, Roller Lever |
| Amps | 10 |
| NEMA Rating | 1, 12, 13, 4X |
| Mounting Hole - Limit Switch | (4) 0.21 in dia |
| Actuator Style | Rotary Lever Arm |
| Actuator Length - Limit Switch | 1.34 in to 3.11 in |
| Mounting Hole Pattern - Limit Switch | 4 Hole (Rectangular) |
| Stem Thread - Limit Switch | No Stem |
| Boot Sealed Actuator - Limit Switch | No |
| Contact Form - Limit Switch | 1NO, 1NC |
| Operating Temp. Range | -40 to 185 deg F |
| Arm Width | Not Applicable |
| Differential Travel | 11.5 Degrees |
| Arm Depth | Not Applicable |
| Boot Sealed Actuator | No Boot Included |
| Pretravel | 26 Degrees |
| Mounting Hole Vertical Center to Center Distance | 60 mm |
| Roller Position | Not Applicable |
| Operating Torque - Maximum | 1.1 in-lb |
| Operating Temperature - Minimum | -40 deg F |
| Total Travel | Not Applicable |
| Wireless Network Interface | Not Applicable |
| Includes Actuator | Not Applicable |
| Arm Length - Minimum | Not Applicable |
| Operating Torque - Minimum | Not Applicable |
| Body Height | 2.17 in |
| Hazardous Location Specification | Not Applicable |
| Overall Width | 1.2 in |
| Roller Diameter | 0.74 in |
| Action | Not Applicable |
| Mounting Style | Surface |
| Overtravel | 49 Degrees |
| Body Depth | 1.28 in |
| Roller Adjustability | Not Applicable |
| Reset Travel | Not Applicable |
| Body Configuration | Non Plug-In |
| Mounting Hole Horizontal Center to Center Distance | 30 mm |
| Arm Length - Maximum | Not Applicable |
| Plunger Adjustability | Not Applicable |
| Operating Temperature - Maximum | 185 deg F |
| Arm Adjustability | Not Applicable |
| Lamp Type | Not Applicable |
| Mounting Hole Diameter | 0.21 in |
| Directional Movement | CW, CCW |
| Body Width | 1.2 in |
| NEMA Enclosure Rating | 4, 13, 1, 12 |
| Overall Depth | 1.28 in |
| Operating Force - Maximum | Not Applicable |
| Number of Mounting Holes | 4 |
| Operating Force - Minimum | Not Applicable |
| Package Quantity | 1 |
