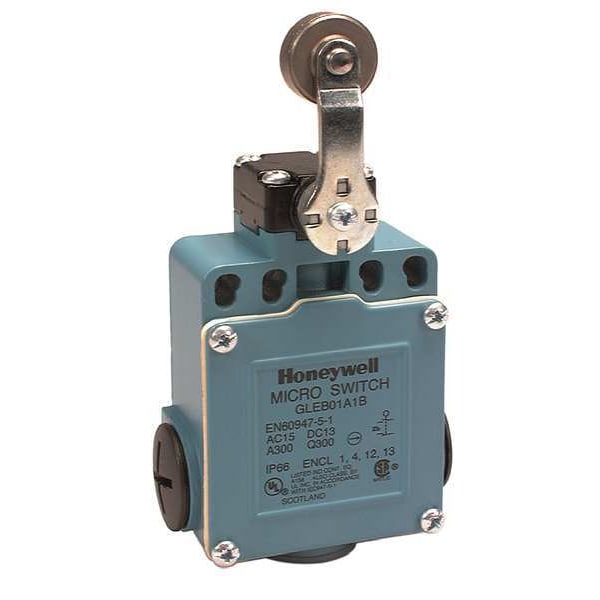

Interruptor de límite, palanca de rodillo, rotativo, 2NC/2NO, 10A a 300V AC, ubicación del actuador: lateral.
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | Roller Lever, Rotary |
| Contact Form- Switches | 2NC/2NO |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 10 A @ 300 V |
| DC Contact Rating - Limit Switch | 10 A @ 250 V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Standards | CCC. IEC 947-5-1, CE, CSA, EN60947-5-1, UL, UL508 |
| Mounting Hole Spacing - Limit Switch | 0,87 in, 1.65 in |
| Boot Sealed Actuator - Limit Switch | No |
| Travel | Differential Travel 8 Degrees , Maximum Pretravel 26 Degrees , Minimum Over Travel 49 Degrees , Operating Position 26 Degrees |
| Actuator Location (Limit Switch) | Side |
| Roller Width | 1/4 in |
| Width | 2.56 in |
| DC Contact Rating | 10 A @ 250 V |
| Roller Dia. | 3/4 in |
| Body Style (Limit Switch) | Miniature |
| Limit Switch Style | General Purpose Limit Switch |
| NEMA Rating | 1, 12, 13, 4 |
| Body Depth - Limit Switch | 1.18 in |
| Mounting Hole - Limit Switch | (4) 0.12 in dia |
| Body Height - Limit Switch | 2.37 in |
| Actuator Length | 1.83 in |
| Height | 2.37 in |
| Actuator Style | Rotary Lever Arm |
| AC Contact Rating | 10 A @ 300 V |
| Contact Form - Limit Switch | 2NO, 2NC |
| Series | GLE/GLS |
| Actuator Location | Side |
| Actuator Length - Limit Switch | 1.83 in |
| Boot Sealed Actuator (Limit Switch) | No |
| Arm Material | Steel |
| Wiring Entry | 1/2 in NPT |
| Operating Force | 1.5 in-lb |
| Movement | CCW, CW |
| Body Width - Limit Switch | 2.56 in |
| Basic Actuator Style (Limit Switch) | Rotary |
| Stem Thread - Limit Switch | No Stem |
| Actuator Style (Limit Switch) | Rotary, Roller Lever |
| Body Material | Zinc Die Cast |
| IP Rating | 67 |
| Amps | 10 |
| Depth | 1.18 in |
| Number of Poles | 2 |
| Roller Material | Steel |
| Mounting Hole Pattern - Limit Switch | 4 Hole (Inline) |
| Operating Temp. Range | -40 to 185 deg F |
| Electrical Connection | Screw Terminals |
| Contact Form | 2NO, 2NC, DPDT |
| Voltage Rating | 300VAC/250VDC |
| Arm Width | Not Applicable |
| Differential Travel | 8 Degrees |
| Arm Depth | Not Applicable |
| Arm Length - Maximum | Not Applicable |
| Mounting Style | Surface |
| Arm Length - Minimum | Not Applicable |
| Pretravel | 26 Degrees |
| Operating Temperature - Maximum | 185 deg F |
| Roller Position | Not Applicable |
| Boot Sealed Actuator | No Boot Included |
| Mounting Hole Vertical Center to Center Distance | 22 mm |
| Number of Mounting Holes | 4 |
| Roller Diameter | 3/4 in |
| Wireless Network Interface | Not Applicable |
| Body Configuration | Non Plug-In |
| NEMA Enclosure Rating | 4, 13, 1, 12 |
| Operating Temperature - Minimum | -40 deg F |
| Mounting Hole Diameter | 0.12 in |
| Arm Adjustability | Not Applicable |
| Body Height | 2.37 in |
| Lamp Type | Not Applicable |
| Operating Torque - Minimum | Not Applicable |
| Body Depth | 1.18 in |
| Body Width | 2.56 in |
| Mounting Hole Horizontal Center to Center Distance | 42 mm |
| Plunger Adjustability | Not Applicable |
| Includes Actuator | Not Applicable |
| Directional Movement | CW, CCW |
| Operating Force - Maximum | Not Applicable |
| Operating Force - Minimum | Not Applicable |
| Action | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| Reset Travel | Not Applicable |
| Operating Torque - Maximum | 1.6 in-lb |
| Total Travel | Not Applicable |
| Roller Adjustability | Not Applicable |
| Overtravel | 49 Degrees |
| Package Quantity | 1 |
