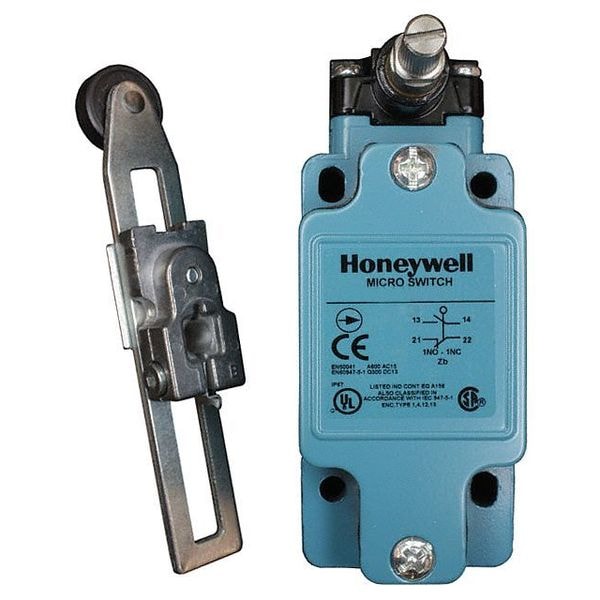

Interruptor de límite, palanca de rodillo, rotativo, 2NC/2NO, 10A @ 600V CA, Ubicación del actuador: Lateral.
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | Roller Lever, Rotary |
| Contact Form- Switches | 2NC/2NO |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 10 A @ 600 V |
| DC Contact Rating - Limit Switch | 10 A @ 250 V |
| Body Style - Limit Switch | Standard |
| Mounting - Limit Switch | Surface |
| Body Height - Limit Switch | 3.23 in |
| Width | 1.65 in |
| Depth | 1.65 in |
| Movement | CCW, CW |
| Arm Material | Steel |
| Body Style (Limit Switch) | Standard |
| Actuator Location (Limit Switch) | Side |
| Contact Form | 2NO, 2NC, DPDT |
| Roller Dia. | 3/4 in |
| Actuator Style | Rotary Lever Arm |
| Height | 3.23 in |
| Standards | CCC. IEC 947-5-1, CE, CSA, EN60947-5-1, UL, UL508 |
| Limit Switch Style | General Purpose Limit Switch |
| Number of Poles | 2 |
| Boot Sealed Actuator (Limit Switch) | No |
| Amps | 10 |
| Basic Actuator Style (Limit Switch) | Rotary |
| Travel | Differential Travel 12 Degrees , Maximum Pretravel 26 Degrees , Minimum Over Travel 59 Degrees , Operating Position 26 Degrees |
| Mounting Hole - Limit Switch | (4) 0.21 in dia |
| Body Depth - Limit Switch | 1.65 in |
| DC Contact Rating | 10 A @ 250 V |
| Roller Width | 1/4 in |
| Voltage Rating | 600VAC/250VDC |
| Body Width - Limit Switch | 1.65 in |
| Actuator Length | 1.50" to 3.60" |
| Operating Force | 2.9 in-lb |
| AC Contact Rating | 10 A @ 600 V |
| Series | GLA/GLS |
| Boot Sealed Actuator - Limit Switch | No |
| Wiring Entry | 1/2 in NPT |
| IP Rating | 67 |
| Actuator Style (Limit Switch) | Rotary, Roller Lever |
| Mounting Hole Pattern - Limit Switch | 4 Hole (Rectangular) |
| Operating Temp. Range | -13 to 185 deg F |
| Actuator Location | Side |
| Roller Material | Nylon |
| Stem Thread - Limit Switch | No Stem |
| Contact Form - Limit Switch | 2NO, 2NC |
| NEMA Rating | 1, 12, 13, 4 |
| Electrical Connection | Screw Terminals |
| Body Material | Zinc Die Cast |
| Mounting Hole Spacing - Limit Switch | 2.36 in x 1.18 in |
| Actuator Length - Limit Switch | 1.50 in to 3.60 in |
| Arm Width | Not Applicable |
| Connection Type | Threaded Entry |
| Differential Travel | 8 Degrees |
| Arm Depth | Not Applicable |
| Operating Temperature - min | -13 deg F |
| Over-Travel/Total-Travel | 59 deg OT |
| Connection Size | 1/2 in NPT |
| Head/Operator | Side Rotary Roller Lever |
| Travel Direction | CCW, CW |
| Operating Temperature - max | 185 deg F |
| Head Action | Spring Return, Standard |
| Rating - NEMA | NEMA 4 |
| Current Rating - nominal | 10A |
| Body Construction | Die Cast Zinc |
| Pre-Travel - Travel To Operate | 26 deg PT |
| Poles/Contacts | DPDT 2NO 2NC |
| Differential-Travel - Travel To Reset | 12 deg DT |
| Electrical Rating - VAC/DC | 10A 600Vac (Vdc Rated) |
| Operator Configuration | Adjustable |
| Arm Adjustability | Not Applicable |
| Mounting Style | Surface |
| Body Configuration | Non Plug-In |
| Arm Length - Maximum | Not Applicable |
| Reset Travel | Not Applicable |
| Roller Position | Not Applicable |
| Body Width | 1.65 in |
| Roller Adjustability | Not Applicable |
| Mounting Hole Horizontal Center to Center Distance | 30 mm |
| Action | Not Applicable |
| Mounting Hole Diameter | 0.21 in |
| Boot Sealed Actuator | No Boot Included |
| Operating Temperature - Maximum | 185 deg F |
| Operating Torque - Minimum | Not Applicable |
| Lamp Type | Not Applicable |
| Operating Torque - Maximum | 2.9 in-lb |
| Body Depth | 1.65 in |
| Directional Movement | CW, CCW |
| Operating Force - Maximum | Not Applicable |
| Mounting Hole Vertical Center to Center Distance | 60 mm |
| Includes Actuator | Not Applicable |
| Overtravel | 59 Degrees |
| Pretravel | 26 Degrees |
| Operating Force - Minimum | Not Applicable |
| Number of Mounting Holes | 4 |
| Total Travel | Not Applicable |
| Body Height | 3.23 in |
| Plunger Adjustability | Not Applicable |
| Wireless Network Interface | Not Applicable |
| NEMA Enclosure Rating | 4, 13, 1, 12 |
| Operating Temperature - Minimum | -13 deg F |
| Roller Diameter | 3/4 in |
| Arm Length - Minimum | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| Package Quantity | 1 |
