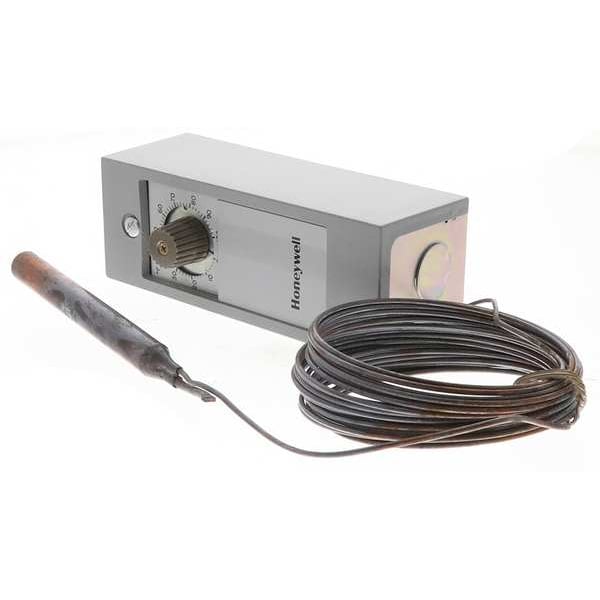

Line Volt Mechanical Tstat, Open/Close on Rise, 120 to 240V AC
| Switch Action | Open/Close on Rise |
|---|---|
| Voltage | 120 to 240V AC |
| Sensor Type | Hydraulic Capillary Bulb (Copper) |
| Differential | 3 Degrees to 10 Degrees F |
| Switch Type | SPDT |
| Color | Gray |
| Width | 2 in |
| Height | 5-5/8 in |
| Full Load Amps @ 120VAC | 15 A |
| Depth | 2-5/8 in |
| Sensing Bulb Dia. | 1/2 in |
| Includes | Duct Bulb Holder |
| Sensing Bulb Length | 4-3/16 in |
| Item | Line Volt Mechanical Tstat |
| Inductive Amps @ 120V | 8 A |
| Standards | CSA Certified, UL Listed |
| Locked Rotor Amps @ 240V | 30.6 A |
| Full Load Amps @ 240VAC | 5.1 A |
| Number of Switches | 1 |
| Capillary Length | 20 ft |
| Locked Rotor Amps @ 120V | 48 A |
| Inductive Amps @ 240V | 5 A |
| Enclosure Type | Impact Resistant Norel |
| Overall Height | 5-5/8 in |
| For Use With | Regulating Temperature of Air or Liquids in Ducts, Pipes, Tanks or Boilers |
| Mounting | Any Position Outside the Sensing Area, 3 Slotted Holes In Back Of Case |
| Features | Controller with Bulb Holder |
| Overall Width | 2 in |
| Control Type | Exposed Dial |
| Number of Relay Outputs | 1 |
| Application | Heat and Cool |
| Thermostat Type | Indoor Single-Stage Controls |
| Number of Heating Stages | 0 |
| Compatible System Type | Boilers, Ducts, Pipes, Tanks |
| Minimum Operating Temperature | 55 deg F |
| Switch Type/Action | Open, Close, SPDT on Rise |
| Operating Temperature Range | 55 to 125 deg F |
| Number of Cooling Stages | 0 |
| Pilot Duty Rating | 125 VA @ 277V AC |
| Enclosure Material | Steel |
| Frequency | 50 Hz, 60 Hz |
| Contact Rating | 120 to 240V AC |
| Electrical Connection Type | Hardwired |
| Number of Poles | 1 |
| Maximum Operating Temperature | 125 deg F |
| Overall Depth | 2-5/8 in |
| Mounting Direction | Vertical, Horizontal |
| Full Load Amps @ 240V AC | 5.1 A |
| Minimum Control Temperature | 0 deg F |
| Temperature Scale | Fahrenheit, Celsius |
| Enclosure Color | Gray |
| Bulb Length | 4-1/4 in |
| Sensor Location | Remote |
| Changeover Type | Manual |
| Bulb Diameter | 1/2 in |
| Temperature Control Range | 0 to 100 deg F |
| Full Load Amps @ 120V AC | 8 A |
| Differential Type | Adjustable |
| Maximum Control Temperature | 100 deg F |
| Temperature Differential | 3 Degrees to 10 Degrees F |
| Capillary Length/Bulb Diameter | 20 ft Capillary, 4 3/16 in x 1/2 in Bulb |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
