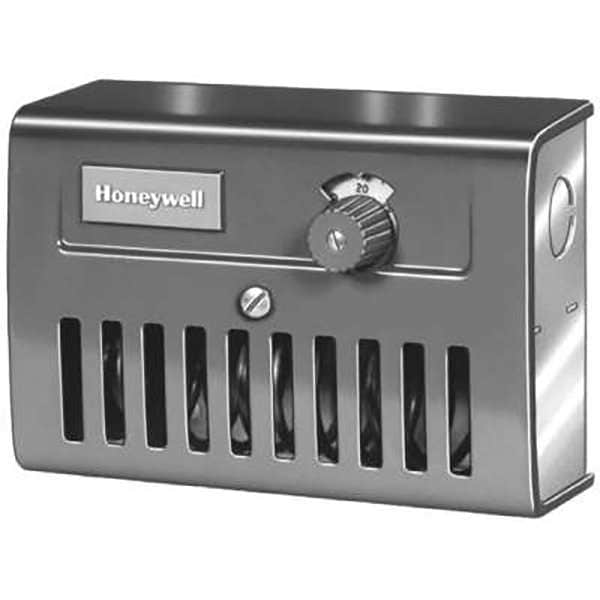

Line Volt Mechanical Tstat, Open/Close on Rise, -30 Degrees to 100 Degrees F, SPDT, 24 to 277V AC
| Switch Action | Open/Close on Rise |
|---|---|
| Voltage | 24 to 277V AC |
| Sensor Type | Hydraulic Air Coil |
| Differential | 5 Degrees F |
| Thermostat Control Range | -30 to 100 deg F |
| Switch Type | SPDT |
| Color | Gray |
| Width | 6-1/16 in |
| Height | 4-5/16 in |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Locked Rotor Amps @ 120V | 96 A |
| Thermostat Heating/Cooling | Heating, Cooling |
| Inductive Amps @ 120V | 16 A |
| Remote Sensing Capability | No |
| Full Load Amps @ 240VAC | 8 A |
| Thermostat Programmable | No |
| Inductive Amps @ 240V | 8 A |
| Number of Switches | 1 |
| Full Load Amps @ 120VAC | 15 A |
| Contact Rating Resistive @ 120V | 10 A |
| Thermostat Switch Type | SPDT |
| Contact Rating Resistive @ 240V | 5 A |
| Standards | CSA Certified, UL Listed |
| Remote Sensing Bulb Included | No |
| Thermostat Voltage | 24 to 240 V AC |
| Depth | 2-7/8 in |
| Control Range | -30 to 100 deg F |
| Item | Line Volt Mechanical Tstat |
| Locked Rotor Amps @ 240V | 8 A |
| Number of Relay Outputs | 1 |
| Application | Heat or Cool |
| Inductive Amps @ 208V | 8 A |
| Thermostat Type | Line Voltage |
| Frequency | 50 Hz, 60 Hz |
| Switch Type/Action | Open, Close, SPDT on Rise |
| Temperature Differential | 5 Degrees F |
| Overall Width | 6-1/16 in |
| Number of Cooling Stages | 1 |
| Temperature Scale | Fahrenheit |
| Enclosure Color | Gray |
| Full Load Amps @ 120V AC | 15 A |
| Full Load Amps @ 240V AC | 8 A |
| Number of Poles | 1 |
| Maximum Control Temperature | 100 deg F |
| Minimum Control Temperature | -30 deg F |
| Enclosure NEMA Rating | 1 |
| Overall Height | 4-5/16 in |
| Temperature Control Range | -30 to 100 deg F |
| Number of Heating Stages | 1 |
| Differential Type | Fixed |
| Enclosure Material | Steel |
| Overall Depth | 2-7/8 in |
| Contact Type | Snap Action |
| Stages | 1H, 1C |
| Maximum Operating Temperature | 125 deg F |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
