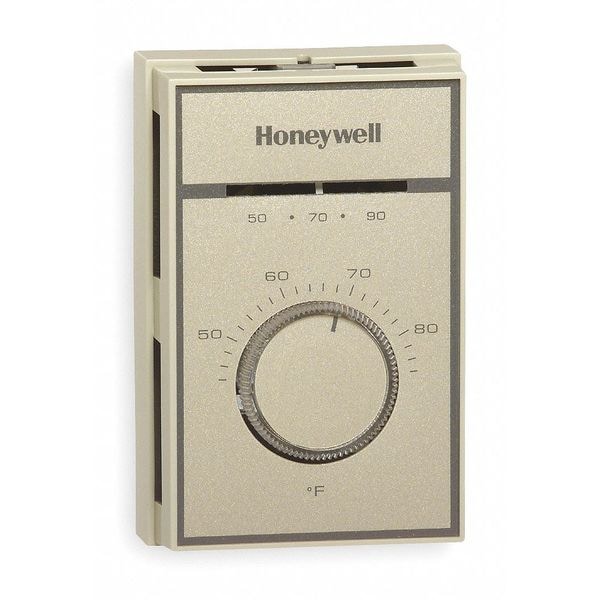

Line Volt Mechanical Tstat, Open/Close on Rise, Standard Vertical or Horizontal Outlet Box, SPDT
| Switch Action | Open/Close on Rise |
|---|---|
| Voltage | 120 to 277V AC |
| Sensor Type | Vapor-Filled Dual-Diaphragm |
| Differential | 2 Degrees F |
| Display Type | Analog |
| Thermostat Control Range | 44 to 86 deg F |
| Mounting Location | Vertical |
| Switch Type | SPDT |
| Color | Beige |
| Width | 2-15/16 in |
| Height | 4-1/2 in |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Remote Sensing Bulb Included | No |
| Full Load Amps @ 120VAC | 15 A |
| Includes | High Accuracy Dual Diaphragm Sensor, Horizontal Scaleplate with No Thermometer, Locking Screws, Vertical Scaleplate with Thermometer, Wallplate |
| Pilot Duty Contacts (VA) | 125 VA |
| Locked Rotor Amps @ 240V | 29.4 A |
| Remote Sensing Capability | No |
| Mounting Type | Vertical or Horizontal |
| Number of Switches | 1 |
| Standards | CSA Certified, UL Listed |
| Thermostat Switch Type | SPDT |
| Item | Line Volt Mechanical Tstat |
| Contact Rating Resistive @ 120V | 22 A |
| Thermostat Programmable | No |
| Thermostat Voltage | 120 to 277 V AC |
| Thermostat Heating/Cooling | Heating, Cooling |
| Depth | 1-1/2 in |
| Locked Rotor Amps @ 120V | 58.8 A |
| Control Range | 44 to 86 deg F |
| Contact Rating Resistive @ 240V | 22 A |
| Full Load Amps @ 240VAC | 4 A |
| Contact Rating Resistive @ 277V | 19 A |
| Agency Compliance | UL File No. E47434, Guide No. XAPX., CSA Certified, File No. LR1322 |
| Application | Heat and Cool |
| Mounting | Standard 2 x 4" Vertical or Horizontal Box |
| Thermostat Type | Line Voltage |
| Voltage Range | 120 to 277 VAC |
| Display | Analog |
| Features | Light Duty |
| Type | Heating/Cooling |
| Control Type | Exposed Dial |
| Full Load Amps @ 120V AC | 9.8 A |
| Number of Poles | 1 |
| Number of Heating Stages | 1 |
| Overall Width | 2-13/16 in |
| Electrical Connection Type | Hardwired |
| Pilot Duty Rating | 125 VA |
| Contact Rating | 120 to 277V AC |
| Housing Type | Standard Housing |
| Frequency | 50 Hz, 60 Hz |
| Temperature Scale | Fahrenheit |
| Changeover Type | Automatic |
| System Settings | Auto |
| Full Load Amps @ 240V AC | 4.9 A |
| Resistive Amps @ 208V AC | 22 A |
| Lead Length | 6 in |
| Differential Type | Fixed |
| Enclosure Color | Beige |
| Housing Material | Plastic |
| Temperature Control Range | 44 to 86 deg F |
| Overall Depth | 1-13/16 in |
| Includes Positive Off | No |
| Compatible System Type | Electric Heating, Fan Coil Units |
| Fan Settings | No Fan Setting |
| Overall Height | 4-9/16 in |
| Minimum Control Temperature | 44 deg F |
| Housing Color | Beige |
| Temperature Differential | 2 Degrees F |
| Mounting Direction | Vertical |
| Number of Cooling Stages | 1 |
| Switch Type/Action | Open, Close, SPDT on Rise |
| Maximum Control Temperature | 86 deg F |
| Stages | 1H, 1C |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
