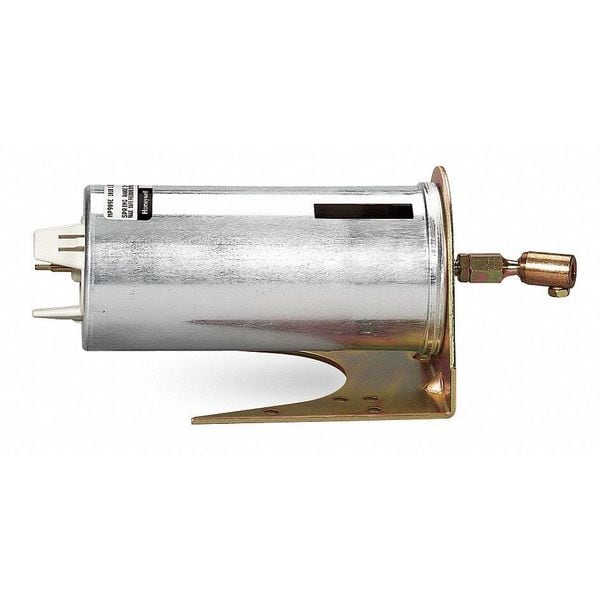

Linear Pneumatic Actuator, 3 to 13 psi
| Item | Pneumatic Damper Actuator |
|---|---|
| Operating PSI Range | 3 to 13 |
| Max. Air Pressure | 29 psi |
| Stroke | 4 in |
| Nominal Spring Range | 3 to 13 psi |
| For Use With | Small Dampers and High Velocity Mixing Boxes |
| Width | 6-3/8 in |
| Net Force Exerted @ 18 PSI | 3.3 lb |
| Provides | Operating Ranges for Independent Operation or Sequence Operation with Other Actuators |
| Height | 6-7/8 in |
| Net Force Exerted @ 0 PSI | 19.8 lb |
| Length | 17 in |
| Application | Dampers |
| Air Connection Type | Barbed Hose |
| Force at 0 psi | 19.8 lbf |
| Air Connection Gender | Male |
| Spring Range Minimum | 3 psi |
| Operating Temperature - Maximum | 160 deg F |
| Operating Temperature - Minimum | -28 deg F |
| Valve Action | Normally Open |
| Control Pressure - Minimum | 3 psi |
| Diaphragm Material | Neoprene |
| Installation Orientation | Versatile |
| Actuator Type | Linear |
| For Media | Air |
| Control Pressure - Maximum | 29 psi |
| Overall Length | 17 in |
| Normal Rotation | Not Applicable |
| Actuator Connection | Ball Joint Connector |
| Overall Depth | 6-7/8 in |
| Spring Range Maximum | 13 psi |
| Mounting Hardware Included | Ball Joints, Fixed External Mounting Bracket |
| Force at 20 psi | 66 lbf |
| Overall Width | 6-5/8 in |
| Fire/Smoke Application | UL Recognized Components for Fire/Smoke Applications |
| Air Connection Size | 3/16 in, 1/4 in |
| Includes Positioner | Positioner Not Included |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
