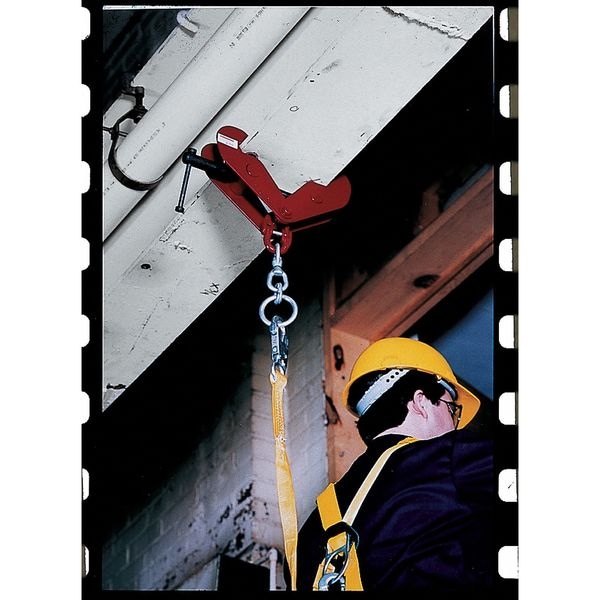

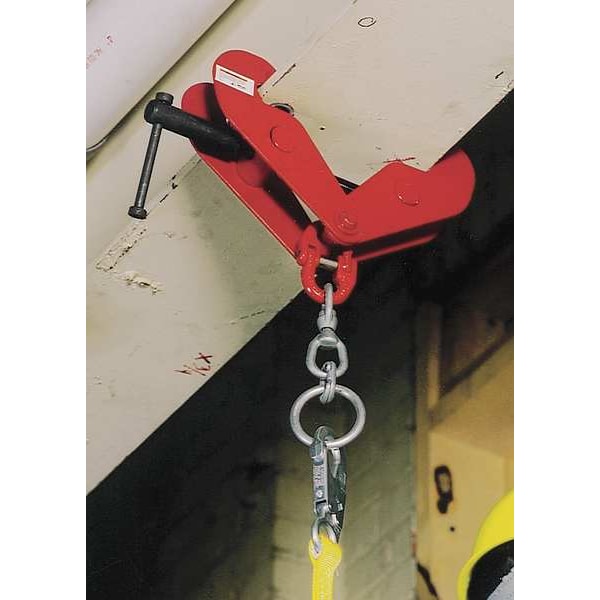

Beam Clamp, Up to 9 In L, Steel
| Item | Beam Clamp |
|---|---|
| Standards | OSHA, ANSI, CSA |
| Weight Capacity | 400 lb |
| Tensile Strength | 5,000 lb |
| Anchor Material | Steel |
| Attachment Point | Swivel D-Ring |
| Workers per System | 1 |
| Material | Steel |
| Fits Beam Size | Up to 9 in L |
| Installation | Temporary |
| Width | 9 in |
| Depth | 9 in |
| D-Ring Material | Steel |
| For Use With | I-Beam S-Beam W-Beam |
| Mounting Orientation | Horizontal |
| Adjustment Style | Detent Pin |
| Anchor Performance | General Purpose |
| Brand and Series | Honeywell Miller |
| Visual Load Indicator | No |
| Anchor Installation | Reusable |
| Beam Clamp Style | Fixed |
| For Max. Flange Width | 9 in |
| Ring Diameter | 3 in |
| Series | Miller |
| OSHA Standards Met | OSHA 1910.66, OSHA 1926.502 |
| For Maximum Flange Width | 9 in |
| ANSI Standards Met | ANSI A10.32, ANSI Z359.1-2007 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
