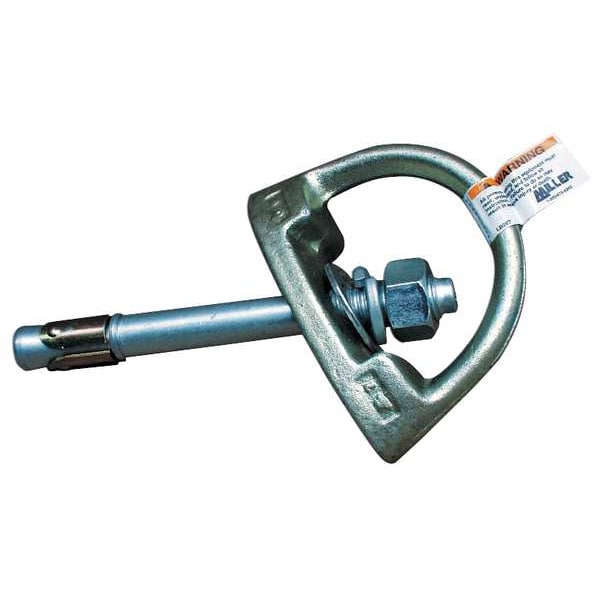

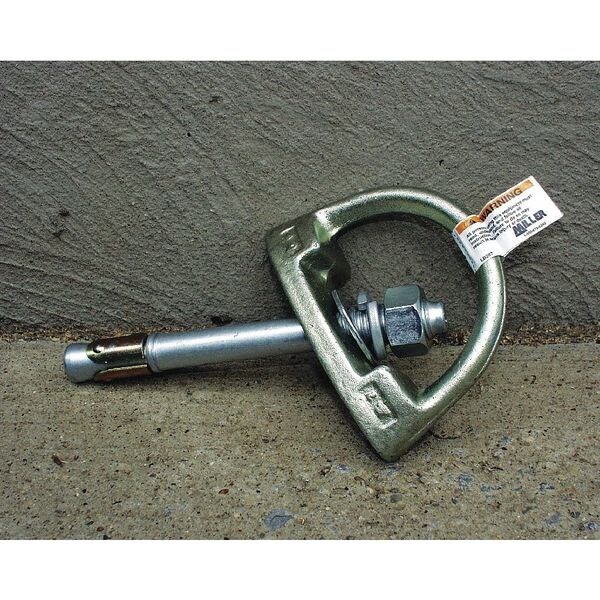

D-Bolt Anchorage Connector With Concrete Expansion Bolt
| Item | D-Bolt Anchor Connector |
|---|---|
| Standards | OSHA, ANSI |
| Length | 7 in |
| Weight Capacity | 400 lb |
| Tensile Strength | 5,000 lb |
| Anchor Material | Steel |
| Attachment Point | D-Ring |
| Workers per System | 1 |
| Hole Depth | 4.2 in |
| Width | 1-1/2 in |
| Material | Steel |
| Installation | Permanent |
| Hole Dia. | 5/8 in |
| Depth | 4.2 |
| Ring Inside Dia. | 4 in |
| Brand and Series | Honeywell Miller |
| Includes Mounting Hardware | No |
| Overall Length | 7 in |
| For Hole Dia. | 5/8 in |
| Anchor Installation | Permanent |
| Number of Mounting Holes | 1 |
| Thread Size | 5/8 |
| Maximum Hole Depth | 4 in |
| OSHA Standards Met | OSHA 1910.66, OSHA 1926.502 |
| ANSI Standards Met | ANSI Z359.1, ANSI A10.32 |
| Mounting Hole Diameter | 5/8 in |
| For Hole Diameter | 5/8 in |
| Ring Inside Diameter | 4 in |
| Detent Anchor Components | Not Applicable |
| Number of Bolts Included | 8 |
| Ring Diameter | 4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
