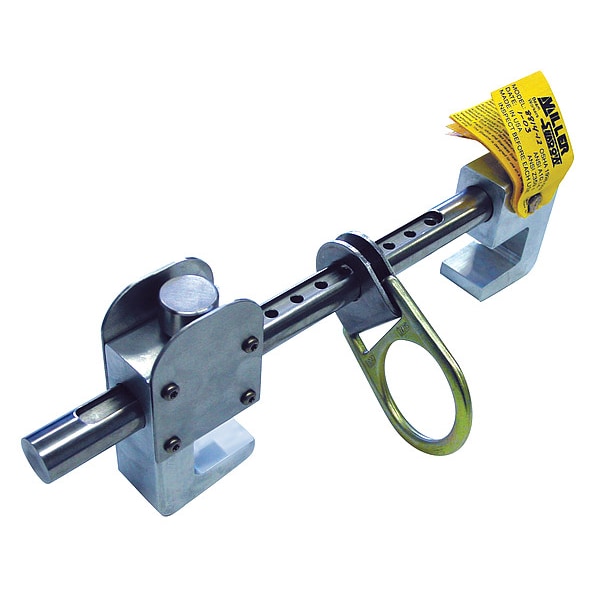

Stainless Steel/Alum. Adj. Beam Anchor, Fits Flange Sizes 4 In To 12 In
| Item | Beam Anchor |
|---|---|
| Series | Shadow |
| Weight Capacity | 310 lb |
| Standards | OSHA, ANSI, CSA |
| Installation | Reusable |
| Tensile Strength | 500 lb |
| Length | 12 in |
| Visual Load Indicator | No |
| Depth | 12 in |
| D-Ring Material | Aluminum, Stainless Steel |
| Attachment Point | D-Ring |
| Sliding Mechanism | Aluminum Clamps |
| For Max. Flange Width | 24 in |
| Adjustment Style | Detent Pin |
| For Min. Flange Width | 3 in |
| Replaceable Wear Pad | No |
| Workers per System | 1 |
| For Flange Width Range | 3 to 24 in |
| Beam Clamp Style | Sliding |
| Anchor Performance | General Purpose |
| Anchor Material | Aluminum, Stainless Steel |
| Includes Mounting Hardware | No |
| Mounting Orientation | Horizontal |
| For Minimum Flange Width | 3 in |
| Ring Diameter | 2 in |
| For Maximum Flange Width | 24 in |
| Other Standards | CSA |
| ANSI Standards Met | ANSI |
| OSHA Standards Met | OSHA |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
