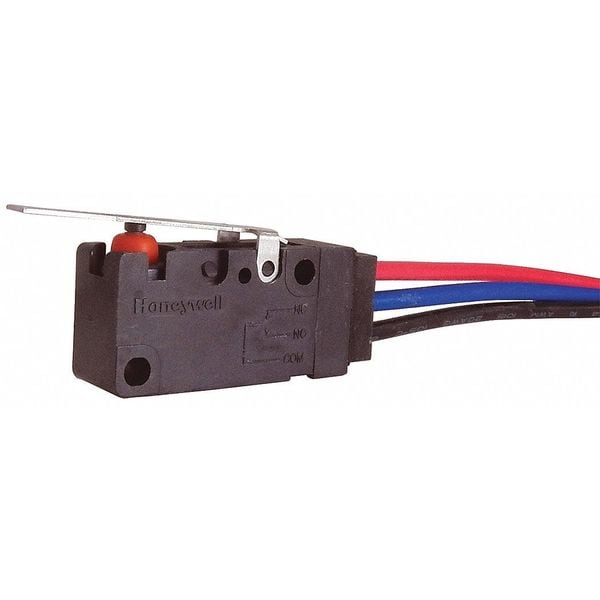

Interruptor de acción rápida en miniatura, actuador de palanca, SPDT, calificación de contacto de 5A @ 240V CA.
| Item | Miniature Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Lever |
| AC Contact Rating - Snap Action Switch | 5 A @ 240 V |
| DC Contact Rating - Snap Action Switch | 5 A @ 30 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | 1.4 in |
| Height - Snap Action Switch | 0.63 in |
| Width - Snap Action Switch | 1.3 in |
| Depth - Snap Action Switch | 0.41 in |
| Max. Pretravel | 0.13 in |
| Over Travel | 0.05 in |
| Actuator Length | 1.4 in |
| Depth | 0.41 in |
| Length | 1.3 in |
| Watertight - Snap Action Switch | Yes |
| Terminal Type | Lead Wires |
| Mounting Dimension - Snap Action Switch | 0.87 in (Centers) |
| Current Rating | 5 A |
| Contact Form | SPDT |
| Release Force | 10 gf max |
| Electrical Connection - Snap Action Switch | Lead Wires |
| Housing Material | PBT Polyester Thermoplastic |
| Operating Temp. Range | -40 Degrees to 185 Degrees F |
| Differential Travel | 0.05 in |
| Standards | CQC, cUL, ENEC, UL Listed |
| Operating Force | 120 gf max |
| Voltage Rating | 250VAC |
| Type of Actuator | Straight Lever |
| Height | 0.63 in |
| Mounting Dimension | 22.2 mm x 10.3 mm (Centers) |
| Series | V15W |
| DC Contact Rating | 5 A @ 30 V |
| AC Contact Rating | 5 A @ 240 V |
| Overall Width | 1.3 in |
| Operating Force - Maximum | 122 ozf |
| Overall Height | 0.63 in |
| Differential Travel - Maximum | 0.04 in |
| Overall Depth | 0.41 in |
| Operating Force - Minimum | Not Applicable |
| Body Material | Thermoplastic |
| Electrical Connection | Lead Wires |
| Differential Travel - Minimum | Not Applicable |
| Actuator Style | Lever |
| Lever Actuator Length | 1.4 in |
| Package Quantity | 1 |
