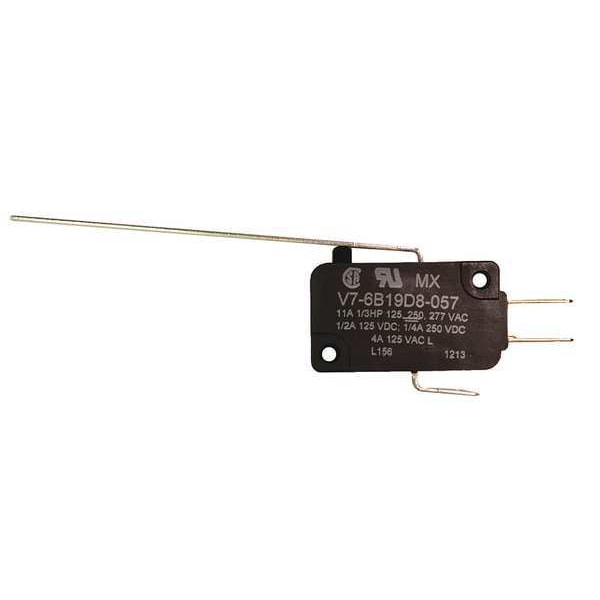

Interruptor de acción rápida en miniatura, palanca, actuador largo, SPDT, capacidad de contacto de 3A @ 240V AC.
| Item | Miniature Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Lever, Long |
| AC Contact Rating - Snap Action Switch | 11 A 1/3 HP 125 V, 250 V or 277 V |
| DC Contact Rating - Snap Action Switch | 1/2 A 125 V; 1/4 A 250 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | 0.09 in |
| Height - Snap Action Switch | 0.63 in |
| Width - Snap Action Switch | 1.14 in |
| Depth - Snap Action Switch | 0.4 in |
| Height | 0.63 in |
| Mounting Dimension | 0.41 x 0.87" Centers |
| Depth | 0.4 in |
| Terminal Type | Quick Connect |
| Release Force | 0.1 ozf |
| Type of Actuator | Long Straight Lever |
| Actuator Length | 0.09 in |
| Voltage Rating | 250VAC |
| Standards | CSA, ENEC, RoHS, UL Listed |
| Over Travel | 0.145 in |
| Current Rating | 3 A |
| Length | 1.14 in |
| Housing Material | PCT Polyester Thermoplastic |
| Operating Force | 1.94 oz |
| Mounting Dimension - Snap Action Switch | 0.87 in (Centers) |
| Contact Form | 1NO/1NC |
| Electrical Connection - Snap Action Switch | Quick Connect |
| Series | V7 |
| Differential Travel | 0.1 in |
| Operating Temp. Range | -40 Degrees C to 85 Degrees C [-40 Degrees F to 185 Degrees F], options for 175 Degrees C [347 Degrees F] |
| Watertight - Snap Action Switch | No |
| Max. Pretravel | 0.3 in |
| DC Contact Rating | 0.25 A @ 250 V, 0.5 A @ 125 V |
| AC Contact Rating | 11 A @ 250 V |
| Contact Rating | 11A 125-277V AC 0.25A 250V DC |
| Operating Temperature | -40°F (-40°C) to 185°F (85°C) |
| Head | Lever |
| Over-Travel | 0.141 in |
| Pre-Travel - max | 0.3 in |
| Operator Configuration | Straight |
| Differential-Travel - max | 0.1 in |
| Force to Operate | 2 oz |
| Connection | Quick Connect Terminal |
| Connection Configuration | Spade Tab, 0.188 in.Wide x 0.020 in.Thick |
| Current Rating - nominal | 10 A |
| Head Action | Spring Return, Standard |
| Type | Miniature Limit Switch |
| Roller Adjustability | Not Applicable |
| Mounting Hole Diameter | 1/8 in |
| Overall Width | 1.14 in |
| Operating Temperature - Maximum | 365 deg F |
| Overall Height | 0.63 in |
| Roller Diameter | Not Applicable |
| Operating Force - Minimum | Not Applicable |
| Body Width | 1.14 in |
| Operating Temperature - Minimum | -40 deg F |
| Overtravel | 0.141 in |
| Roller Position | Not Applicable |
| Pretravel | 0.3 in |
| Overall Depth | 0.4 in |
| Lever Actuator Length | 0.09 in |
| Body Depth | 0.4 in |
| Roller Material | Not Applicable |
| Body Material | Polyester |
| Differential Travel - Minimum | Not Applicable |
| Actuator Style | Lever |
| Operating Force - Maximum | 1.94 ozf |
| Center Mounting Hole Distance | 0.88 in |
| Body Height | 0.63 in |
| Differential Travel - Maximum | 0.1 in |
| Electrical Connection | Quick Connect |
| Package Quantity | 1 |
