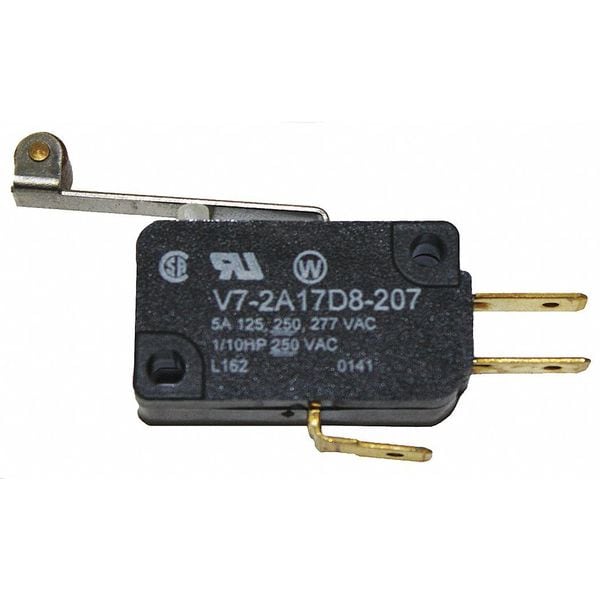

Interruptor de acción rápida en miniatura, palanca actuadora con rodillo, SPDT, capacidad de contacto de 5A @ 240V AC.
| Item | Miniature Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Lever, Roller |
| AC Contact Rating - Snap Action Switch | 5 A 125 V, 250 V, 277 V 1/10 HP 250 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | 1.35 in |
| Height - Snap Action Switch | 0.63 in |
| Width - Snap Action Switch | 1.14 in |
| Depth - Snap Action Switch | 0.4 in |
| Operating Force | 75 g max. |
| Contact Form | 1NO/1NC |
| Operating Temp. Range | -40 Degrees C to 85 Degrees C [-40 Degrees F to 185 Degrees F], options for 175 Degrees C [347 Degrees F] |
| Type of Actuator | Roller Lever |
| Actuator Length | 1.35 in |
| Watertight - Snap Action Switch | No |
| Series | V7 |
| Voltage Rating | 250VAC |
| Over Travel | 0.06 in |
| Release Force | 0.1 ozf |
| Max. Pretravel | 2.92 mm |
| Mounting Dimension | 0.41 x 0.87" Centers |
| Differential Travel | 0.0251 in |
| Mounting Dimension - Snap Action Switch | 0.87 in (Centers) |
| Length | 1.14 in |
| Depth | 0.4 in |
| Height | 0.63 in |
| Electrical Connection - Snap Action Switch | Quick Connect |
| Current Rating | 5 A |
| Standards | CSA, ENEC, RoHS, UL Listed |
| Housing Material | PCT Polyester Thermoplastic |
| Terminal Type | Quick Connect |
| AC Contact Rating | 5 A @ 250 V |
| Mounting Hole Diameter | 1/8 in |
| Operating Force - Minimum | Not Applicable |
| Overall Depth | 0.4 in |
| Electrical Connection | Quick Connect |
| Body Height | 0.63 in |
| Actuator Style | Roller Lever |
| Lever Actuator Length | 1.35 in |
| Body Material | Polyester |
| Pretravel | 0.115 in |
| Differential Travel - Maximum | 0.0251 in |
| Overtravel | 0.06 in |
| Center Mounting Hole Distance | 0.88 in |
| Overall Height | 0.63 in |
| Body Width | 1.14 in |
| Body Depth | 0.4 in |
| Operating Temperature - Minimum | -40 deg F |
| Overall Width | 1.14 in |
| Differential Travel - Minimum | Not Applicable |
| Operating Temperature - Maximum | 365 deg F |
| Operating Force - Maximum | 1.5 ozf |
| Package Quantity | 1 |
