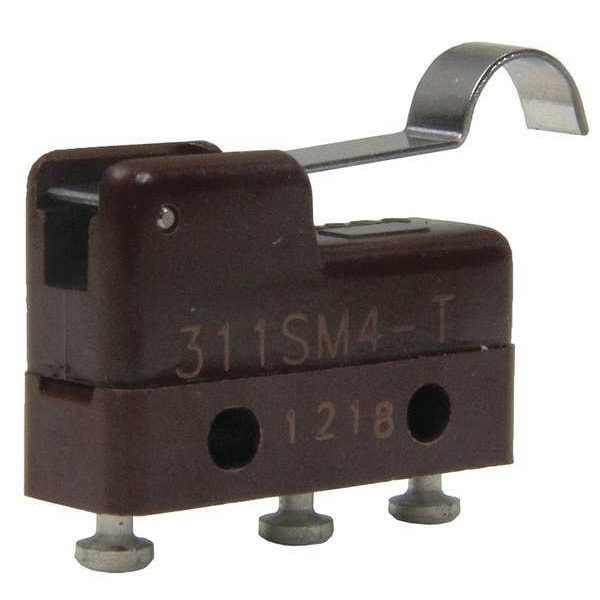

Interruptor de acción rápida en miniatura, palanca, actuador de rodillo simulado, SPDT, calificación de contacto de 5A @ 240V AC.
| Item | Miniature Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Lever, Simulated Roller |
| AC Contact Rating - Snap Action Switch | 5 A @ 240 V |
| DC Contact Rating - Snap Action Switch | 5 A @ 28 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | 1/4 in |
| Height - Snap Action Switch | 1/2 in |
| Width - Snap Action Switch | 0.8 in |
| Depth - Snap Action Switch | 1/4 in |
| Type of Actuator | Simulated Roller Lever |
| Voltage Rating | 250VAC |
| Height | 1/2 in |
| Operating Temp. Range | -67 Degrees to 257 Degrees F |
| Standards | CE, CE 61058-1, CSA, CSA LR41372, ENEC, FAA-PMA, MIL-PRF-8805, UL Listed, UL E12252 |
| Actuator Length | 1/4 in |
| Length | 0.8 in |
| Mounting Dimension - Snap Action Switch | 0.38 in (Centers) |
| Differential Travel | 0.019 in |
| Mounting Dimension | 0.38" Centers |
| Over Travel | 0.018 in |
| Contact Form | 1NO/1NC |
| Housing Material | General Purpose Phenolic |
| Current Rating | 5 A |
| Depth | 1/4 in |
| Series | SM |
| Electrical Connection - Snap Action Switch | Solder Turret |
| Terminal Type | Solder Turret |
| Watertight - Snap Action Switch | No |
| Release Force | 0.25 ozf |
| Max. Pretravel | 0.085 in |
| Operating Force | 1.4 oz |
| AC Contact Rating | 5 A @ 250 V |
| DC Contact Rating | 5 A @ 28 V |
| Center Mounting Hole Distance | 0.38 in |
| Mounting Hole Diameter | 7/8 in |
| Differential Travel - Minimum | Not Applicable |
| Operating Force - Minimum | Not Applicable |
| Operating Force - Maximum | 1.4 ozf |
| Overall Height | 1/2 in |
| Pretravel | 0.085 in |
| Operating Temperature - Maximum | 250 deg F |
| Body Width | 0.78 in |
| Differential Travel - Maximum | 0.019 in |
| Actuator Style | Roller Lever |
| Overtravel | 0.018 in |
| Overall Width | 0.78 in |
| Overall Depth | 1/4 in |
| Body Height | 1/2 in |
| Operating Temperature - Minimum | -65 deg F |
| Lever Actuator Length | 1/4 in |
| Body Depth | 1/4 in |
| Body Material | Phenolic |
| Electrical Connection | Solder Turret |
| Package Quantity | 1 |
