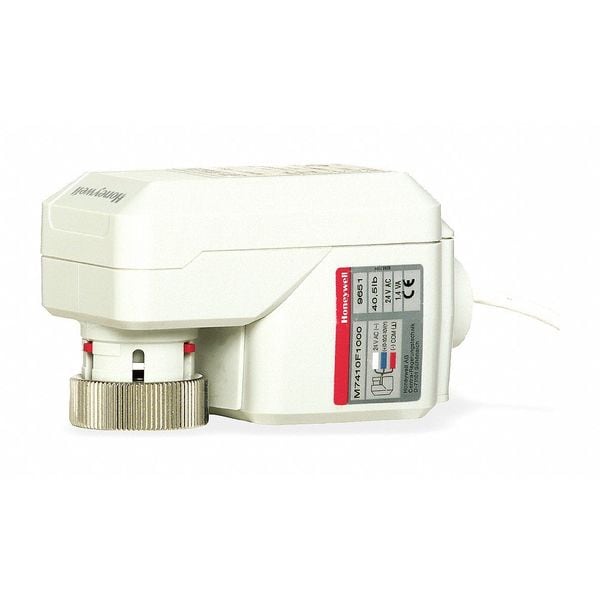

Modulating Valve Actuator, 20 to 28 Vac
| Item | Electric Globe Valve Actuator |
|---|---|
| Type | Modulating Low Voltage |
| Input Voltage | 2 to 10V DC |
| For Use With | V5852, V5853, V5862, V5863 valves |
| Width (In.) | 1-15/16 |
| Stem Force (Lb.) | 40.5 |
| Includes | Direct/Reverse Acting Switch |
| Depth (In.) | 3-15/16 |
| Hz | 60 |
| Length (In.) | 3-15/16 |
| Height (In.) | 2-3/8 |
| Electrical Connections | Plenum Rated Cable |
| Frequency | 50/60 Hz |
| Product Type | Electric Valve Actuator |
| Overall Height | 3-15/16 in |
| Compatible with Manufacturer Model Number | V5862A, V5863A Valves |
| Compatible with Series | 3000 |
| Stem Force | 67.5 lb |
| Overall Length | 4 in |
| Overall Width | 2-1/4 in |
| Overall Depth | 4 in |
| Electrical Connection | Plug-In |
| Compatible Manufacturer Part Number | V5862A, V5863A Valves |
| Compatible with Manufacturer Part Number | V5862A, V5863A Valves |
| Compatible with Manufacturer Model Number [NEW] | V5862A, V5863A Valves |
| Signal Type | Proportional |
| IP Rating | IP42 |
| Valve Application | Valve |
| Rated Torque | 486 in-lb |
| Application | Globe Valves |
| Spring Return | Non-Spring Return |
| Minimum Operating Temperature | 32 Degrees F |
| Maximum Operating Temperature | 122 deg F |
| Number of Auxiliary Switches | 0 |
| Power Consumption | 1.8 VA |
| Power Rating | 1.2W |
| Voltage | 2 to 10V DC |
| NEMA Rating | Not Rated |
| Electrical Lead Length | 5 ft |
| Return Action | Non-Spring Return |
| Operating Temperature - Minimum | 32 deg F |
| Control Signal | Proportional |
| Torque | 41 in-lb |
| Compatible Series | 3,000 |
| Cycle Time | 125 sec |
| Electrical Connection Type | Cable |
| Operating Temperature - Maximum | 122 deg F |
| Stroke Length | 1/4 in |
| Country of Origin (subject to change) | Hungary |
| Package Quantity | 1 |
