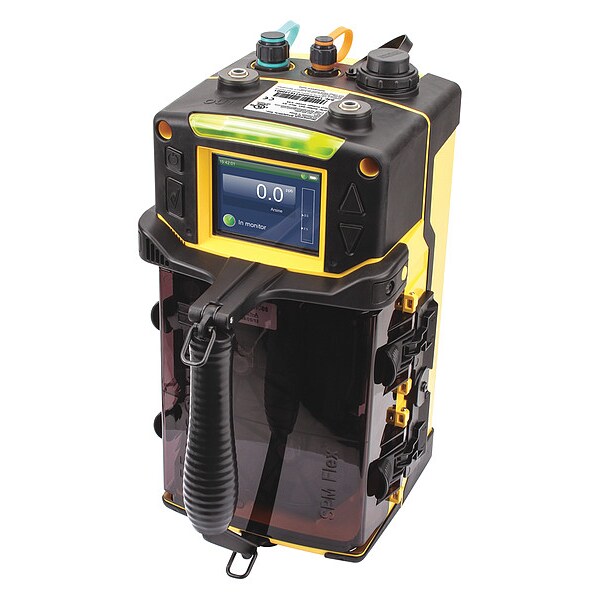

Not Applicable Multi-Gas Detector, IP65, Audible, Visual, LCD TFT, 6 hr Battery Life
| Item | Multi-Gas Detector |
|---|---|
| Gas Detected | Ammonia, Chlorine, Chlorine Dioxide, Fluorine, Hydrogen Peroxide, Nitrogen Dioxide, Ozone |
| Alarm Type | Audible, Visual |
| Alarm Setting | Adjustable |
| Battery Life | 6 hr |
| Standards | CAN/CSA-C22.2 No. 61010-1, 3rd Edition, 2012-05, (ELECTRICAL EQUIPMENT for MEASUREMENT, CONTROL, and LABORATORY use - Part 1: General Requirements), CE EMC, LVD, ROHS, WEEE & RED, IEC 61010-1:2010, 3rd Edition, IEC 62133 1st Edition CB Certification, RFID APPROVALS, UL 61010-1, 3rd Edition, 2012-05 (ELECTRICAL EQUIPMENT for MEASUREMENT, CONTROL, and LABORATORY use - Part 1: General Requirements), UL/cUL Recognition to UL 2054 + 60950-1, UN Test Report to UN 38.3 |
| Sensor Range | CL2 0 to 5 ppm, ClO2 20 to 1000 ppm, F2 0 to 10 ppm, H2O2 0 to 3 ppm, NH3 0 to 150 ppm, NO2 0 to 10 ppm, O3 20 to 1000 ppm |
| IP Rating | IP65 |
| Series | Not Applicable |
| Display Screen Type | LCD TFT |
| Chemical Formula | CL2, CLO2, F2, H2O2, NH3, NO2, O3 |
| Housing Color | Black, Yellow |
| Status Indicator | LED |
| Features | Duty Cycle and K-Factor Multiplier Options, Remote Viewing Through the Web, Visible At A Distance with Crisp, Colorful LED Bar on Top of Unit with Flip Screen |
| Power Source | Adapter |
| Includes Probe | Not Applicable |
| Overall Width | 7.2 in |
| Sub-Brand | Not Applicable |
| Alarm Setting Adjustment | Adjustable Alarm Setting |
| Mount Type | Handheld, Portable |
| Number of Gases Detected | 7 |
| Data Logger | Yes |
| Battery Chemistry | Lithium Ion |
| Operating Humidity - Minimum | 0 % |
| Operating Temperature - Minimum | 32 deg F |
| Visual Alert Type | Green LED, Red LED, Blue LED, Yellow LED |
| Alert Type | Sound, Light |
| Communication Protocol | Not Applicable |
| Operating Temperature - Maximum | 104 deg F |
| Replaceable Battery | Not Applicable |
| Operating Humidity - Maximum | 100 % |
| Maintainability | Maintainable |
| Overall Height | 13.2 in |
| Alarm Volume Level | High: 90 dB @ 3.28 ft, Low: 75 dB @ 3.28 ft, Medium: 85 dB @ 3.28 ft |
| Measurement Range | CL2 (0 to 5 ppm), ClO2 (20 to 1,000 ppm), F2 (0 to 10 ppm), H2O2 (0 to 3 ppm), Ammonia (0 to 150 ppm), Nitrogen Dioxide (0 to 10 ppm), Ozone (20 to 1,000 ppm) |
| Display Size | 3-1/2 in |
| Overall Depth | 9-1/2 in |
| Battery Size | Not Applicable |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
