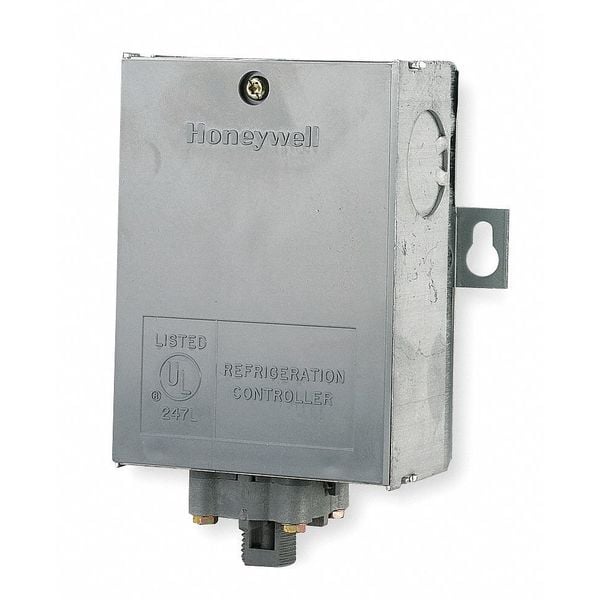

Pneumatic-Electric Switch, Surface, Barb Fitting for 1/4 OD Plastic Tubing
| Item | Pneumatic-Electric Switch |
|---|---|
| Air Connections | Barb Fitting for 1/4 OD Plastic Tubing |
| Voltage | 125250/277 |
| Contact Action | Makes R to B and Breaks R to W on a Pressure Fall |
| Max. Safe Air PSI | 30 psi |
| Depth (In.) | 2 |
| Includes | Screw terminals |
| Width (In.) | 3-3/8 |
| Height (In.) | 5-3/8 |
| Throttling Range | 2 to 24 |
| Max. Safe Operating Temp. (F) | -20 to 140 |
| Control Range | 2 to 24 psi |
| Agency Compliance | CSA Certified, UL Listed |
| Type | Pneumatic Signal to Activate Electric Switch, Surface Mount, with Case |
| Standards | CSA, UL Listed |
| Mounting Style | Surface |
| Application | Day-Night Control, Electric Heating Systems, Electric Heaters, Fan Control, Interlock Functions, Pumps |
| Product Type | Pressure Control |
| Resistive Load Current @ 240V AC | 25 A |
| Air Connection Type | Barbed Hose |
| Case Material | Painted Ferrous |
| Locked Rotor Current @ 120V AC | 25 A |
| Locked Rotor Current @ 240V AC | 25 A |
| Air Connection Size | 1/4 in |
| Signal Pressure - Maximum | 24 psi |
| Pilot Duty @ 240V AC | 750 VA |
| Switch Action | Normally Closed |
| Overall Depth | 5-3/8 in |
| Diaphragm Material | Neoprene |
| Full Load Current @ 240V AC | 25 A |
| Number of Function | Dual Function |
| Overall Width | 2 in |
| Overall Length | 3-3/4 in |
| Air Connection Gender | Male |
| Electrical Connections | Screw Terminal |
| Operating Temperature - Maximum | 140 deg F |
| Number of Switches | 2 |
| Pilot Duty @ 120V AC | 750 VA |
| Allowable Pressure - Maximum | 30 psi |
| Signal Pressure - Minimum | 2 psi |
| Operating Temperature - Minimum | 40 deg F |
| Transmitter Output | None |
| Contact Form | SPDT |
| Resistive Load Current @ 120V AC | 25 A |
| Full Load Current @ 120V AC | 25 A |
| Conduit Size | 3/4 in |
| Pressure Differential | 2 psi |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
