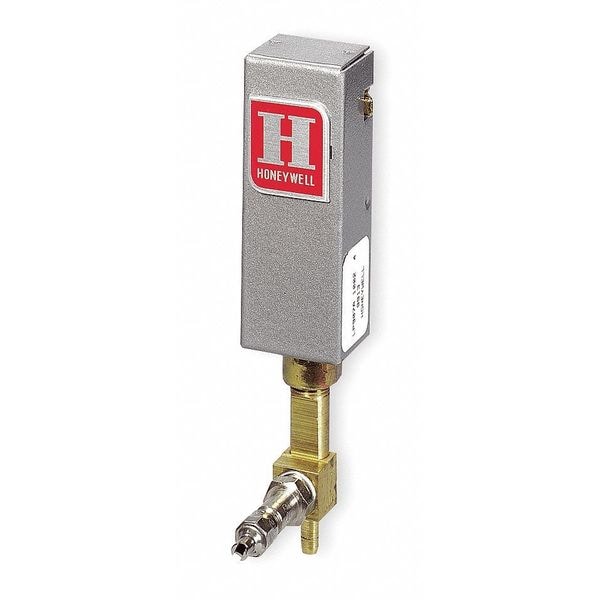

Pneumatic Temperature Limit Control, 1/4 in Barb, 3 to 13 psi, 1-Pipe, Rigid Bulb
| Item | Pneumatic Temperature Limit Control |
|---|---|
| Action Type - Pneumatic Thermostats | Direct Acting |
| Control Air Pressure | 3 to 13 psi |
| Air Connections | 1/4 in Barb |
| Height | 5-3/8 in |
| Width | 1 in |
| Depth | 2-1/4 in |
| Temp. Control Range | 40 to 140 deg F |
| Sensing Bulb Length | 1 ft 6-1/4 in |
| Max. Air Pressure | 25 psi |
| Capillary Length | 3 ft |
| Includes | Fittings, Restrictor |
| Element Type | Rigid |
| Sensing Bulb Dia. | 1/32 in |
| Air Consumption | 0.011 scfm |
| Max. Ambient Temp. | 150 deg F |
| Reverse Acting / Direct Acting | Direct Acting |
| Sensor Type | Remote Bulb |
| Throttling Range | 3 to 13 PSI |
| Type | 1-Pipe, Rigid Bulb |
| Action Type | Direct Acting |
| Minimum Control Temperature | 40 deg F |
| Temperature Control Range | 40 to 140 deg F |
| Air Connection Outside Diameter | 1/4 in |
| Air Flow Output | High Volume |
| Maximum Control Temperature | 140 deg F |
| Thermostat Action | Direct |
| Overall Height | 3-7/16 in |
| Compatible System Type | Damper Actuators in HVAC, Pneumatic Valves |
| Overall Width | 1-1/16 in |
| Pneumatic Thermostat Type | Remote-Bulb Sensor |
| Manual Indexing Switch | No |
| Fitting Connection | 1/4 in Barbed |
| Maximum Air Pressure | 13 psi |
| Action | Direct |
| Air Flow Capacity | 0 scfm |
| Number of Pipes | 2 |
| Overall Depth | 7/8 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
