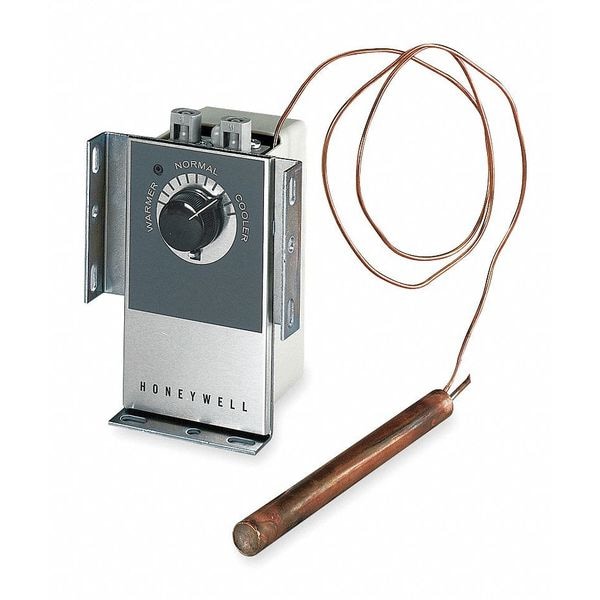

Pneumatic Temperature Transmitter, 1/4 in Barb, 2-Pipe, Single Temp., Liquid Filled, Remote Bulb
| Item | Pneumatic Temperature Transmitter |
|---|---|
| Action Type - Pneumatic Thermostats | Direct Acting and Reverse Acting |
| Air Connections | 1/4 in Barb |
| Height | 4-3/4 in |
| Width | 3-3/4 in |
| Depth | 3 in |
| Temp. Control Range | 65 to 85 deg F |
| Max. Air Pressure | 25 psi |
| Capillary Length | 36 in |
| Reverse Acting / Direct Acting | Direct Acting and Reverse Acting |
| Air Consumption | 19 scim |
| Element Type | Bulb |
| Max. Ambient Temp. | 135 deg F |
| Includes | 316297-00021 Bulb Hanger, 304528A Bag Assembly, Mounting Bracket |
| Sensing Bulb Dia. | 3/8 in |
| Sensing Bulb Length | 9-5/8 in |
| Sensor Type | Remote Bulb |
| Throttling Range | 3.5 Degrees F |
| Application | Heat and Cool |
| Control Type | Exposed Dial |
| Type | 2-Pipe, Single Temp., Liquid Filled, Remote Bulb |
| Action Type | Direct Acting and Reverse Acting |
| Number of Dials | Single |
| Overall Width | 3-3/4 in |
| Overall Depth | 3 in |
| Compatible System Type | Pneumatic Valves and Damper Actuators |
| Temperature Scale | Fahrenheit |
| Maximum Air Pressure | 25 psig |
| Maximum Control Temperature | 85 deg F |
| Mounting Direction/Includes Cover | Vertical, No |
| Action | Direct, Reverse |
| Air Connection Outside Diameter | 1/4 in |
| Minimum Control Temperature | 65 deg F |
| Dial Configuration | Warm/Cold |
| Sensor Location | Remote |
| Thermostat Action | Direct and Reverse |
| Number of Pipes/Air Flow Output | 2 Pipes, High Volume |
| Pneumatic Thermostat Type | Piston Valve Actuator with Sensor |
| Overall Height | 4-3/4 in |
| Temperature Settings | Single Temperature |
| Pneumatic Thermostat Type/Indexing Switch | Piston Valve Actuator |
| Temperature Control Range | 65 to 85 deg F |
| Manual Indexing Switch | No |
| Number of Pipes | 2 |
| Fitting Connection | Barbed 1/4 in |
| Mounting Direction | Vertical |
| Mounting Direction/Capillary Length | Vertical/36 in |
| Air Flow Output | High Volume |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
