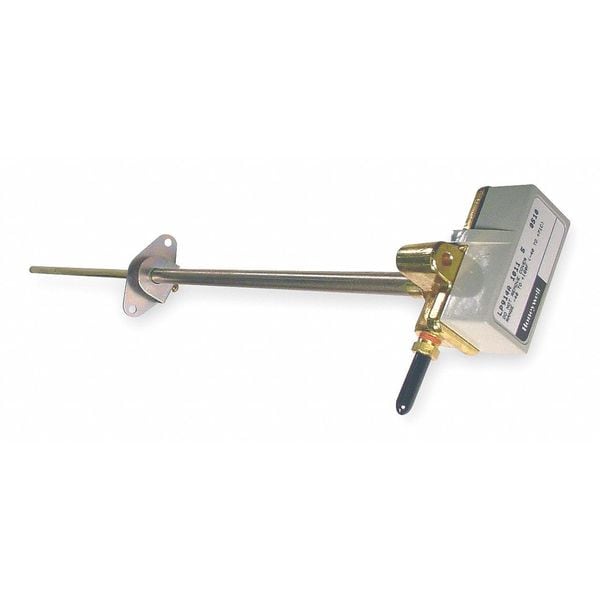

Pneumatic Temperature Transmitter, Well, Push-on Barb for 5/32 in and 1/4 in OD Tubing, 3 to 15 psi
| Item | Pneumatic Temperature Transmitter |
|---|---|
| Action Type - Pneumatic Thermostats | Direct Acting |
| Control Air Pressure | 3 to 15 psi |
| Air Connections | Push-on Barb for 5/32 in and 1/4 in OD Tubing |
| Height | 3 in |
| Width | 2-1/2 in |
| Depth | 10 in |
| Temp. Control Range | -40 to 160 deg F |
| Output Pressure Range | 3 to 15 psi |
| Max. Air Pressure | 25 psi |
| Air Consumption | 32.8 scim |
| Sensing Bulb Length | 15 in |
| Max. Ambient Temp. | 265 deg F |
| Sensing Bulb Dia. | 11/32 in |
| Reverse Acting / Direct Acting | Direct Acting |
| Element Type | Rod and Tube |
| Mounting Style | Well |
| Action Type | Direct Acting |
| Product Type | Pneumatic Temperature Sensor |
| Sensing Bulb Diameter | 11/32 in |
| Control Temperature - Maximum | 160 deg F |
| Operating Temperature - Maximum | 265 deg F |
| Air Control Pressure - Minimum | 3 psi |
| Operating Pressure - Maximum | 25 psi |
| Overall Width | 2-3/8 in |
| Operating Pressure - Minimum | 18 psi |
| Air Connection Size | 1/4 in |
| Overall Height | 2-29/32 in |
| Air Connection Type | Barb |
| Air Control Pressure - Maximum | 15 psi |
| Overall Length | 2 in |
| Control Temperature - Minimum | -40 deg F |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
