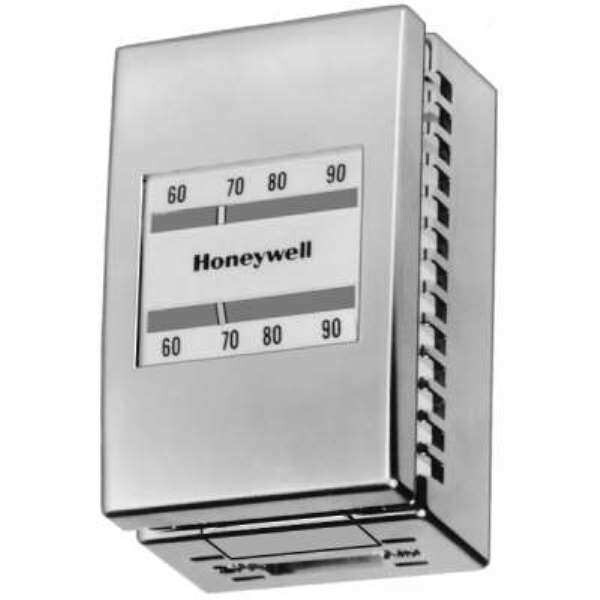

Pneumatic Thermostat Conversion Kit, Single Temperature, Cooling, 2 Pipe, Vertical, 1/8 in
| Item | Pneumatic Thermostat Conversion Kit |
|---|---|
| Action Type - Pneumatic Thermostats | Reverse Acting |
| No. of Pipes | 2 Pipe |
| Thermostat Application | Cooling |
| Temperature Output Settings | Single Temperature |
| Air Connections | 1/8 in |
| Height | 3-1/4 in |
| Width | 2 in |
| Depth | 1-5/8 in |
| Temp. Control Range | 60 to 90 deg F |
| Air Consumption | 0.011 scfm |
| Includes | Wall Plate |
| Heating / Cooling | Cooling |
| Max. Ambient Temp. | 100 deg F |
| Max. Air Pressure | 25 psi |
| Reverse Acting / Direct Acting | Reverse Acting |
| Throttling Range | 2 to 10F |
| 1 Pipe / 2 Pipe | 2 Pipe |
| Mounting Style | Vertical |
| Element Type | Bi-Metal |
| Single Temp. / Dual Temp. | Single Temperature |
| Application | Heat or Cool |
| Sensor Type | Bi-Metallic Spring |
| Control Type | Exposed Setpoint Knob |
| Overall Width | 2 in |
| Overall Height | 3-1/4 in |
| Action Type | Reverse Acting |
| Cover Color | Silver |
| Air Connection Type | Dual Barbed Fittings |
| Thermostat Action/Application | Reverse/Heat or Cool |
| Mounting Direction/Cover Color | Vertical, Silver |
| Compatible System Type | Damper Actuators, Pneumatic Valves |
| Replaces Brand/Manufacturer Model Number | Johnson Control, Powers, Robertshaw, Barber-Colman, and obsolete Honeywell (2-pipe) |
| Number of Pipes/Air Flow Output | 2 Pipes, High Volume |
| Minimum Control Temperature | 59 deg F |
| Air Flow Output | High Volume |
| Temperature Settings | Single Temperature |
| Maximum Control Temperature | 90 deg F |
| Action | Reverse |
| Overall Depth | 1-5/8 in |
| Air Restrictor Required | No |
| Replaces Brand | Barber-Colman, Johnson Controls, Obsolete Honeywell (2-pipe), Powers, Robertshaw |
| Maximum Air Pressure | 25 psi |
| Thermostat Action | Reverse |
| Mounting Direction | Vertical |
| Number of Pipes | 2 |
| Manufacturer Model Number | TP970B2077 |
| Number of Dials | Single |
| Temperature Scale | Fahrenheit |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
