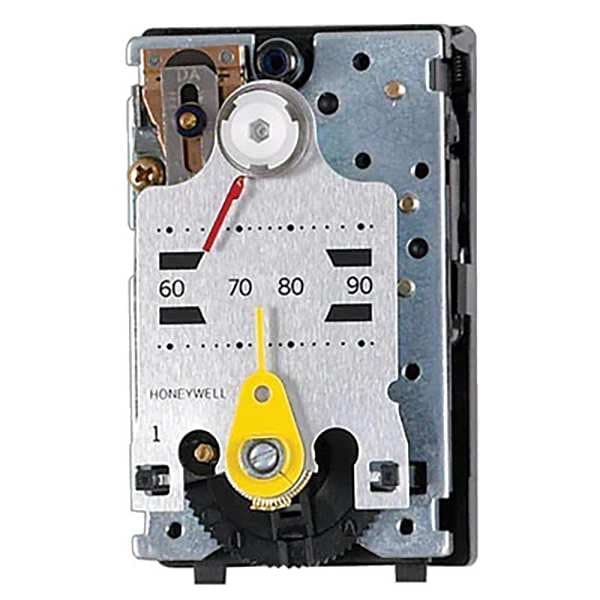

Pneumatic Thermostat, Single Temperature, Heating, 2 Pipe, Vertical, 1/8 in
| Item | Pneumatic Thermostat |
|---|---|
| Action Type - Pneumatic Thermostats | Direct Acting |
| No. of Pipes | 2 Pipe |
| Thermostat Application | Heating |
| Temperature Output Settings | Single Temperature |
| Air Connections | 1/8 in |
| Height | 3-1/4 in |
| Width | 2 in |
| Depth | 1-5/8 in |
| Temp. Control Range | 60 to 90 deg F |
| Element Type | Bi-Metal |
| Single Temp. / Dual Temp. | Single Temperature |
| 1 Pipe / 2 Pipe | 2 Pipe |
| Air Consumption | 19 scim |
| Heating / Cooling | Heating |
| Reverse Acting / Direct Acting | Direct Acting |
| Max. Air Pressure | 25 psi |
| Max. Ambient Temp. | 100 deg F |
| Mounting Style | Vertical |
| Throttling Range | 2 Degrees to 10 Degrees F |
| Sensor Type | Bi-Metallic Spring |
| Application | Heat or Cool |
| Control Type | Exposed Dial |
| Type | 1- or 2-Pipe, Single or 2 Temp. |
| Overall Width | 2 in |
| Overall Height | 3-1/4 in |
| Action Type | Direct Acting |
| Air Connection Outside Diameter | 1/8 in |
| Number of Pipes | 2 |
| Maximum Air Pressure | 25 psig |
| Action | Direct |
| Maximum Control Temperature | 90 deg F |
| Temperature Control Range | 60 to 90 deg F |
| Mounting Direction | Vertical |
| Mounting Direction/Includes Cover | Vertical, No |
| Overall Depth | 1-5/8 in |
| Manual Indexing Switch | No |
| Thermostat Action | Direct |
| Air Flow Output | High Volume |
| Temperature Settings | Single Temperature |
| Temperature Scale | Fahrenheit |
| Number of Dials | Single |
| Number of Pipes/Air Flow Output | 2 Pipes, High Volume |
| Minimum Control Temperature | 59 deg F |
| Compatible System Type | Pneumatic Valves and Damper Actuators |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
