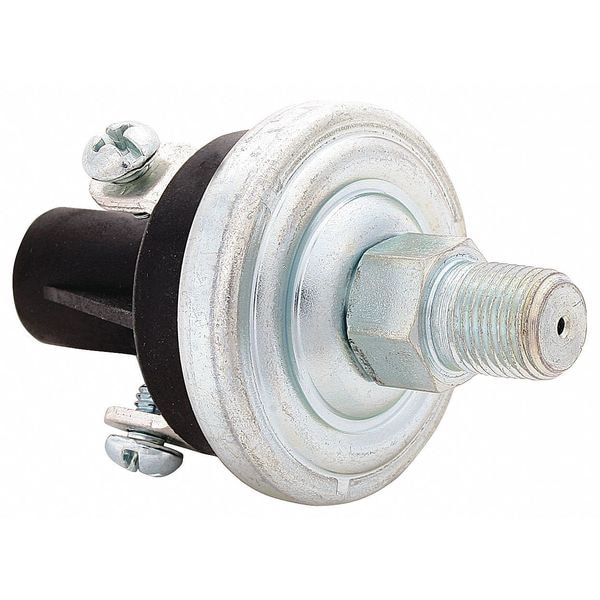

Interruptor de presión, 1/8-27 en MNPT, SPDT-NO/NC, 8 a 13 psi, Acción estándar
| Item | Pressure Switch |
|---|---|
| Pressure Switch Port Type | 1/8-27 in MNPT |
| Pressure Switch Factory On/Off Setting | 8/13 psi |
| Pressure Switch Differential | 8 to 13 psi |
| Pressure Switch Range | 8 to 13 psi |
| Pressure Switch Electrical Contact Form | SPDT-NO/NC |
| Pressure Switch Action | Standard |
| Contact Form | SPDT-NO/NC |
| Action | Standard |
| Differential | 8 to 13 psi |
| Series | 5000 |
| AC Contact Rating | 0.5A @ 240V, 1A @ 120V |
| NEMA Rating | Not Rated |
| Range | 8 to 13 psi |
| Factory On/Off Setting | 8/13 psi |
| DC Contact Rating | 15A @ 6V, 4A @ 24V, 8A @ 12V |
| Actuation Type | Diaphragm |
| Port Type | 1/8-27 in MNPT |
| IP Rating | IP54 |
| Proof Pressure | 500 psi |
| Manufacturer Warranty Length | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| Pressure - Maximum | 150 psi |
| Pressure Connection Type | 1/8-27" MNPT |
| Differential Pressure - Minimum | 8 psi |
| Operating Temperature - Maximum | 250 deg F |
| Number of Pressure Connection Ports | Not Applicable |
| Overall Height | 2.3 in |
| Differential Pressure - Maximum | 13 psi |
| Operating Temperature - Minimum | -40 deg F |
| Pressure - Minimum | 0.5 psi |
| Deadband Adjustability | Adjustable |
| Overall Width | 1.47 in |
| NEMA Enclosure Rating | Not Rated |
| Package Quantity | 1 |
