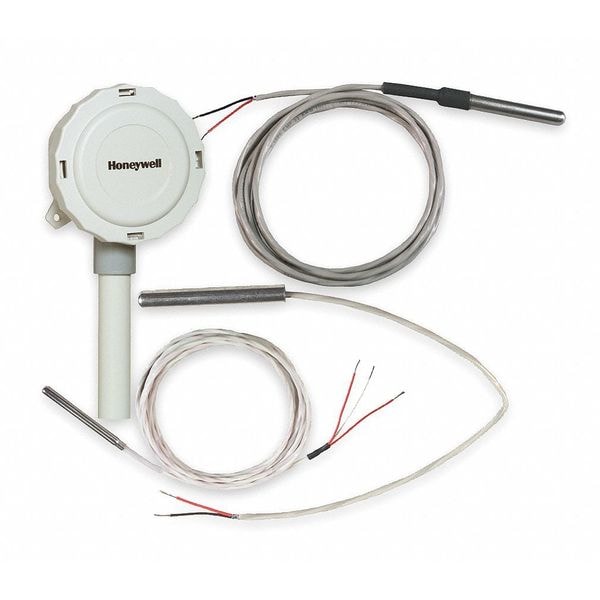

Remote Sensor, Water Tight
| Type | Water-Tight |
|---|---|
| Includes | 3/8 (10) Dual Wall Heat Shrink |
| For Use With | T775 Series 2 |
| Item | Temperature Sensor |
| Sensor Type | 1097 Ohms PTC at 77F |
| Color | Gray |
| Overall Height | 3 in |
| Height | 2 in |
| Application | Discharge Temperature Monitoring, Mixed Air Temperature Monitoring, Return Air Temperature Monitoring |
| Standards | RoHS Compliant |
| Indoor/Outdoor | Indoor |
| Humidity Accuracy | 1,097 ohms PTC @ 77 deg F |
| Cable Length | 6 ft |
| Maximum Temperature | 270 deg F |
| Sensor Location | Remote |
| Operating Temperature Range | -40 to 270 deg F |
| Electrical Connection Type | Hardwired |
| Maximum Operating Temperature | 270 deg F |
| Compatible Brand and Series | T775 Series 2000 |
| Material | Stainless Steel (Probe) |
| Includes Temperature Sensor | Yes |
| Minimum Operating Temperature | -40 deg F |
| Temperature Accuracy | +/- 0.06% at 32 Degrees F |
| Minimum Temperature | -40 deg F |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Compatible with Series | T775 |
| Product Type | Temperature Sensor |
| Measurement Type | Single |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
