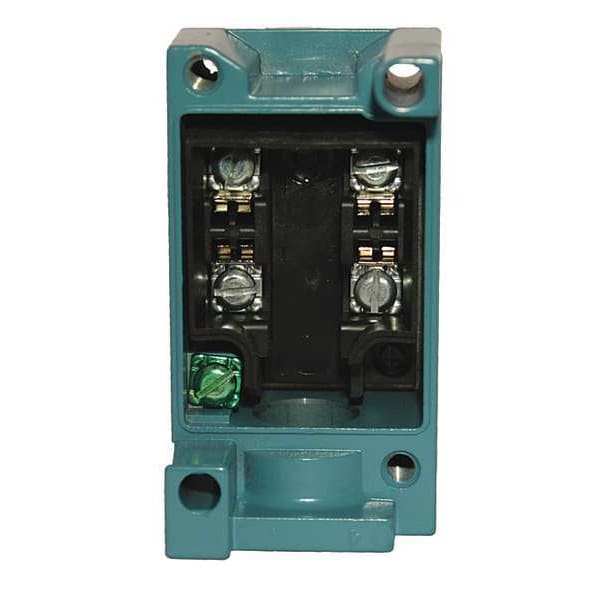

Base de receptáculo de enchufe de repuesto, SPDT
| Item | Limit Switch Receptacle |
|---|---|
| For Use With | HDLS Series, LDS8A, LSA1J, LSA8A, LSB1A, LSB1J, LSB5A, LSB8A, LSC1A, LSC1J, LSC5A, LSC8A, LSD1A, LSD1J, LSD5A, LSE1A, LSE1J, LSE5A, LSE8A, LSF1A, LSF1J,LSF5A, LSF8A, LSG1A, LSG5A, LSG8A, LSH1A, LSH5A, LSH8A, LSJ1A-7A, LSJ1A-7M, LSJ1A-7N, LSJ1J-7N, LSJ5A-7ALSJ8A-7A, LSJ5A-7M, LSJ5A-7N, LSJ8-7M, LSJB8A-7N, LSK1A-8A, LSK1A-8B, LSK1A-8C, LSK1J-8A, LSK5A-8A, LSK5A-8C, LSK8A-8A, LSK8A-8C, LSN1A, LSN5A, LSN8A, LSP1A, LSP1J, LSP5A, LSP8A, LSR5A, LSR8A, LSS1H, LST1H, LSU1A, LSU5A, LSV1A, LSV1J, LSV5A, LSV8A, LSW1A, LSW1J, LSW5A, LSW6B, LSW8A, Mfr. No. LSA5A |
| Contact Form | SPDT |
| Material of Construction | Zinc Die Cast |
| Conduit Size | 1/2"-14 NPT |
| Number of Poles | 1 P |
| Product Type | Limit Switch Receptacle |
| Electrical Connection | Screw Terminal |
| Material | Zinc |
| Type | Heavy Duty Plug-In Limit Switch Receptacle |
| Number of Circuits | 2 |
| Connection Type | Threaded Entry |
| Body Construction | Die Cast Zinc |
| Connection Size | 1/2 in |
| Rating - NEMA | NEMA 4X,6P |
| Enclosure Listings | NEMA 1,3,4,4X,6,6P,12,13 |
| Mounting Hole Vertical Center to Center Distance | 60 mm |
| Compatible with Series | HDLS |
| Mounting Style | Diagonal Side |
| NEMA Enclosure Rating | 1, 12, 13, 3, 4, 4X, 6, 6P |
| Mounting Hole Horizontal Center to Center Distance | 30 mm |
| Number of Mounting Holes | 2 |
| Conduit Connection Type | NPT |
| Conduit Connection Size | 1/2 in |
| Compatible with Manufacturer Model Number | HDLS Series, LDS8A, LSA1J, LSA5A, LSA8A, LSB1A, LSB1J, LSB5A, LSB8A, LSC1A, LSC1J, LSC5A, LSC8A, LSD1A, LSD1J, LSD5A, LSE1A, LSE1J, LSE5A, LSE8A, LSF1A, LSF1J, LSF5A, LSF8A, LSG1A, LSG5A, LSG8A, LSH1A, LSH5A, LSH8A, LSJ1A-7A, LSJ1A-7M, LSJ1A-7N, LSJ1J-7N, LSJ5A-7A, LSJ5A-7M, LSJ5A-7N, LSJ8-7M, LSJ8A-7A, LSJB8A-7N, LSK1A-8A, LSK1A-8B, LSK1A-8C, LSK1J-8A, LSK5A-8A, LSK5A-8C, LSK8A-8A, LSK8A-8C, LSN1A, LSN5A, LSN8A, LSP1A, LSP1J, LSP5A, LSP8A, LSR5A, LSR8A, LSS1H, LST1H, LSU1A, LSU5A, LSV1A, LSV1J, LSV5A, LSV8A, LSW1A, LSW1J, LSW5A, LSW6B, LSW8A |
| Body Configuration | Plug-In |
| Mounting Hole Diameter | 0.203 in |
| Compatible Manufacturer Part Number | HDLS Series, LDS8A, LSA1J, LSA5A, LSA8A, LSB1A, LSB1J, LSB5A, LSB8A, LSC1A, LSC1J, LSC5A, LSC8A, LSD1A, LSD1J, LSD5A, LSE1A, LSE1J, LSE5A, LSE8A, LSF1A, LSF1J, LSF5A, LSF8A, LSG1A, LSG5A, LSG8A, LSH1A, LSH5A, LSH8A, LSJ1A-7A, LSJ1A-7M, LSJ1A-7N, LSJ1J-7N, LSJ5A-7A, LSJ5A-7M, LSJ5A-7N, LSJ8-7M, LSJ8A-7A, LSJB8A-7N, LSK1A-8A, LSK1A-8B, LSK1A-8C, LSK1J-8A, LSK5A-8A, LSK5A-8C, LSK8A-8A, LSK8A-8C, LSN1A, LSN5A, LSN8A, LSP1A, LSP1J, LSP5A, LSP8A, LSR5A, LSR8A, LSS1H, LST1H, LSU1A, LSU5A, LSV1A, LSV1J, LSV5A, LSV8A, LSW1A, LSW1J, LSW5A, LSW6B, LSW8A |
| Compatible Manufacturer Model Number | HDLS Series, LDS8A, LSA1J, LSA5A, LSA8A, LSB1A, LSB1J, LSB5A, LSB8A, LSC1A, LSC1J, LSC5A, LSC8A, LSD1A, LSD1J, LSD5A, LSE1A, LSE1J, LSE5A, LSE8A, LSF1A, LSF1J, LSF5A, LSF8A, LSG1A, LSG5A, LSG8A, LSH1A, LSH5A, LSH8A, LSJ1A-7A, LSJ1A-7M, LSJ1A-7N, LSJ1J-7N, LSJ5A-7A, LSJ5A-7M, LSJ5A-7N, LSJ8-7M, LSJ8A-7A, LSJB8A-7N, LSK1A-8A, LSK1A-8B, LSK1A-8C, LSK1J-8A, LSK5A-8A, LSK5A-8C, LSK8A-8A, LSK8A-8C, LSN1A, LSN5A, LSN8A, LSP1A, LSP1J, LSP5A, LSP8A, LSR5A, LSR8A, LSS1H, LST1H, LSU1A, LSU5A, LSV1A, LSV1J, LSV5A, LSV8A, LSW1A, LSW1J, LSW5A, LSW6B, LSW8A |
| Package Quantity | 1 |
