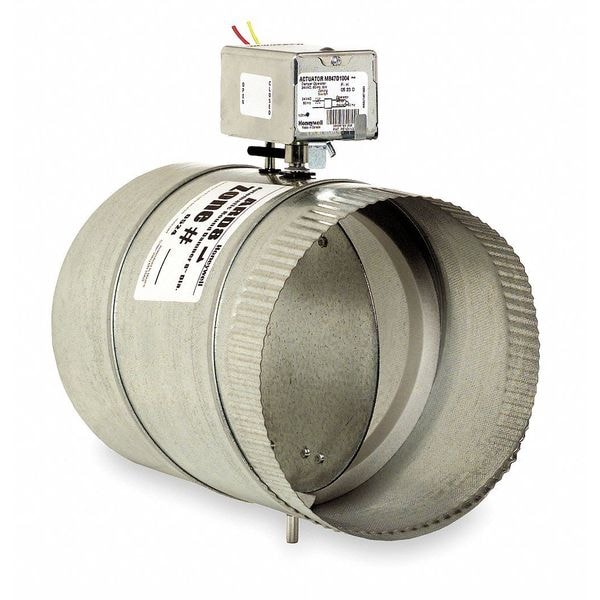

Round Motorized Damper, Dia 5 In
| Item | Zone Control Damper |
|---|---|
| Includes | (12) Mounting Screws; (4) 1-1/2 in Self-Drilling Hex Washer Head Screws; Adhesive Backed Cutout Template |
| Color | Galvanized Steel |
| Dia. (In.) | 5 |
| Connection | 2 Wires |
| Voltage (AC) | 24 |
| Application | Controls Air Flow In Heating And Cooling Systems |
| For Use With | EMM-3UK, EMM-3K, TZ-4K |
| Overall Width | 8-7/8 in |
| Overall Height | 8-7/8 in |
| Switch Action | Not Applicable |
| Free Area | Not Applicable |
| Rough Opening Width | 5 in |
| Frame Material Thickness | Not Applicable |
| Maximum Air Velocity | 175 psi |
| Fusible Link Temperature | Not Applicable |
| Maximum Air Pressure | 175 PSI |
| Flange Width | Not Applicable |
| Damper Type | Dynamic |
| Damper Finish | Plain |
| Frame Less Flange | Not Applicable |
| Rough Opening Shape | Round |
| Electrical Connection | Hardwired |
| Blade Seal Material | Not Applicable |
| Damper Application | Motorized |
| For Duct Shape | Round |
| Number of Panels | Not Applicable |
| Blade Material | Galvanized Steel |
| Airflow Direction | Not Applicable |
| Closure Pressure Rating | Not Applicable |
| Closure Velocity Rating | Not Applicable |
| Mounting Position | Not Applicable |
| Counterbalanced | Not Applicable |
| Flange Type | Not Applicable |
| Jamb Seal Material | Not Applicable |
| Nameplate Voltage | 24V AC |
| Pressure Drop @ 1000 fpm (AMCA 5.2) | Not Applicable |
| Overall Length | 8-3/4 in |
| Rough Opening Diameter | 5 in |
| Rough Opening Length | 5 in |
| Blade Type | Not Applicable |
| Frame Material | Steel |
| Overall Diameter | 5 in |
| Blade Orientation | Not Applicable |
| ACMA Leakage Class | Not Applicable |
| For Nominal Duct Diameter | 5 in |
| Includes Motor | Yes |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
