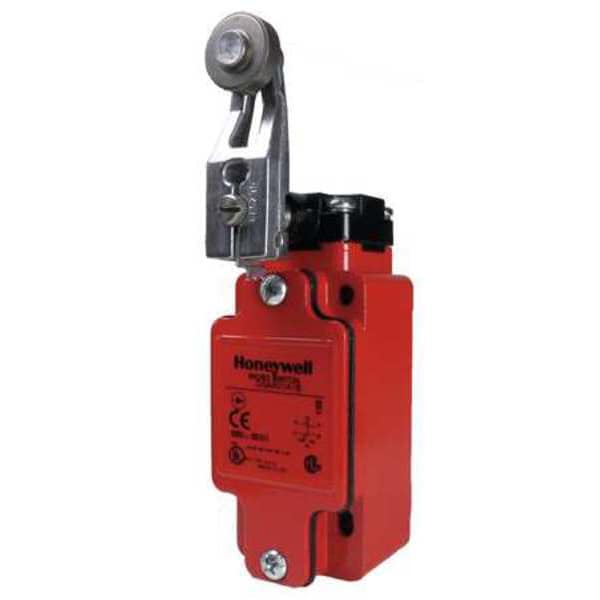

El interruptor de seguridad Honeywell 1NC/1NO Nema 1, 4, 12, 13 es ideal para aplicaciones industriales que requieren un alto nivel de protección. Cuenta con una construcción resistente y confiable para garantizar la seguridad en entornos exigentes.
| Item | Safety Interlock Switch |
|---|---|
| Style | Side Rotary with Fixed Lever |
| Series | GSS |
| Actuator Length | 1-1/2 in |
| AC Contact Rating | 10 A |
| DC Contact Rating | 0.1 to 10 A @ 250 V |
| Solenoid Voltage | Not Applicable |
| Contact Form | 1NO/1NC |
| Connection Type | 1/2 in NPT Conduit |
| Height | 3.23 in |
| Width | 1.65 in |
| Depth | 1.65 in |
| IP Rating | IP67 |
| Operating Temp. Range | -13 to 185 deg F |
| Positive Travel | 55 Degrees |
| NEMA Rating | 1, 12, 13, 4 |
| Movement | Rotation |
| Over Travel | 85 Degrees |
| Conduit Size | 1/2 in NPT |
| Standards | CE, CSA, SIL3, UL Listed |
| Rotation | CW/CCW |
| Contact Material | Silver |
| Body Material | Zinc |
| Description/Special Features | Metal Roller 0.75 in x 0.25 in, EN50041 Body Type, Non Plug-In, Shock 50G per IEC 68-2-27, Vibration 10G per IEC 68-2-26, Expected Mechanical Life 15 Million Operations, FP, OP, OT, PT All to EN50041, Levers May be Attached to the Shaft at 90 Degrees Increments, They May Also be Attached, But Not Keyed, Anywhere on the Shaft |
| Operating Force | 2.9 in-lb Max |
| Pre-travel | 26 Degrees |
| Differential Travel | 12 Degrees |
| Number of Poles | 1 |
| Electrical Connection | 1/2 in NPT Conduit |
| Features | Environmentally Sealed, Red Switch Body |
| Head Action | Spring Return, Standard |
| Connection Size | 1/2 in. NPT |
| Electrical Rating - VAC/DC | 10A 600Vac (Vdc Rated) |
| Operator Configuration | Standard |
| Poles/Contacts | SPDT 1NO 1NC |
| Type | Safety Limit Switch |
| Operating Temperature - min | -13 deg F (-25 deg C) |
| Head/Operator | Side Rotary Roller Lever |
| Operating Temperature - max | 185 deg F (85 deg C) |
| Body Construction | Die Cast Zinc |
| Current Rating - nominal | 10A |
| Rating - NEMA | NEMA 4 |
| Includes Actuating Key | No Actuating Key Included |
| NEMA Enclosure Rating | 12, 1, 13, 4 |
| Hazardous Location Specification | Not Rated |
| Overall Width | 1.65 in |
| Overall Height | 3.23 in |
| Actuating Key Type | Not Applicable |
| Key Hole Location | Not Applicable |
| Overall Depth | 1.65 in |
| Pretravel | 26 Degrees |
| Operating Temperature - Maximum | 185 deg F |
| Overtravel | 85 Degrees |
| Operating Torque | 2.864 in-lb |
| Circuitry Action | Slow Action |
| Operating Temperature - Minimum | -13 deg F |
| Package Quantity | 1 |
