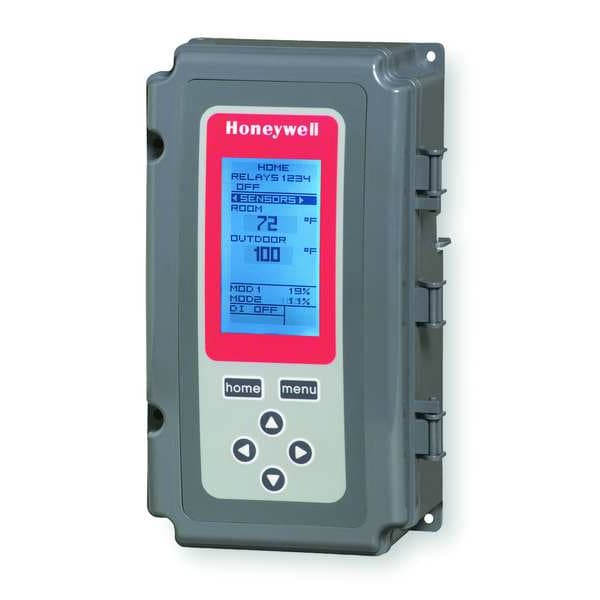

Temperature Control, Close on Rise, Open on Rise, -40 Degrees to 248 Degrees F, SPDT, 24/120/240VAC
| Switch Action | Close on Rise, Open on Rise |
|---|---|
| Voltage | 24/120/240VAC |
| Sensor Type | 50021579-001 |
| Differential | 1 Degrees to 150 Degrees F |
| Display Type | Digital |
| Number of Relay Inputs | 1 |
| Switch Type | SPDT |
| Color | Gray |
| Width | 4-7/16 in |
| Height | 8-3/16 in |
| Control Range | -40 to 248 deg F |
| Item | Temperature Control |
| Includes | 50021579-001 |
| Features | Save Time on Installations with the Easy-to-Use Graphical Interface, Large Display and the Intuitive Programming |
| Depth | 2-15/16 in |
| Voltage Range | 24 to 240V AC |
| Agency Compliance | CE, CUL, IP65, UL |
| Full Load Amps @ 120VAC | 9.8 A |
| Sensing Bulb Length | 2 in |
| Sensing Bulb Dia. | 1/4 in |
| Thermostat Switch Type | SPDT |
| Number of Relay Outputs | 1 |
| Enclosure Type | NEMA 1 |
| Full Load Amps @ 240VAC | 4.9 A |
| For Use With | Cooling, Heating, Refrigeration |
| Number of Switches | 1 |
| Application | Temperature Sensing and Control |
| Number of Stages | Single |
| Contact Rating Resistive @ 120V | 10 A |
| Input Voltage | 120V AC, 240V AC, 24V AC |
| Standards | C-Tick, cUL, UL 60730-1 |
| Mounting | Vertical or Horizontal |
| Display | Digital |
| Type | Electronic Temperature Control |
| Variable Output Voltage | No |
| Minimum Control Temperature | -40 deg F |
| Resistive Load Current @ 120V | 58.8 A |
| Number of Sensors Included | 1 |
| Overall Depth | 3 in |
| NEMA Rating | 1 |
| Horsepower @ 240V AC | 0.5 HP |
| Contact Form | SPDT |
| Number of Sensor Inputs | 1 |
| Horsepower @ 120V AC | 0.5 HP |
| Number of SPDT Outputs | 1 |
| Temperature Control Function | Cool, Heat |
| Resistive Load Current @ 240V | 29.4 A |
| Overall Height | 8-1/8 in |
| Output Reset Type | None |
| Full Load Current @ 120V AC | 9.8 A |
| Housing Color | Gray |
| Power Consumption | 10 VA |
| Number of Time Cycles per Day | 2 |
| Maximum Temperature Differential Setting | 150 deg F |
| IP Rating | IP65 |
| Ambient Humidity | 5% to 95% RH |
| Minimum Temperature Differential Setting | 1 Degrees F |
| Maximum Control Temperature | 248 deg F |
| Overall Width | 4-3/8 in |
| Full Load Current @ 240V AC | 4.9 A |
| Sensing Bulb Diameter | 1/4 in |
| Product Type | Temperature Control |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
