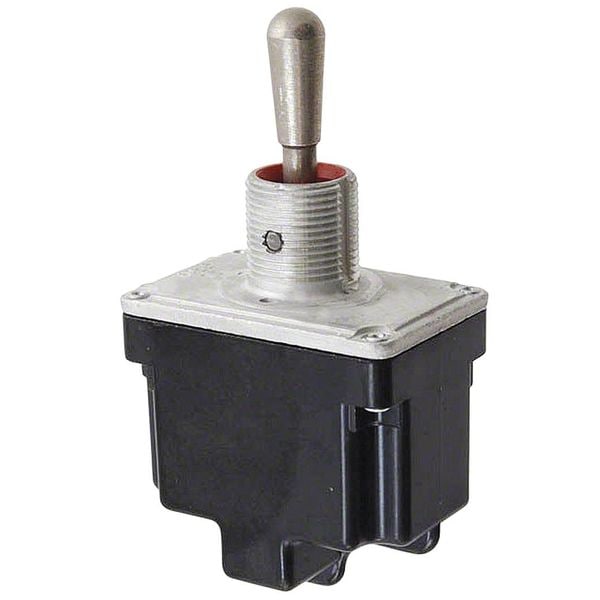

Interruptor basculante, DPDT, 6 conexiones, Encendido/Apagado, 1 hp, 15A @ 277V CA.
| Switch Function | On |
|---|---|
| Contact Form | DPDT |
| HP | 1 hp |
| Actuator Style | Standard Lever |
| Amps | 15A @ 125VAC, 15A @ 250VAC, 15A @ 28VDC |
| Number of Connections | 6 |
| Stem Length | 0.47 in |
| Terminals | Screw |
| Actuator Length | 0.67 in |
| Actuator Color | Silver |
| Stem Dia. and Thread Size | 0.470 in |
| Operating Temp. Range | -85 to 160 deg F |
| Item | Toggle Switch |
| Stem Color | Silver |
| Recommended Use | Aerial and Scissor Lifts, Agriculture and Material-Handling Equipment, Cranes and Construction, Factory-Floor Control Units, Machine Tool Equipment Manufacturers, Truck Mounted Tele-Handlers |
| AC Contact Rating | 15 A @ 125 V, 15 A @ 250 V |
| Includes | Bushing, Case, Cover, Toggle Lever |
| DC Contact Rating | 20 A @ 28 V |
| Standards | CE, CSA, UL Listed |
| Mounting Hole | 1/2 in dia |
| Special Features | Step Base |
| IP Rating | IP67, IP68 |
| Product Type | Toggle Switch |
| Series | NT |
| Mounting Hole Diameter | 0.47 in |
| Overall Width | 0.89 in |
| Stem Diameter | 0.47 in |
| Base Type | Step |
| Terminal Connection Type | Screw Terminals |
| Operating Temperature - Maximum | 160 deg F |
| Actuator Material | Metal |
| Stem Thread Size | 15/32-32 UNS-2A |
| Overall Depth | 1.13 in |
| Horsepower | 1 hp @ 250V AC, 1/2 hp @ 125V AC |
| Operating Temperature - Minimum | -40 deg F |
| NEMA Enclosure Rating | 13, 3, 3R, 4 |
| Overall Height | 2.49 in |
| Resistance Properties | Dust Resistant, Shock Resistant, Watertight, Temperature Resistant, Vibration Resistant |
| Operator Illumination Style | Non-Illuminated |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Metal Actuator Finish | Silver |
| Switch Function Configuration | On |
| Package Quantity | 1 |
