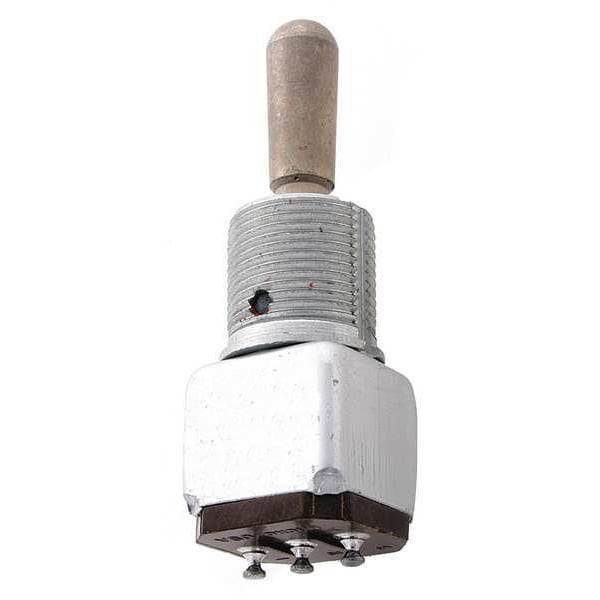

Interruptor basculante (ON)-OFF-(ON) SPDT 5A @ 120V con terminal de soldadura.
| Switch Function | Momentary On/Maintained Off/Momentary On |
|---|---|
| Contact Form | SPDT |
| Actuator Style | Standard Lever |
| Amps | 5A @ 125VAC, 5A @ 30VDC |
| Number of Connections | 3 |
| Stem Length | 0.47 in |
| Terminals | Solder |
| Actuator Length | 0.68 in |
| Stem Dia. and Thread Size | 0.240 in |
| Special Features | Fine Silver Contacts |
| DC Contact Rating | 5 A @ 28 V |
| Operating Temp. Range | -85 to 160 deg F |
| Standards | CE, CSA, MIL-83731, MIL-DTL-83781, UL Listed |
| Mounting Hole | 1/2 in dia |
| Includes | Bushing, Case, Cover, Toggle Lever |
| Stem Color | Silver |
| Item | Toggle Switch |
| AC Contact Rating | 5 A @ 120 V |
| Recommended Use | Applications Requiring Military Qualification |
| Actuator Color | Silver |
| IP Rating | Not Rated |
| Product Type | Toggle Switch |
| Series | TW |
| Metal Actuator Finish | Silver |
| NEMA Enclosure Rating | Not Applicable |
| Resistance Properties | Dust Resistant, Shock Resistant, Vibration Resistant |
| Operating Temperature - Maximum | 160 deg F |
| Stem Diameter | 0.24 in |
| Mounting Hole Diameter | 1/2 in |
| Switch Function Configuration | Momentary On/Off/Momentary On |
| Number of Positions | 3 |
| Number of Poles | 1 |
| Base Type | Not Applicable |
| Operating Temperature - Minimum | -85 deg F |
| Terminal Connection Type | Solder Lug |
| Actuator Material | Metal |
| Operator Illumination Style | Non-Illuminated |
| Package Quantity | 1 |
