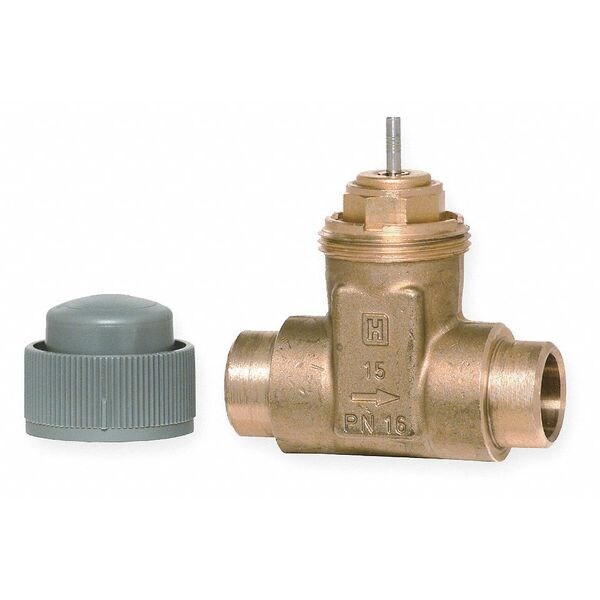

Two-Way Sweat Valve, 1/2 In, 1.2 Cv
| Item | Hydronic Globe Valve |
|---|---|
| Type | 2-Way, Cartridge |
| For Use With | Water or Glycol Solution 50% Max |
| Agency Compliance | CRN |
| Safe Working Water PSI | 240 psi |
| Description/Special Features | For Use With Series 1000 Actuators: M6410, M7410, M6435, M7435 & Mp958 Pneumatic Actuator |
| Max. Water Temp. (Deg. F) | 36 to 248 |
| Includes | Installation Manual |
| Specifications | Long Stroke Allows Wider Range Of Control. Soft Valve Seat Provides Low Leakage Rate. Threaded Plastic Cover/Manual Handle Allows Manual Operation. Easily Installed In Areas Where Space Is Limited. |
| Coefficient of Volume | 1.2 |
| Height (In.) | 3 |
| Connection Type/Size (In.) | Sweat 1/2 |
| Safe Working Steam PSI | 40.5 psi |
| Depth (In.) | 3 |
| Width (In.) | 3/4 |
| Overall Height | 3 in |
| Overall Length | 2-11/32 in |
| Specific Valve Action | Stem Down to Close |
| Overall Depth | 1-3/16 in |
| Operating Temperature - Minimum | 36 deg F |
| Rangeability | 100:1 |
| Operating Temperature - Maximum | 230 deg F |
| Actuator Type | Not Applicable |
| Configuration | Straight-Thru |
| Close-Off Pressure | 174 psi |
| Actuator Control Pressure - Maximum | Not Applicable |
| Actuator Return Action | Not Applicable |
| Cartridge Material | Brass |
| Includes Actuator | Actuator Not Included |
| Valve Action | Normally Open |
| Stem Travel | 1/4 in |
| Port Connection Size | 1/2 in |
| Body Material | Brass |
| Flow Characteristic | Equal Percentage |
| Leakage Rate | 0.01% |
| Port Connection Type | Sweat |
| Stem Material | Stainless Steel |
| For Media | Water-Glycol Solution to 50% |
| Port Connection Gender | Female |
| Coefficient of Volume (Cv) | 1.2 |
| Seat Material | Brass |
| Actuator Input Voltage | Not Applicable |
| Actuator Control Pressure - Minimum | Not Applicable |
| ANSI Rating | ANSI Leakage Class IV |
| Actuator Control Signal | Not Applicable |
| Body Pattern | Two-Way |
| Manufacturer Series | V58 |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
