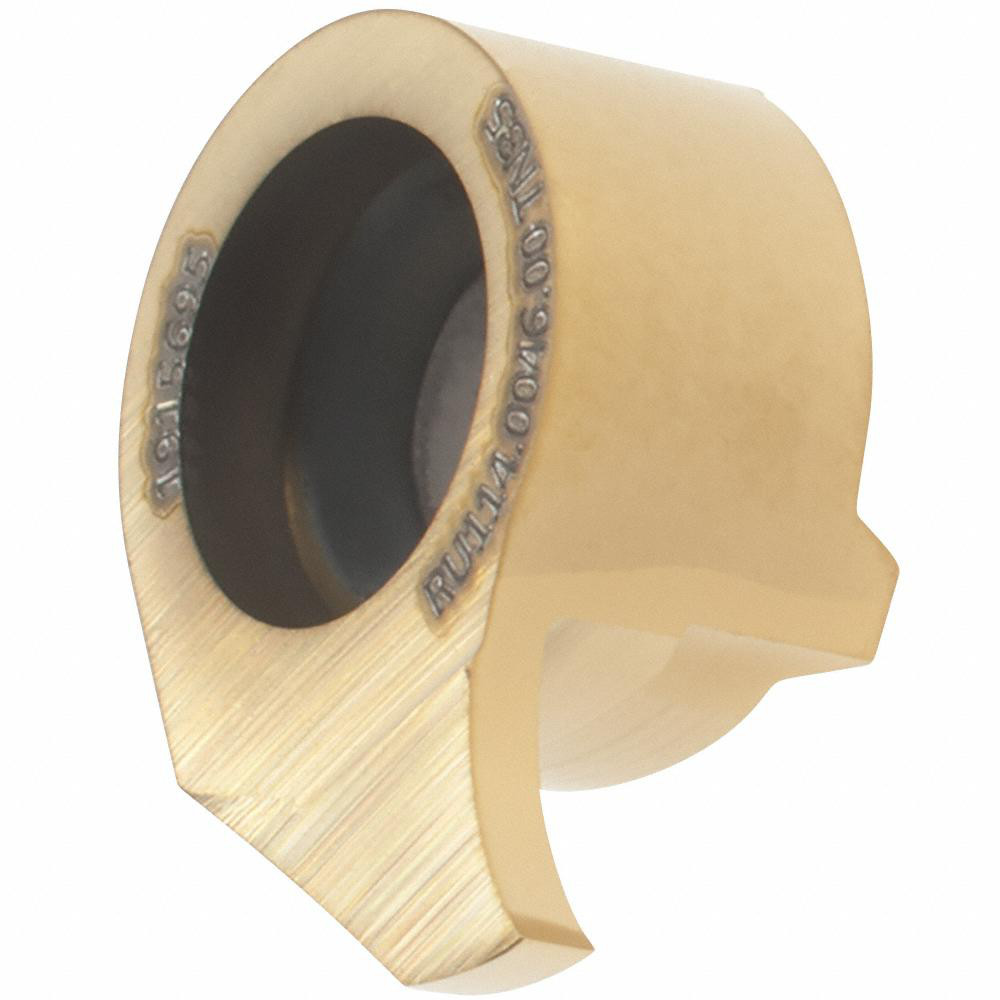

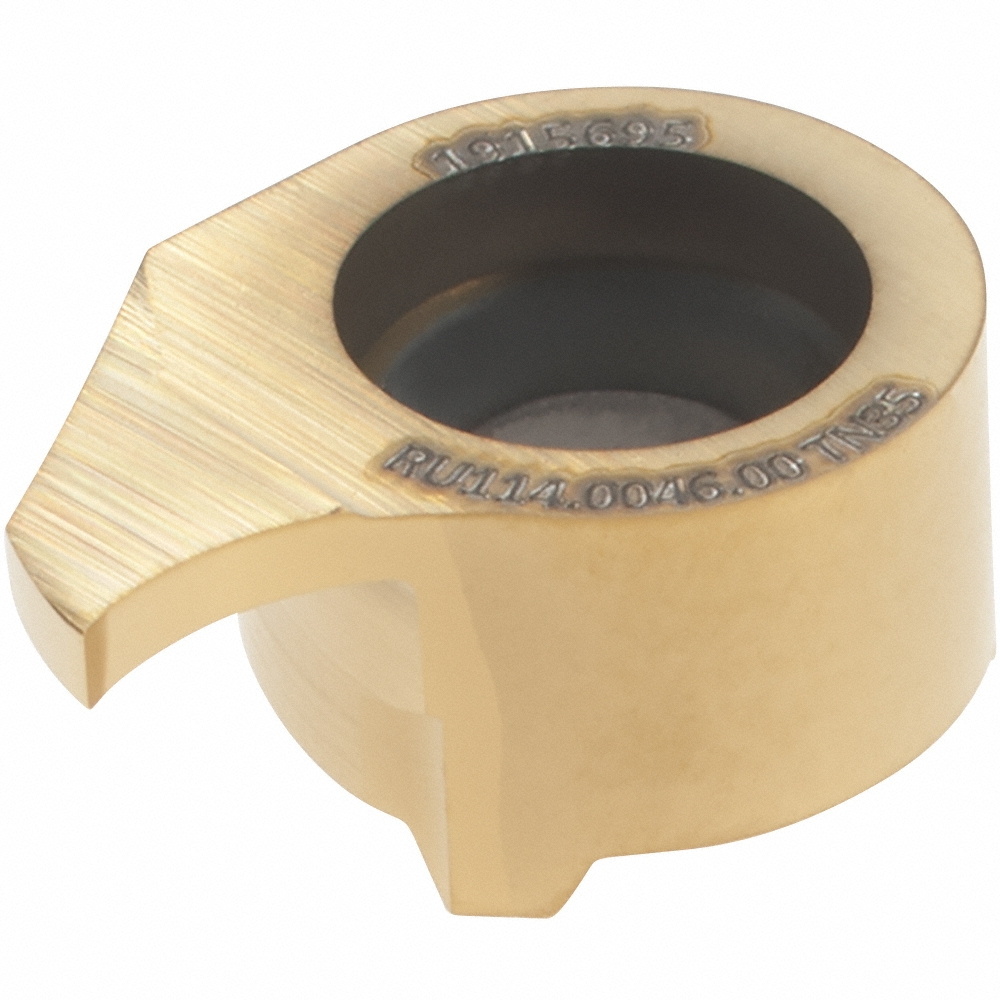

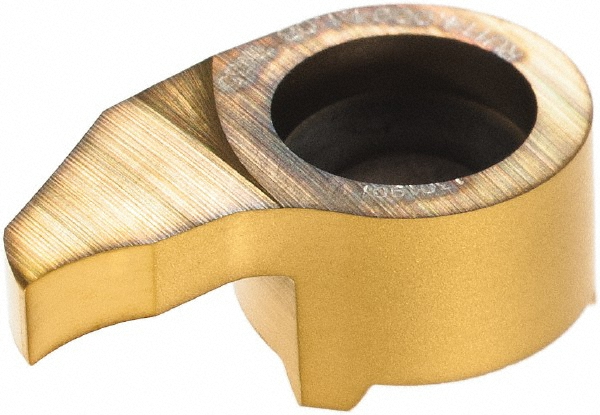

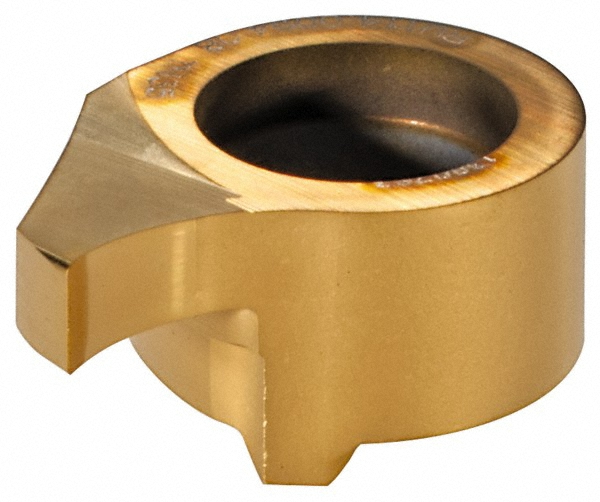

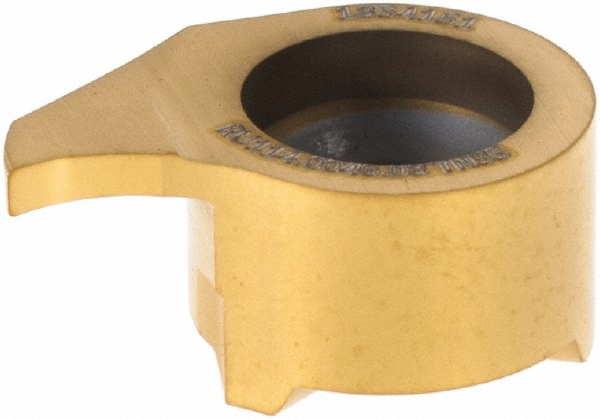

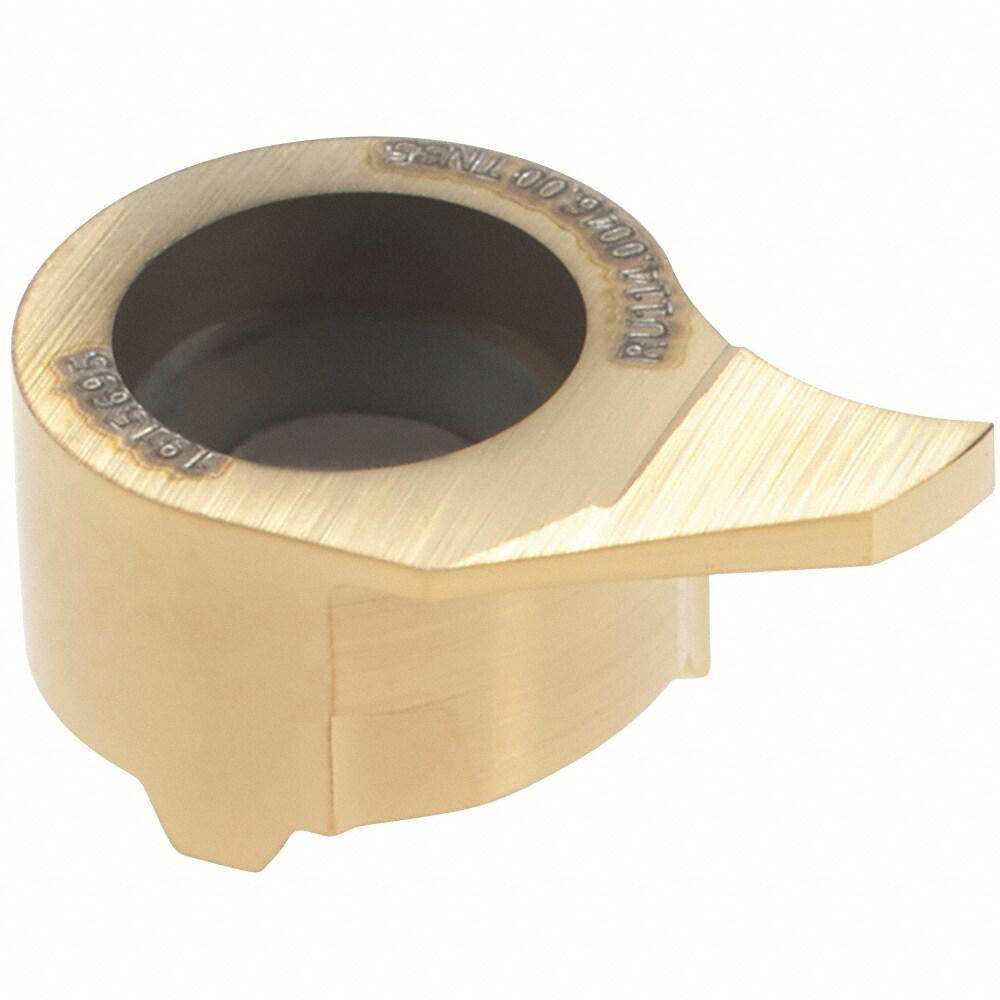

Right Hand, 0.0460" Cutting Width, 0.1570" Max Depth, Series U114
| Insert Style | U114 |
|---|---|
| Insert Size Code | 004600 |
| Cutting Width (Decimal Inch) | 0.0460 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Insert Material | Carbide |
| Manufacturer Grade | TN35 |
| Measurement Type | Decimal Inch |
| Insert Holding Method | Screw |
| Multi-use Tool | No |
| Series | U114 |
| Overall Length (Decimal Inch) | 0.531 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; K; M; N |
| UNSPSC Code | 23242105 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 80571656 |
