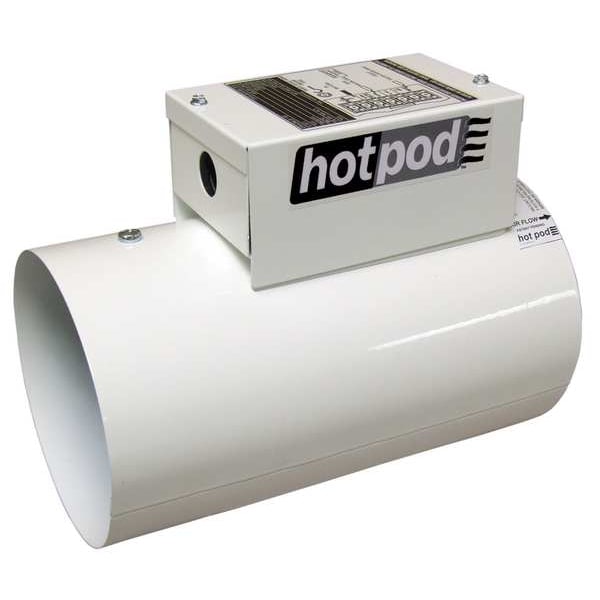

In-line Duct Fan Heater, 210 cfm, 8 in.
| Item | In-line Duct Fan Heater |
|---|---|
| Housing Material | Galvanized Steel |
| Fits Duct Dia. | 8 in |
| Voltage | 120 V |
| Max. Amps | 12 |
| Housing Dia. | 8 in |
| Length | 10 1/2 in |
| Motor RPM | 1,400 RPM |
| Motor Enclosure | Totally Enclosed |
| Height | 10 3/8 in |
| CFM @ 0.125-In. SP | 60 cfm |
| BtuH Output | 4915 / 2457 |
| Width | 8 in |
| Heater Watts | 1440/720 |
| Housing Finish | White Powder Coated |
| Includes | Integrated Control Board, 2 Stage Heat/ 1 Stage Cool Hardwired Low Voltage Thermostat |
| Standards | ETL US/C |
| Max. Inlet Temp. | 115 Degrees F |
| CFM @ 0.000-In. SP | 210 cfm |
| CFM @ 0.100-In. SP | 120 cfm |
| Sones @ 0.500-In. SP @ 5 Ft. | 1.25 sones |
| Flange Width | 8 in |
| Mounting Position | Horizontal |
| Speed Control | No |
| Hz | 60 |
| Frequency | 60 Hz |
| Housing Color | White |
| Airflow @ Static Pressure | 120 cfm to 0.1 in SP, 60 cfm to 1/8 in SP |
| High-Efficiency Motor | No |
| Duct Diameter | 8 in |
| Control Voltage | 120 V |
| Motor IP Rating | None |
| Mounting Orientation | Horizontal |
| Airflow @ 0.000 in SP | 210 cfm |
| Motor Output Power | 720 W, 1,440 W |
| Motor Speed | 1,400 rpm |
| Overall Height | 10-3/8 in |
| Speed Controllable | No |
| Phase | 1 |
| Power Consumption | 720 W, 1,440 W |
| Overall Length | 10-1/2 in |
| Heating Capacity | 2,457 BtuH, 4,915 BtuH |
| Current | 12.0/6.0 A |
| Maximum Inlet Air Temperature | 115 deg F |
| Application | General Purpose |
| Nameplate Voltage | 120V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
