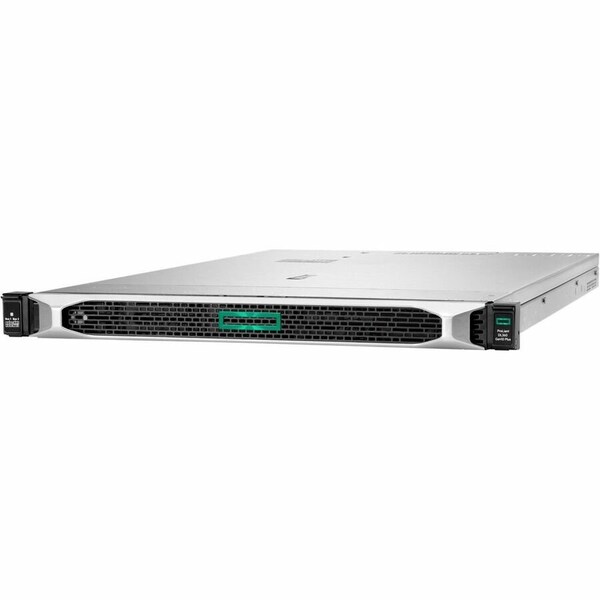

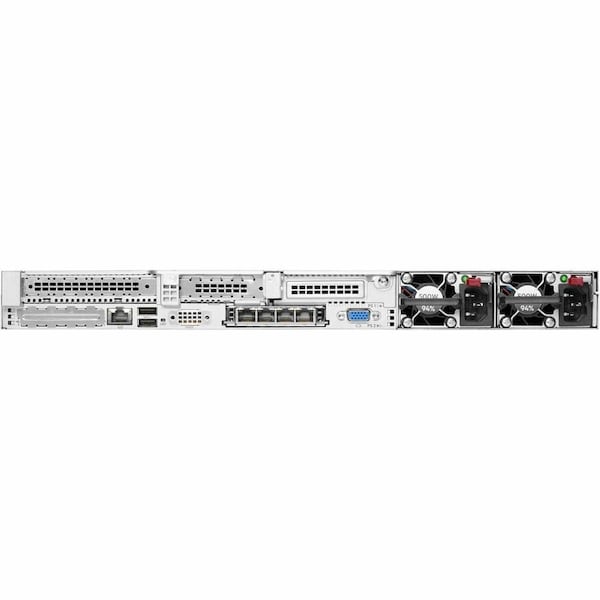

DL360 Gen10+ 4310 1P 32G N
| Item | Server |
|---|---|
| Input Voltage | 230 V AC, 120 V AC |
| Ethernet Technology | Gigabit Ethernet |
| Signal Processing | Registered |
| Hot Swappable Power Supply | Yes |
| Energy Star | Yes |
| Number of SFF Bays | 8 |
| RAID Supported | Yes |
| Processor Type | Xeon Silver |
| Standard Memory | 32 GB |
| PCI Express Details | 2 PCIe: (1) 16 FH, (1) 16 LP |
| Processor Model | 4310 |
| Environmentally Friendly | Yes |
| Remote Management Controller | HPE iLO 5 |
| Security Features | UEFI Secure Boot and Secure Start support Immutable Silicon Root of Trust FIPS 140-2 validation Common Criteria certification Configurable for PCI DSS compliance Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Support for Commercial National Security Algorithms (CNSA) iLO Security Modes Granular control over iLO interfaces Smart card (PIV/CAC) and Kerberos based 2-factor Authentication Tamper-free updates - components digitally signed and verified Secure Recovery - recover critical firmware to known good state on detection of compromised FW Ability to rollback firmware Secure erase of NAND TPM (Trusted Platform Module) Bezel Locking Kit |
| Total Number of USB Ports | 5 |
| Memory Technology | DDR4 SDRAM |
| Plug/Connector Type | C13, C14 |
| Number of Occupied Memory Slots | 1 |
| Number of Total Expansion Bays | 9 |
| Redundant Power Supply | Yes |
| Processor Generation | 3rd Gen |
| Error Checking | ECC |
| Rack Height | 1U |
| Maximum Memory Supported | 2 TB |
| Processor Speed | 2.1 GHz |
| Controller Model | P408i-a SR Gen10 |
| Number of USB 3.0 Ports | 5 |
| Package Contents | ProLiant DL360 G10 Plus Server Easy Install Rail Kit 6-Foot IEC C-13/C-14 Jumper Cord |
| Solid State Drive Interface | Serial ATA/600 |
| Controller Type | 12Gb/s SAS |
| Number of Internal 2.5" Bays | 8 |
| Operating System Supported | SUSE Linux Enterprise Server 12 SP5, Windows Server 2019 Essentials, Windows Server 2019 Datacenter, Windows Server 2019 Standard, Ubuntu 20.04 LTS x64, Oracle Linux 7.9, Windows Server 2022 Datacenter, Oracle Linux 8.2, Oracle Linux, Windows Server 2022 Essentials, Windows Server 2016 Datacenter, Windows Server 2016 Essential, Red Hat Enterprise Linux 7.9, Windows Server 2022 Standard, Windows Server 2016 Standard, Red Hat Enterprise Linux 8.2, Hyper-V, SUSE Linux Enterprise Server 15 SP2 |
| Intel Optane Memory Ready | Yes |
| Number of Processors Supported | 2 |
| Number of Network (RJ-45) Ports | 4 |
| VGA | Yes |
| Graphics Memory Capacity | 16 MB |
| Width | 17.1 in |
| Number of Power Supplies Installed | 2 |
| Hot Swappable Bays | Yes |
| Height | 1.7 in |
| Network (RJ-45) | Yes |
| Cache | 18 MB |
| Maximum Power Supply Wattage | 800 W |
| Number of Power Supplies Supported | 2 |
| Solid State Drive Configuration | (2) 480GB |
| Total Solid State Drive Capacity | 960 GB |
| Number of Processors Installed | 1 |
| Total Number of Expansion Slots | 2 |
| Chipset Model | C621A |
| Number of Media Drive Bays | 1 |
| Energy Efficiency Certification | ENERGY STAR 4.0 |
| Number of VGA Ports | 1 |
| Power Source | Power Supply |
| Processor Core | Dodeca-core |
| Remote Management | Yes |
| Depth | 29.2 in |
| Series | DL360 G10 Plus |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
