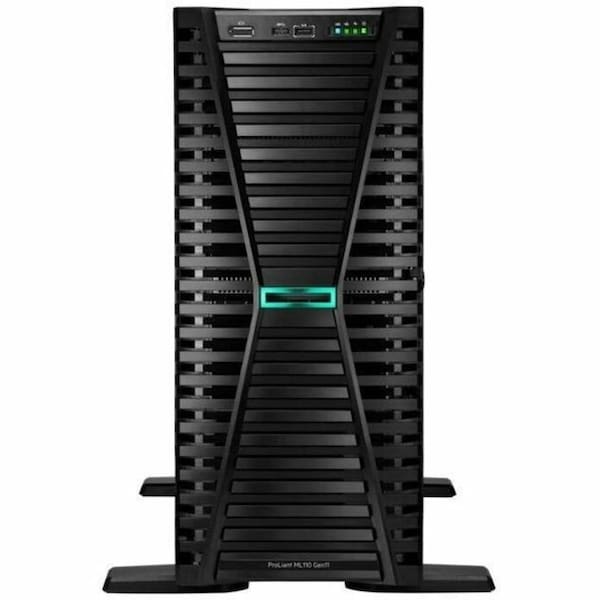

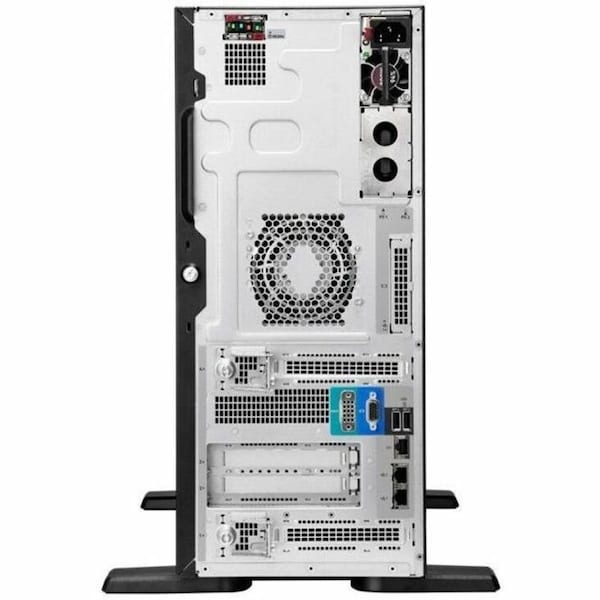

ML110 G11 4410Y MR408i-o A
| Item | Server |
|---|---|
| Standards | ACPI 6.4-Compliant PCIe 5.0-Compliant WOL Support Microsoft® Logo certifications Support for Microsoft Secure Code PXE Support VGA/Display Port USB 3.2 Gen1 Compliant USB 2.0-Compliant OCP 3.0 SFF NIC Support OCP 3.0 SFF Storage Support Embedded TPM Support Energy Star SMBIOS 3.4 UEFI 2.7 UEFI Class 3 (Unified Extensible Firmware Interface Forum) Redfish API IPMI 2.0 Advanced Encryption Standard (AES) Triple Data Encryption Standard (3DES) SNMP v3 TLS 1.2 DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP) DMTF Redfish support for SecureBoot Key Management ACPI DSM Drive LED Management Memory Page Retire Support Retire old VMware Secure Boot Key MCTP I3C Engine APML Active Directory v1.0 ASHRAE A3/A4 |
| Height | 18.2 in |
| Input Voltage | 230 V AC, 120 V AC |
| Width | 7.7 in |
| Depth | 23.1 in |
| Total Number of USB Ports | 5 |
| Environmentally Friendly | Yes |
| Number of Power Supplies Installed | 2 |
| Network (RJ-45) | Yes |
| Total Solid State Drive Capacity | 960 GB |
| Hot Swappable Bays | Yes |
| Processor Model | 4410Y |
| Chipset Model | C741 |
| Standard Memory | 32 GB |
| Power Source | Power Supply |
| Rack Height | 4.5 U |
| Number of Total Expansion Bays | 10 |
| Cache | 30 MB |
| Controller Model | MR408i-o |
| Plug/Connector Type | C14, C13 |
| Controller Type | Serial ATA, Serial Attached SCSI |
| Maximum Memory Supported | 1 TB |
| Processor Type | Xeon Silver |
| Number of Processors Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Error Checking | ECC |
| Total Number of Expansion Slots | 2 |
| DisplayPort | Yes |
| Maximum Power Supply Wattage | 800 W |
| Number of External 5.25" Bays | 1 |
| Number of SFF Bays | 8 |
| Graphics Memory Capacity | 16 MB |
| Signal Processing | Registered |
| Number of Solid State Drives | 2 |
| Number of Media Drive Bays | 1 |
| Solid State Drive Configuration | (2) 480GB |
| PCI Express Details | PCIe Gen5: 2 slots (x16), upgradable to 4 slots (x16); OCP3 with PCIe Gen5: 1 slot (x16) |
| Processor Core | Dodeca-core |
| RAID Supported | Yes |
| Energy Star | Yes |
| Memory Technology | DDR5 SDRAM |
| Remote Management | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Number of USB 2.0 Ports | 1 |
| Remote Management Controller | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced and HPE OneView Advanced (require licenses) |
| Number of DisplayPorts | 1 |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Redundant Power Supply | Yes |
| Number of Internal 2.5" Bays | 8 |
| Processor Speed | 2 GHz |
| Number of Processors Supported | 1 |
| Number of Occupied Memory Slots | 1 |
| Solid State Drive Interface | Serial ATA, 600 |
| Number of VGA Ports | 1 |
| Processor Generation | 4th Gen |
| Number of Power Supplies Supported | 2 |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 |
| Series | ML110 G11 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
