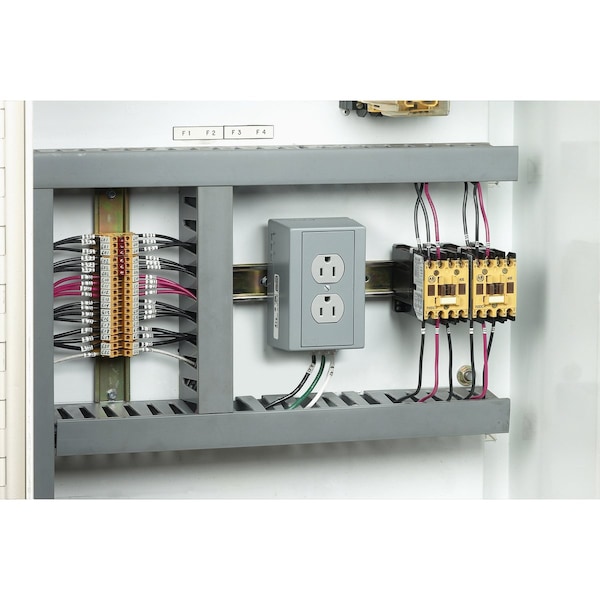

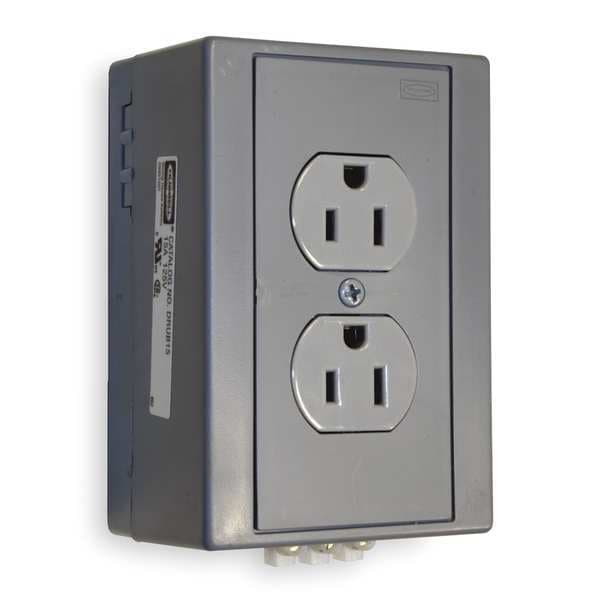

Receptáculo Duplex de riel DIN de 15A 125VAC 5-15R color gris.
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Industrial |
| Mounting Type - Plugs and Receptacles | Panel |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Number of Gangs | 1 |
| Outlet Type | Duplex |
| Item | DIN Rail Receptacle |
| Color | Gray |
| Weather Resistant | No |
| Material | Plastic |
| Phase | Single |
| Corrosion Resistant | No |
| Wiring Method | Side |
| NEMA Configuration | 5-15 |
| Sub-Category | Duplex Receptacles |
| Mounting Type | Panel |
| Amps | 15 |
| Voltage | 125VAC |
| Amps - Plugs and Receptacles | 15 |
| Wiring Method - Plugs and Receptacles | Side |
| Number of Wires | 3 |
| Power Indicator | No |
| HP | 1/2 hp |
| Standards | CSA Certified, UL Listed |
| Number of Poles | 2 |
| Color - Plugs and Receptacles | Gray |
| Type | Standard Receptacle |
| Surge Protection | No |
| Overall Depth | 2-1/2 in |
| Receptacle Type | Duplex |
| NEMA Receptacle Configuration | 5-15R |
| Grounding | Grounded |
| Connection Orientation | Straight |
| Current Rating | 15 A |
| Polarized | Yes |
| Mount Type | Surface |
| Flange Type | Flanged |
| Voltage Rating | 125 V |
| AFCI | No |
| GFCI | No |
| Market | Industrial |
| Hub Type | Feed Through |
| NEMA Enclosure Rating | 1 |
| Includes Mounting Hardware | Yes |
| Minimum Wire Size | 14 AWG |
| Horsepower Rating | 0.5 HP |
| Housing Color | Gray |
| Housing Material | Plastic |
| Maximum Wire Size | 12 AWG |
| Shrouded | No |
| Cover Type | No Cover |
| Includes | Mounting Hardware |
| Grade | General Use |
| Device Rating | 15A, 125V |
| Certifications | CSA Certified, UL Listed |
| DRUB Mounting | Vertical |
| DIN Rail Utility Box Variety | Complete Unit |
| Device Color | Gray |
| Package Quantity | 1 |
