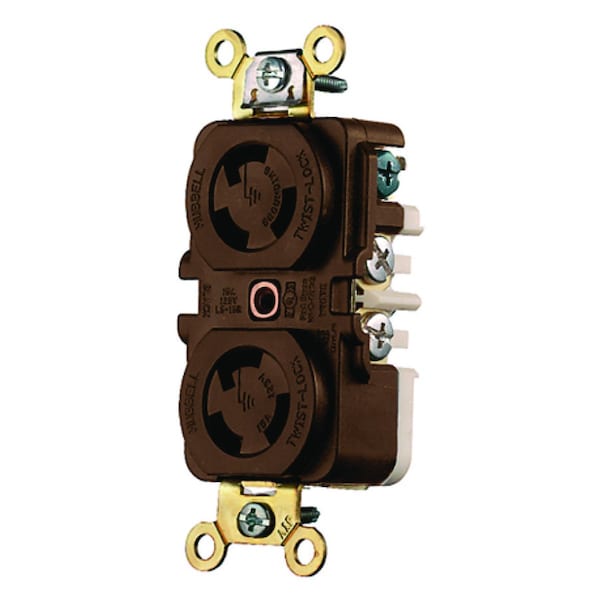

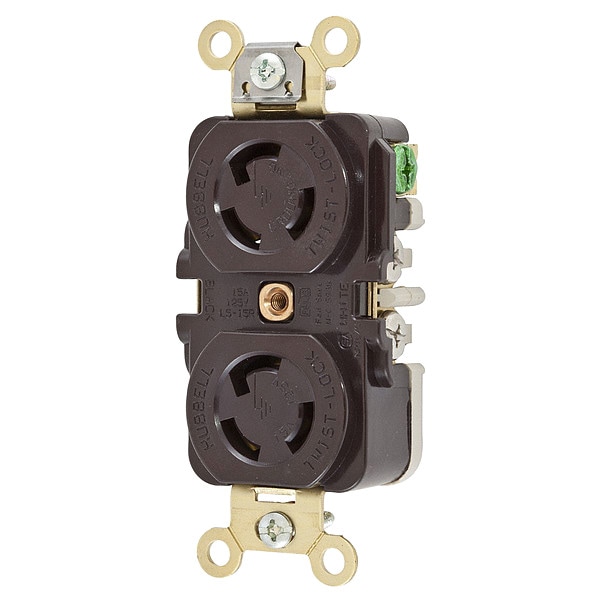

Receptáculo dúplex con bloqueo de 15A, 2 polos 3 cables, 125VAC L5-15R BN.
| Item | Duplex Locking Receptacle |
|---|---|
| NEMA Configuration | L5-15 |
| Voltage | 125V AC |
| Amps | 15 |
| Color | Brown |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| NEMA Rating | 12, 4X |
| HP | 0.5 |
| Mounting Type | Flush Mount |
| Material | Nylon |
| Standards | CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| Grade | Industrial |
| IP Rating | IP20 |
| Special Features | With Cover |
| NEMA Enclosure Rating | 1 |
| For Location | Indoor |
| Mount Type | Flush |
| Cover Type | No Cover |
| Flange Diameter | Not Applicable |
| Current Rating | 15 A |
| Voltage Rating | 125V AC |
| Minimum Operating Temperature | -40 Degrees C |
| Maximum Wire Size | 10 AWG |
| Includes Mounting Hardware | Yes |
| Wire Connection Type | Screw Terminals |
| Market | Industrial |
| Minimum Wire Size | 18 AWG |
| UL 94 Flammability Rating | HB |
| For Environment | Dry |
| Horsepower Rating | 0.5 HP |
| Flange Height | Not Applicable |
| Housing Material | Thermoplastic |
| Flange Width | Not Applicable |
| Shrouded | No |
| Includes | Mounting Strap |
| Polarized | Yes |
| Grounding | Grounded |
| Maximum Operating Temperature | 75 deg C |
| Number of Gangs | 1 |
| Connection Orientation | Straight |
| NEMA Receptacle Configuration | L5-15R |
| AFCI | No |
| Contact Material | Brass |
| Housing Color | Brown |
| Flange Type | Non-Flanged |
| Resistance Properties | Impact Resistant |
| Spring Material | .031" Brass |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Flammability | HB or better per UL94/CSA 22.2 No.0.17 |
| Lock Type | Twist-lock |
| Base Material | RTP |
| Terminal Designations | Terminals identified in accordance with UL 498 |
| Weight (Lbs.) | 0.25 |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Wire Size | 15A #14 AWG |
| Package Quantity | 1 |
