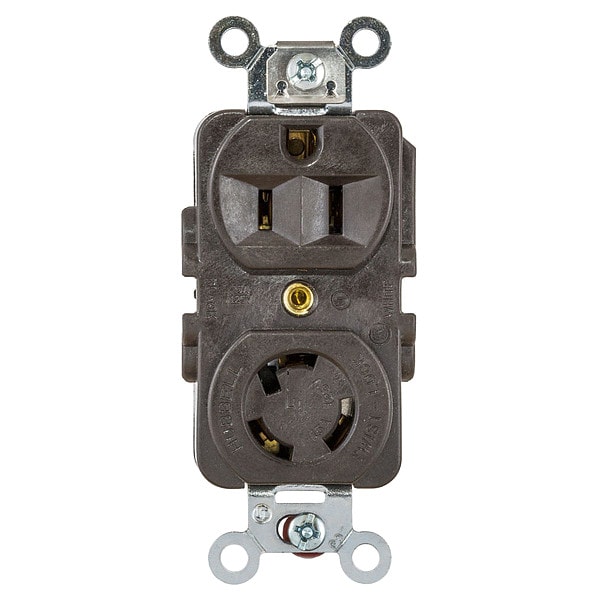

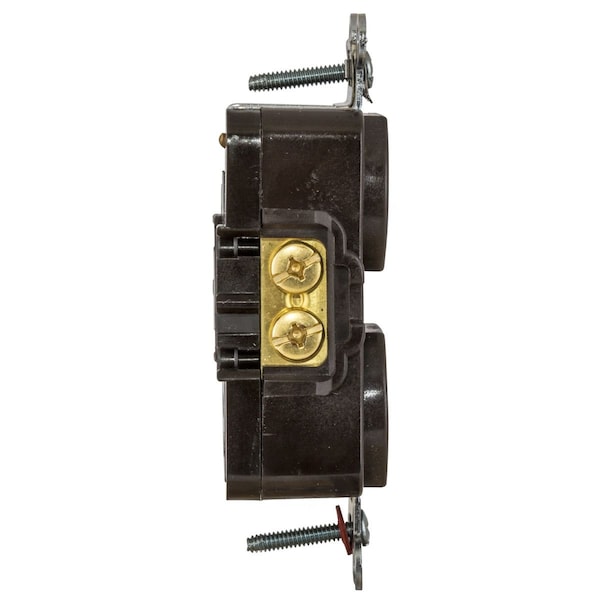

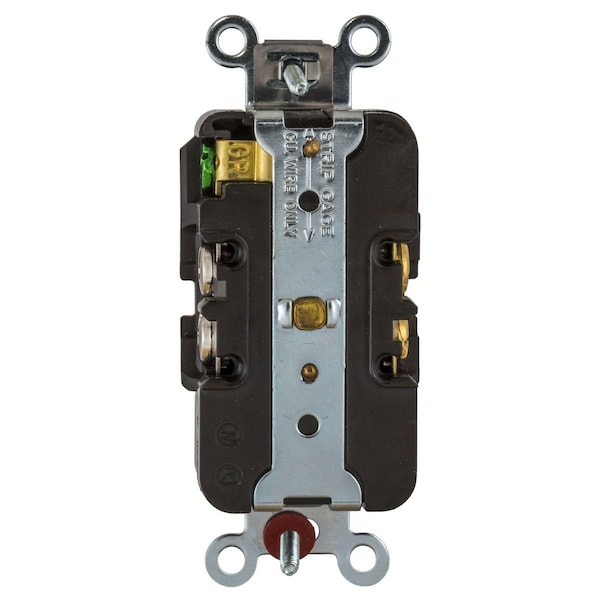

15A Duplex Locking Receptacle 2P 3W 125VAC L5-15R BN
| Item | Duplex Locking Receptacle |
|---|---|
| NEMA Configuration | L5-15, 5-15 |
| Voltage | 125V AC |
| Amps | 15 |
| Color | Brown |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | 1 |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| NEMA Rating | 12, 4X |
| Material | Valox |
| Standards | CSA Certified C22.2 No. 42 File 285, UL 498 File E2186 |
| IP Rating | 20 |
| Grade | Industrial |
| Mounting Type | Flush Mount |
| Special Features | With Cover |
| HP | 0.5 |
| UL 94 Flammability Rating | V-2 |
| Maximum Wire Size | 10 AWG |
| Minimum Wire Size | 14 AWG |
| NEMA Receptacle Configuration | 5-15R, L5-15R |
| For Environment | Dry |
| Mount Type | Flush |
| For Location | Indoor |
| Minimum Operating Temperature | -40 Degrees C |
| Wire Connection Type | Screw Terminals |
| Housing Material | Valox |
| Voltage Rating | 125V AC |
| Current Rating | 15 A |
| Maximum Operating Temperature | 75 deg C |
| Horsepower Rating | 0.5 HP |
| Grounding | Grounded |
| Housing Color | Brown |
| Temp. Rise | Max 30A Deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Wire Size | #14-#10 AWG copper stranded or solid conductor only |
| Flammability | UL 94 V-2 or better |
| Operating Temp. | Maximum continuous 75A Deg C; minimum -40A Deg C (w/o impact) |
| Terminal Designations | Terminals identified in accordance with UL 498 and CSA |
| Weight (Lbs.) | 0.3 |
| Base Material | RTP |
| Lock Type | Combination-face-duplex-receptacles |
| Package Quantity | 1 |
