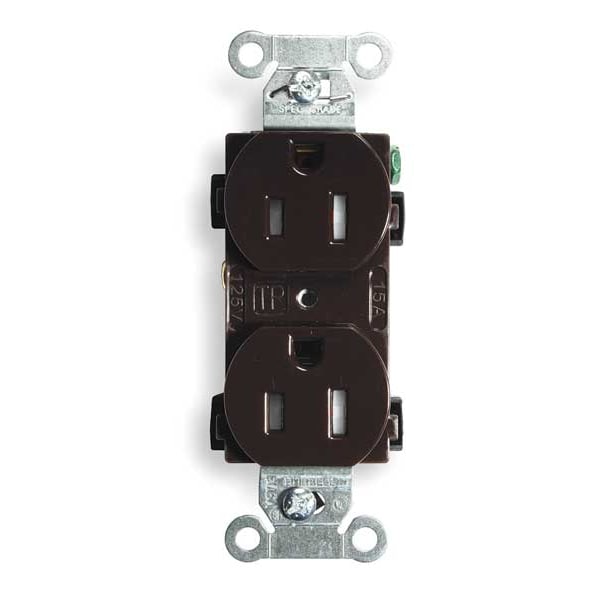

15A Duplex Receptacle 125VAC 5-15R BN
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Commercial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Surge Suppression | No |
| Tamper Resistant | Yes |
| Item | Traditional Duplex |
| Voltage | 125VAC |
| Description | Grounding |
| Outlet Type | Duplex |
| Number of Gangs | 1 |
| NEMA Configuration | 5-15 |
| Color - Plugs and Receptacles | Brown |
| Power Indicator | No |
| Weather Resistant - Plugs and Receptacles | No |
| Sub-Category | Duplex Receptacles |
| HP | 1/2 hp |
| Weather Resistant | No |
| Material | Nylon |
| Amps - Plugs and Receptacles | 15 |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Standards | CSA Certified C22.2, NEMA WD-6, UL 498 File E2186 |
| Wiring Method | Back, Side |
| Amps | 15 |
| Color | Brown |
| Phase | Single Phase |
| Mounting Type | Flush |
| Number of Poles | 2-Pole |
| Corrosion Resistant | No |
| Number of Wires | 3-Wire |
| Dimensions | 3.3 in x 1.58 in x 1.16 in |
| Connectivity | Back and Side Wired |
| Nema Rating | 5-15R |
| Voltage Rating | 125 V |
| Brand | Hubbell Wiring Device-Kellems |
| Style | Smooth Face |
| Application | Commercial Specification Grade |
| Display Size | Standard Sized Product |
| Amperage | 15 A |
| Mounting Hardware Material | Screw Mounting |
| Type | Tamper Resistant |
| Series | Commercial Specification Grade |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Current Rating | 15 A |
| Wire Size | #14 AWG to #10 AWG |
| Dielectric Strength | Withstands 2,000V minimum |
| Environmental Rating | Indoor Dry Unless Protected By Additional Means |
| Maximum Horsepower | 0.5 |
| Carton Quantity | 10 |
| Wattage | 1875 W |
| Shrouded | No |
| Includes Mounting Hardware | Yes |
| Includes | Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover |
| Flange Type | Non-Flanged |
| Minimum Wire Size | 14 AWG |
| Grade | Federal Specification |
| Market | Commercial, Industrial |
| For Location | Indoor |
| Horsepower Rating | 0.5 HP |
| Face Plate Height | 2.7 in |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40 deg F |
| Housing Material | Nylon |
| Resistance Properties | Tamper Resistant |
| GFCI | No |
| Cover Type | No Cover |
| Connection Orientation | Straight |
| Mount Hole Center-to-Center Height | 3.3 in |
| Grounding | Grounded |
| Wire Connection Type | Screw Terminals |
| Face Plate Width | 1.3 in |
| AFCI | No |
| Surge Protection | No |
| UL 94 Flammability Rating | V-2 |
| Maximum Operating Temperature | 167 deg F |
| Receptacle Type | Duplex |
| Contact Material | Brass |
| NEMA Enclosure Rating | 1 |
| NEMA Receptacle Configuration | 5-15R |
| Overall Depth | 1.2 in |
| Polarized | Yes |
| Mount Type | Flush |
| Housing Color | Brown |
| Flammability | UL 94 V2. |
| Poles and Wires | 2 Pole, 3-Wire Grounding |
| Power Contacts Material | .030" Brass |
| Device Color | Brown |
| Mounting Screw Material | Steel-Zinc Plated |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Auto Ground Clip Material | Stainless Steel |
| Other Available Colors | Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black |
| Receptacle Grade | Specification Grade Commercial Series, Tamper Resistant |
| Terminal Accommodation | #14-#10 AWG copper stranded or solid conductor only |
| Standard | NEMA |
| Rating | 15A, 125V |
| Dielectric Voltage | Withstands 2,000V minimum |
| Face Shape | Traditional |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Base Material | Nylon |
| Current Interrupting | Certified for current interrupting at full rated current |
| Mounting Strap Material | Steel |
| Horsepower | 0.5 |
| Certification | UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285. |
| Receptacle Style | Duplex |
| NEMA No. | 5 to 15 R |
| Top Material | Nylon |
| Package Quantity | 1 |
