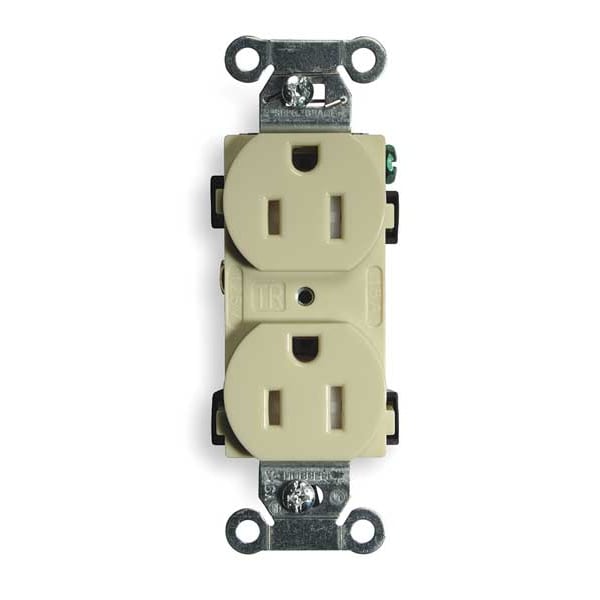

15A Duplex Receptacle 125VAC 5-15R IV
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Commercial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Surge Suppression | No |
| Tamper Resistant | Yes |
| NEMA Configuration | 5-15 |
| Sub-Category | Duplex Receptacles |
| Weather Resistant - Plugs and Receptacles | No |
| Outlet Type | Duplex |
| Number of Poles | 2 |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Power Indicator | No |
| HP | 1/2 hp |
| Item | Receptacle |
| Color - Plugs and Receptacles | Ivory |
| Amps - Plugs and Receptacles | 15 |
| Material | Nylon |
| Wiring Method | Back, Side |
| Standards | CSA Certified C22.2, NEMA WD-6, UL 498 File E2186 |
| Corrosion Resistant | No |
| Mounting Type | Flush |
| Weather Resistant | No |
| Phase | Single |
| Amps | 15 |
| Color | Ivory |
| Number of Gangs | 1 |
| Description | Grounding, Smooth |
| Number of Wires | 3 |
| Voltage | 125VAC |
| Type | Duplex |
| Current Rating | 15 A |
| Contact Material | Brass |
| Maximum Operating Temperature | 167 deg F |
| Receptacle Type | Duplex |
| Polarized | Yes |
| Resistance Properties | Tamper Resistant |
| Mount Type | Flush |
| Housing Color | Ivory |
| Mount Hole Center-to-Center Height | 3.3 in |
| Housing Material | Nylon |
| NEMA Enclosure Rating | 1 |
| Wire Connection Type | Screw Terminals |
| Flange Type | Non-Flanged |
| For Location | Indoor |
| Cover Type | No Cover |
| Connection Orientation | Straight |
| Face Plate Width | 1.3 in |
| AFCI | No |
| NEMA Receptacle Configuration | 5-15R |
| Grade | Federal Specification |
| UL 94 Flammability Rating | V-2 |
| Includes Mounting Hardware | Yes |
| Shrouded | No |
| Maximum Wire Size | 10 AWG |
| Includes | Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover |
| Surge Protection | No |
| Market | Commercial, Industrial |
| Overall Depth | 1.2 in |
| Voltage Rating | 125 V |
| GFCI | No |
| Grounding | Grounded |
| Horsepower Rating | 0.5 HP |
| Minimum Operating Temperature | -40 deg F |
| Face Plate Height | 2.7 in |
| Minimum Wire Size | 14 AWG |
| NEMA No. | 5 to 15 R |
| Amperage | 15 A |
| Receptacle Style | Duplex |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Power Contacts Material | .030" Brass |
| Flammability | UL 94 V2. |
| Other Available Colors | Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black |
| Certification | UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285. |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Mounting Strap Material | Steel |
| Poles and Wires | 2 Pole, 3-Wire Grounding |
| Auto Ground Clip Material | Stainless Steel |
| Standard | NEMA |
| Horsepower | 0.5 |
| Device Color | Ivory |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current |
| Face Shape | Traditional |
| Dielectric Voltage | Withstands 2,000V minimum |
| Top Material | Nylon |
| Terminal Accommodation | #14-#10 AWG copper stranded or solid conductor only |
| Base Material | Nylon |
| Receptacle Grade | Specification Grade Commercial Series, Tamper Resistant |
| Mounting Screw Material | Steel-Zinc Plated |
| Rating | 15A, 125V |
| Current Interrupting | Certified for current interrupting at full rated current |
| Package Quantity | 1 |
